Feature
• Accurate Target Aiming: MPR-V5 Etched Reticle with 0.1 MIL Center Dot Enables Precise Ranging and Quick Target Acquisition
• Bright & Clear Imaging: Fully Multi-Coated Lens Delivers Bright, Clear Images with Side Focus from 10 Yards for Improved Accuracy
• Extended Adjustment Control: 30mm Tube with Precise 1/10 MIL Clicks and 14.5 MIL Travel Provides Accurate and Repeatable Dialing
• Compact Handling: 294mm / 11.6in Short Length Design Keeps Setup Lightweight and Well-Balanced Without Adding Extra Bulk
• Secure Turret Control: Zero Stop Allows Fast Return to Pre-Set Zero While Turret Lock Prevents Unintended Adjustments During Use
Reticle

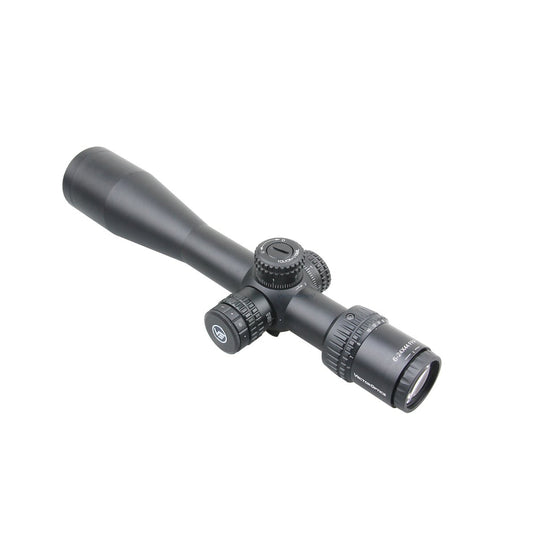

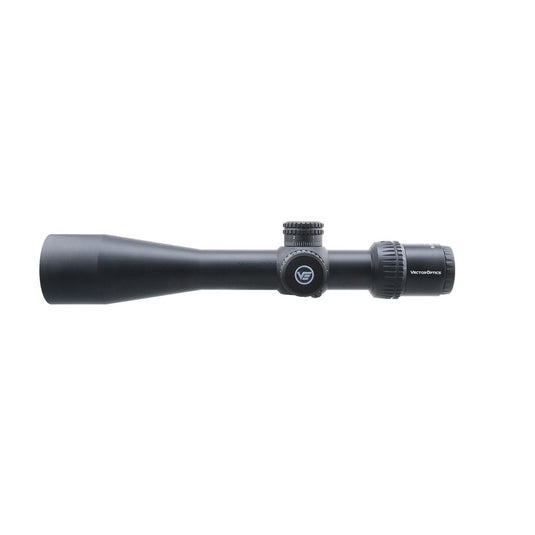

Veyron 6-24x44IR FFP Break Barrel Air Rifle Scope (SCFF-37)
Scenario: Field Target Shooting, Small Game Hunting
· For ranging and fast target acquisition
· Cascading dot for a 10 m.p.h crosswind
· 0.1 MIL center dot for precise aiming
· 0.5 MIL hashmark increment
· BDC for .223 zero @ 200yds and .308 zero @100yds
Optical Performance
|
Level |
Product |
Glass Type |
Coating System |
Imaging |
|||
|
LaREE HD Lens |
German Shott HT Lens |
ED |
VePRO FMC |
FMC |
|||
|
Top |
Continental 8x 10x |
√ |
√ |
√ |
√ |
|
crystal-clear, bright, vivid |
|
Advanced |
Continental 6x |
√ |
√ |
|
√ |
|
crystal-clear, bright |
|
Upgraded |
Tauron 8x |
√ |
|
√ |
|
√ |
clear, vivid |
|
Basic |
Tauron 4x 6x, Orion, Veyron GEN II |
√ |
|
|
|
√ |
clear |
|
/ |
Others |
|
|
|
|
√ |
|
For more information on our optical glass, please visit our blog.
Specification
See our Terminology Guide for detailed explanations of each specification.
|
Magnification |
6-24x |
|
Objective Lens Dia |
44 mm |
|
Focal Plane |
First Focal Plane |
|
Eye Relief |
90-85 mm |
|
Lens Coating |
Fully Multi-Coated |
|
Linear Field of View @ 100 yd |
17.5-4.3 ft @ 100 yards |
|
Linear Field of View @ 100 m |
5.8-1.4 m @ 100 meters |
|
Angular Field of View |
3.3-0.8° |
|
Reticle |
MPR-V5 |
|
Tube Dia |
30 mm |
|
Side Focus |
10 yards to Infinity |
|
Click Value |
1/10 MIL |
|
Turret Function |
Zero Reset, Turret Lock |
|
Elevation Adjustment Range |
15 MIL |
|
Windage Adjustment Range |
14.5 MIL |
|
Diopter Compensation |
-2 to +2 |
|
Illumination Setting |
6-Gear |
|
Battery Type |
CR2032 |
|
Waterproof |
IPX4 |
|
Fogproof |
Nitrogen Filled |
|
Shockproof |
750 G |
|
Housing Material |
6061-T6 Aluminum Alloy |
|
Finish |
Matte Black |
|
Length |
294 mm / 11.6 in |
|
Weight |
585 g / 20.6 oz |
|
Items in the Package |
One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Shade & Cleaning Cloth, etc. |
Compatible Gun Type
For Field Target Shooting: FX Impact / Daystate / Walther LGU, HW97 / HW100, etc.
For Small Game Hunting: FX Impact (.22 / .25 / .30), Walther / HW40, Ruger 10/22 (.22LR), Barra / HW, CZ 457 (.22LR), Tikka T1x (.22LR), etc.
Video
Some of you may laugh, just read till the end.
I bought this scope to mount on a Walther LGV from the 1960's that I am setting up to compete in Indoor FT or German Rules FT. (picture)
These are variations of the FT sport, one is shot indoor at ranges between 10 yards and 22 yards. Targets are FT targets that have 'holes' through which the pellet must pass to bring down the target.
For the indoor game, holes are really small.
For the German rules, that is played out to 44 yards, the holes are more generous, but the limited power (5.5 ft-lbs) makes it very challenging.
The scope is your rangefinder, so 24X is welcome in a compact scope, and an added / logarithmical sidewheel helps in pinpointing the range/distance to the target.
The reticle COULD be finer. ½ mRads are not enough for the precision that modern pellets can give between 10 and 55 yards.
These scope should have AT LEAST ¼ mRad hash marks so that the shooter can guesstimate down to 1/8ths. (picture)
The 'wind' drift dots are useful if you know how to use them.
The side-housing for the erector spring IS cumbersome.It gets in the way of many one piece mounts (picture)
It is also obnoxious that the rear scope cap fits very badly. At the second or third shot, it comes off.
The system does work. At 10 meters offhand, it is possible to put three shots into a really small group (3 pictures). But if you loose your concentration, you might throw off a shot (picture).
AND if you get mad and allow yourself to be distracted, all hell breaks loose, ROFL! (picture).
So, if you think you can shoot, come out to a FT competition.
Keep well and shoot straight!
HM
Bought this scope specifically for a Diana model 48 springer. I mounted it on a zero -recoil mount to assure the scope would survive springer recoil. Very compact at less than 12' long and also light at about 20 oz. Magnification and parallax adjustments are smooth without any slop or wiggle. Magnification is true 6-24x. The turrets have positive and audible clicks. The reticle is simple with semi- Christmas tree segmented lines and mil dots for holdovers and windage.
Holds zero perfectly so far.
I know it is listed as a budget scope, but it's build quality is impressive.
I would definitely recommend this scope for any compact PCP airgun. I would recommend it for any springer as long as it is mounted with a zero -recoil mount.
I would definitely buy again.
Can this be fitted or compatible with Break Barrels Air rifle? Particularly a GAMO BREAK BARREL?
HiThe GAMO BREAK BARREL is a Spring Air Rifle. The recoil of this air rifle exceeds the range that this scope can withstand, so it is not recommended to purchase this model.Best regards
Se puede usar en un AR 15, calibre 5.66
Hi friend, yes.It can handle .300win
Can this be used on center-fire rifles (308).
Yes, it holds .300win.
