SKU: SCOC-35

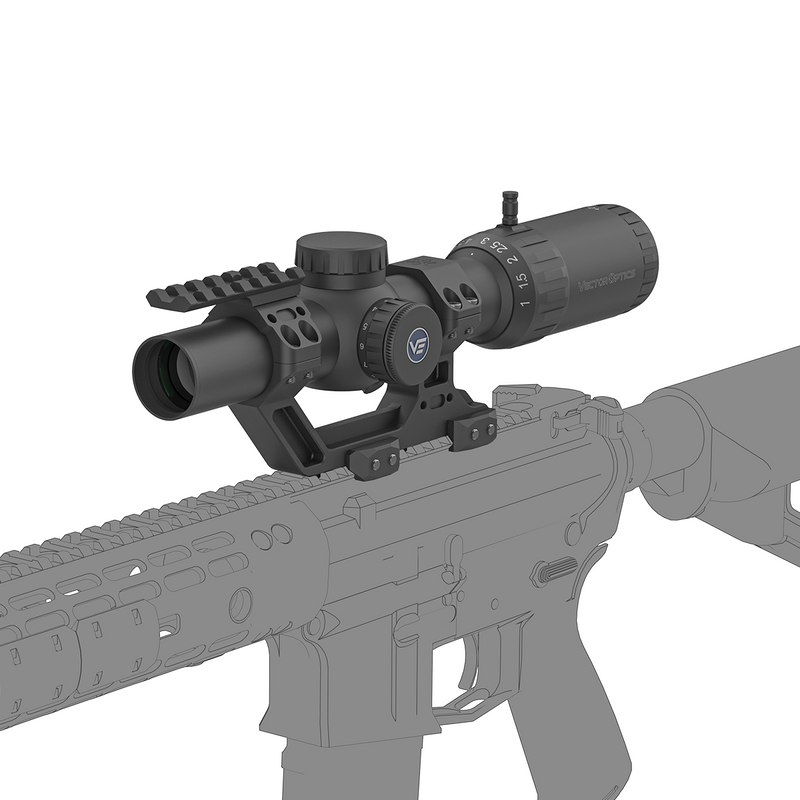

Constantine 1-10x24 Riflescope Fiber Dot Reticle

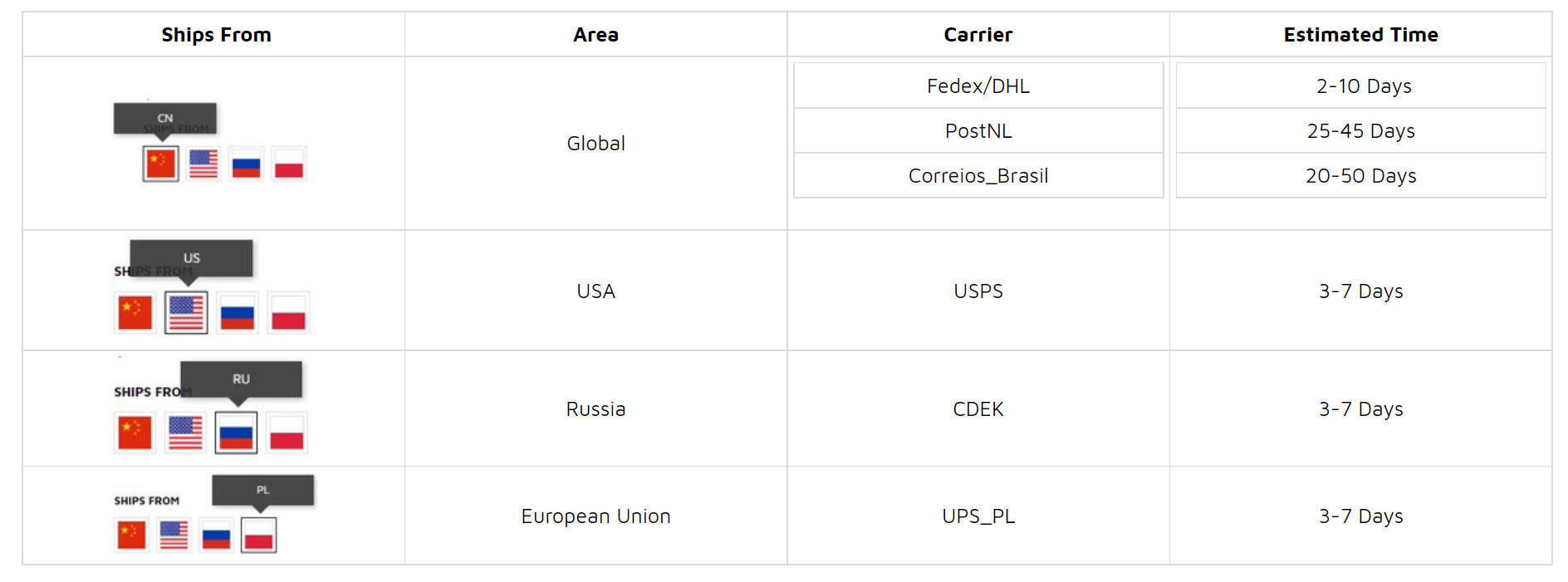

SHIPS FROM
CN
US
RU
PL
FR
 5 Years Warranty

PRODUCT FEATURES

FMC and Extra-Low Dispersion Optics Creates High Intensity and Very Little Distortion Image

True 10x Zoom Factor, Edge-to-Edge Image without Inside Dark Ring Around the Image

30mm Monotube, 2nd Focal Plane, True 1x Power That Can Use Two Eyes Open For Shooting

1/2MOA Capped Low Profile Adjustment w/ Total 120MOA Range, w/ Power Ring Lever Mount

Wide Field of View 1x Power Reaches 21.5°, 95-90mm 3.7-3.5in Eye Relief, IP67 Water Proof

Advanced Fiber Center Dot Reticle  with Illumination Can Be Even Used under the Strongest Sunlight

With Spare 1/2 MOA Direct Turret to Make Your Optics More Tactical, with LensFlip-up Caps

Take Lapua Magnum 338 Recoil and All Fields of Application for Hunting, Sporting & Competition

SCOC-35 Constantine 1-10x24 Fiber Diagram 1

SCOC-35 Constantine 1-10x24 Fiber Diagram 3

SCOC-35 Constantine 1-10x24 Fiber Diagram 2

SCOC-35 Constantine 1-10x24 Riflescope Fiber Dot Reticle Dimensions

VIDEOS



SPECIFICATIONS
  • Magnification: 1-10x
  • Objective Lens Dia: 24mm
  • Ocular Lens Dia: 39mm / 1.5in
  • Ocular Lens Length: 61mm / 2.4in
  • Exit Pupil: 10.0-2.4mm
  • Optics Coating: Fully multi coated
  • Field of View: 113.9.6-11.5 feet@ 100 yards
  • Field of View: 21.5-2.2°
  • Eye Relief: 95-90mm / 3.7-3.5in
  • Length: 277mm / 10.9in
  • Weight: 525g / 18.5oz
  • Tube Dia: 30mm
  • Click Value: 1/2MOA
  • Adjustment Range: 120MOA
  • Parallax Setting: 100 yards
  • Reticle: Fiber center dot
  • Illumination: 11 levels red
  • Battery Type: CR2032
  • Finish: Black matte
  • With extra low profile tactical exposed elevation turret, and easy to replace the capped one
  • Fiber-optic powered center dot in red
  • Shock tested to 1000g, IP67 water proof for 30min under 1 meter water
  • Fully nitrogen purged to eliminate any fogging of the lenses internally
  • High quality 6061 T6 aircraft grade aluminum
  • Diopter compensation from fast-focus eyepiece (+2 to -2)
  • Accessories: 30mm picatinny low rings, power ring lever mount, spare exposed turret, flip-up caps and cleaning cloth etc.
