SKU: OPSL22+SCOT-57FF

S6 1-6x24 LPVO (IN STOCK NOW)

#1: S6 1-6x24 LPVO
#2 30mm (X-Accu) One-Piece Ring Mount
#3 Power Ring Lever

 Product Manual

Video

#1 : S6 1-6x24 LPVO



VICTOPTICS S6 1-24 SFP LPVO SCOPE Price

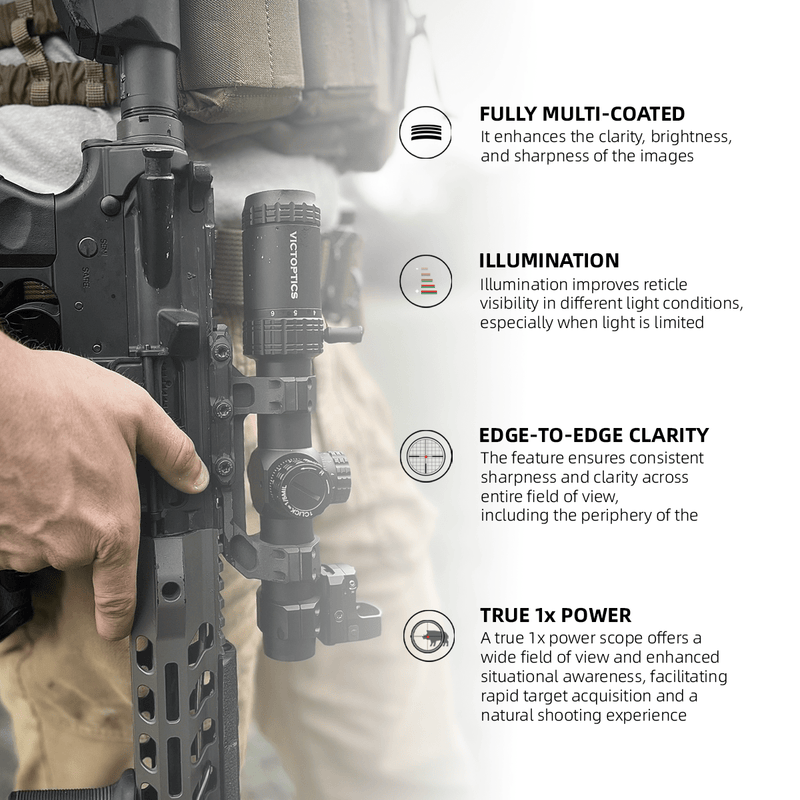

S6 1-6x24 LPVO True 6x Zoom Factor, 30mm Monotube Made of 6061 T6



Feature:

· True 6x Zoom Factor, 30mm Monotube Made of 6061 T6

· True 1x Power That Can Use Two Eyes Open For Shooting

·  Edge-to-Edge Image without Inside Dark Ring Around Image

· 1/5 MIL Adjustment w/ Zero Reset & Turret Lock Features

· Black Matte Finish, Fully-multi Coated, Wide Field of View

· 101mm (4.0") Long Eye Relief , Red & Green Illumination

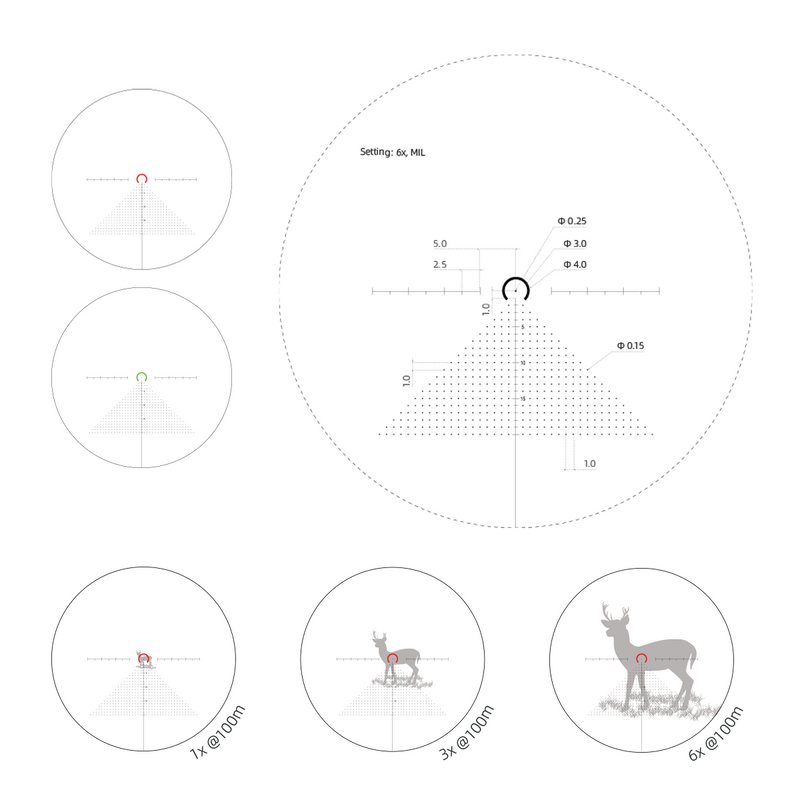

· Etched Glass VI-CTSIX MIL Reticle Center Dot & Circle Illuminated with Digital Lines and Dots

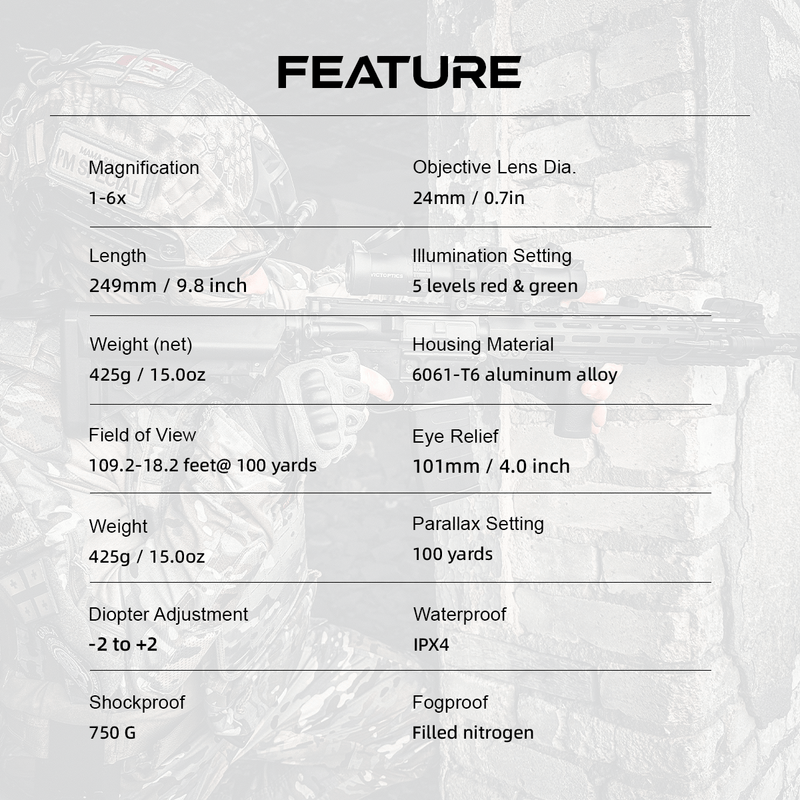

Specification:

· Optics Coating: FMC

· Field of View: 109.2-18.2 feet@ 100 yards

· Eye Relief: 101mm / 4.0 inch

· Length: 249mm / 9.8 inch

· Weight: 425g / 15.0oz

· Tube Dia: 30mm

· Click Value: 1/5MIL

· Adjustment Range: >50MIL

· Parallax Setting: 100 yards

· Reticle: Etched glass VI-CTSIX

· Illumination: 5 levels red & green

· Battery Type: CR2032

· Finish: Black matte or Burnt brown

· Shock tested to 750g, water resistant IPX4

· Fully nitrogen purged to eliminate any fogging of the lenses internally

· Turret lock and can be zero re-set

· High quality 6061 T6 aircraft grade aluminum

· Diopter compensation from fast-focus eyepiece (+2 to -2)

· Including items: flip-up caps and cleaning cloth etc.



S6 1-6x24 LPVO red dot sight
S6 1-6x24 LPVO details

S6 1-6x24 LPVO details



#2: 30mm (X-Accu) One-Piece Ring Mount

S6 1-6x24 LPVO design date

Feature:

0 or 20 MOA Type, AR Platform Tactical Picatinny Mount, Four Screws Per Ring

38mm 1.5" Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined

Light Weight, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar



Spcification:

Ring Diameter: 30mm

Overall Length: 139m / 5.5"

Overall Height: 62mm / 2.4"

Mount Length: 120mm / 4.7"

Ring Width: 46mm / 1.8"

Central Height: 38mm / 1.5", bottom to center

Ring Length: 21mm / 0.8"

Gap Length: 73mm / 2.9"

Material: 6061-T6 aluminum alloy

Weight: 155g / 5.5oz

Mount: 1913 Picatinny

Finish: Black or Coyote FDE matte

Screws per ring: 4

High-durability aluminum alloy in matte finish

Do not use over 18 inch / pounds of torque on the scope rings' screws

Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail

Designed for hard and rigorous use

With hex key and retail package, hex key can be used to fasten the clamp nuts



S6 1-6x24 LPVO side
S6 1-6x24 LPVO side

#3 Power Ring Lever

Feature:

· Can Do From 42-48mm Diameter

· Full Metal

· For Scope Power Ring

· Easy to Use



Specification:

· Diameter:44mm (can do from 42 to 47mm)

· Material:Alluminum alloy

· Finish:Black matte

· Width:7mm

· Release two screws, install it on the scope power ring, fasten the two screws again



Service:


S6 1-6x24 LPVO 5 warehouses around the world






S6 1-6x24 LPVO shipment and warranty

For More Warranty Information,Pls See to The Page of WARRANTY INFO: https://vector2007.com/pages/warranty-info

  • How can I get a copy of the manual for this scope, especially in terms of using the 'Christmas tree' reticle?

    Hello, Kevin Suh.
    We have received your message.

    First, thanks for your consideration of our brand and products.
    As for your question, you can download this manual in this website.

    Welcome to buy our products.

    If you have other questions, welcome to contact us.
    Best regards.

  • Is the single piece 20 MOA mount made for weaver rails or dove tail?

    Hello, LJ.
    We have received your message.

    First, thanks for your consideration of our brand and products.

    As for your question, this mount is Picatinny 21mm, can be compatible with weaver.

    Welcome to buy our products.

    If you have other questions, welcome to contact us.
    Best regards.

  • First focal or second don’t find this info listed on any of your lPVO?

    Hello, Joshua Kollar.
    We have received your message.

    First, thanks for your consideration of our brand and products.
    As for your qeustion, this product is SFP (second focal scope).

    Welcome to buy our products.

    If you have other questions, welcome to contact us.
    Best regards.

  • How long does it take to ship the S6 1-6x24 to California?

    Hello, Billy.
    We have received your message.
    As for your question, this products we will ship to USA by express(2-10days).

    Welcome to buy our products.

    If you have other questions, welcome to contact us.
    Have a good time.
