Feature
30mm Diameter, Adjustable Elevation Height From 35 to 41mm (1.4-1.6“ Bottom to Ring Center)
6 Torx Screws Per Ring, Can Fit 56mm Objective Lens Scope, CNC Well Machined, Dovetail
XASR-3045 Fits 12.6/12.7mm dovetail Mounts
Specification
Diameter: 30mm
Height: 35-41mm (1.4-1.6in) from bottom to ring center
Ring Width: 26mm 1.0in
Weight (net): 140g / 4.9oz
Finish: Black matte
Material: 6061-T6
Mount: 11mm dovetail
Unique construction provides strength well with steel cross-bolt
Six torx screws per ring will hold your scope under any conceivable situations
Perfect alignment and superior accuracy
Do not use over 18 inch / pounds of torque on the scope rings' screws
Fittings include: Hex key
Suggest 25 inch / pounds (can accept max 45 inch / pounds) torque force for big nut when installing the mount on the picatinny rail

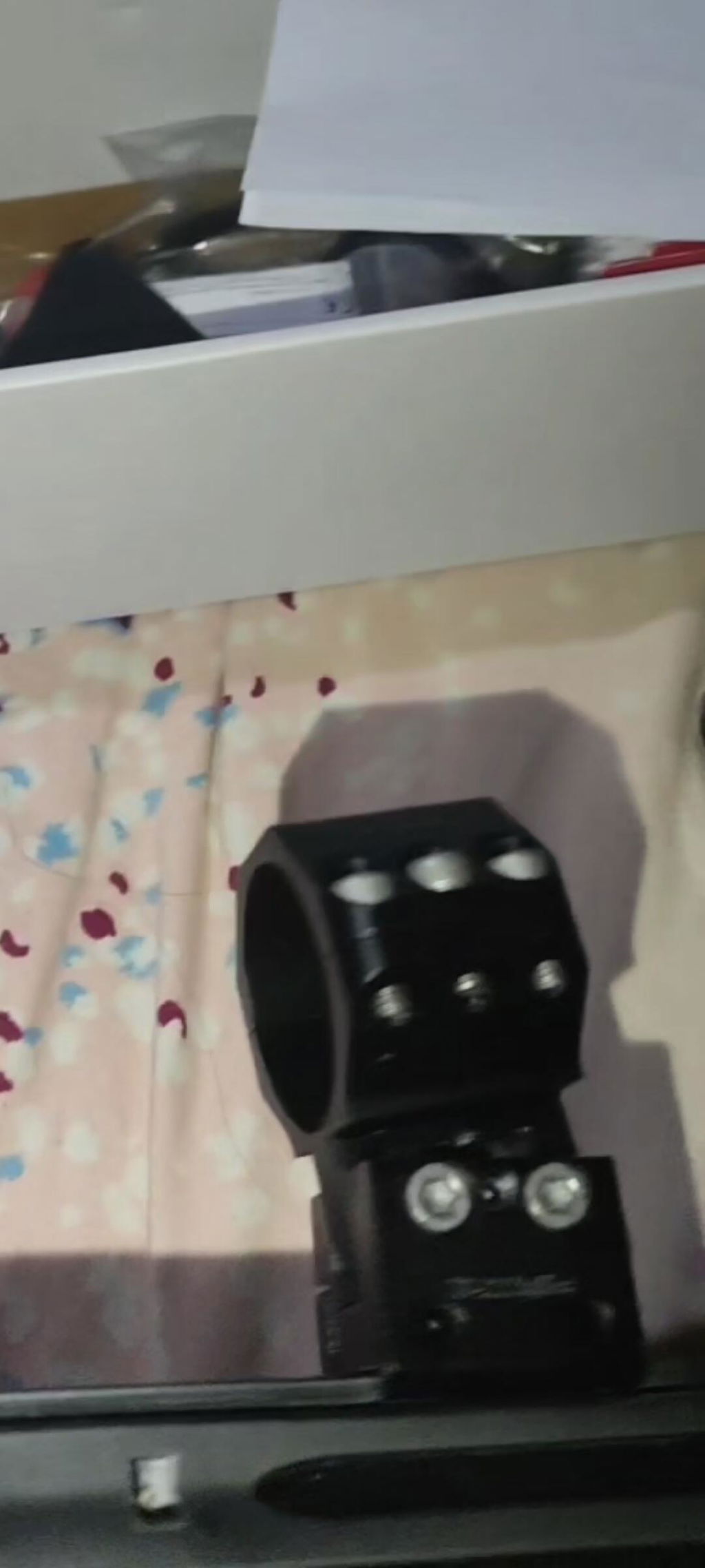

Perfect solution for insufficient elevation issues! The only minor drawback is that, possibly due to over-precise machining or another reason, it could still slide fore and aft even after being fully clamped. I ultimately fixed this by adding two aluminum shims cut from a soda can to get a completely secure fit.
