SKU: OPSL21

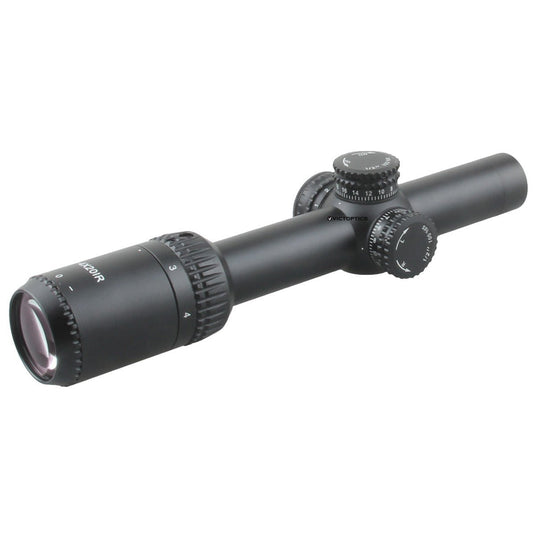

Victoptics ZOD 1-4x20 IR LPVO Scope

Ships from
CN
US
RU
PL
 1 Years Warranty

Relations



Feature

· 25.4mm 1" Monotube

· Fully Multi Coated

· Red & Green Illumination

· 1/2 MOA Turret Adjustment

· VMD-2 Mil & Ranging Reticle

· Power Ring Throw Lever

· Long Eye Relief

· Compact and Light



Reticle

Specification

· Magnification: 1-4x

· Objective Lens: 20mm

· Ocular Lens Dia: 38mm / 1.5 inch

· Ocular Length: 52mm / 2.0 inch

· Tube Diameter: 25.4mm / 1 inch

· Exit Pupil: 20.0-5.0 mm

· Length: 235mm / 9.25''

· Weight (net): 320g / 11.3oz

· Eye Relief: 112-95mm / 4.4-3.7 inch

· Field of View: 68-23.8 feet@100yds

· Optics Coating: Fully-multi coated

· Reticle: VMD-2

· Click Value: 1/2MOA

· Evaluation Range: 200 MOA

· Windage Range: 200 MOA

· Parallax Setting: 50 Yards

· Finish: Black matte

· Illumination: 5 level R and G

· Battery Type: CR2032

· Length of middle turret part: 31mm (1.2 inch)

· Distance between middle turret parts to power ring: 56mm (2.2 inch)

· Shock tested to 500g, water resistant fully nitrogen purged

· High quality 6063 T6 aircraft grade aluminum

· Diopter compensation from fast-focus eyepiece -2 to +1.5

· Including items: weaver rings (default) or dovetail mount ring (on request only), throw lever, cleaning cloth, instruction, lens cap and packed in nice retail box
