SKU: OPFF-02

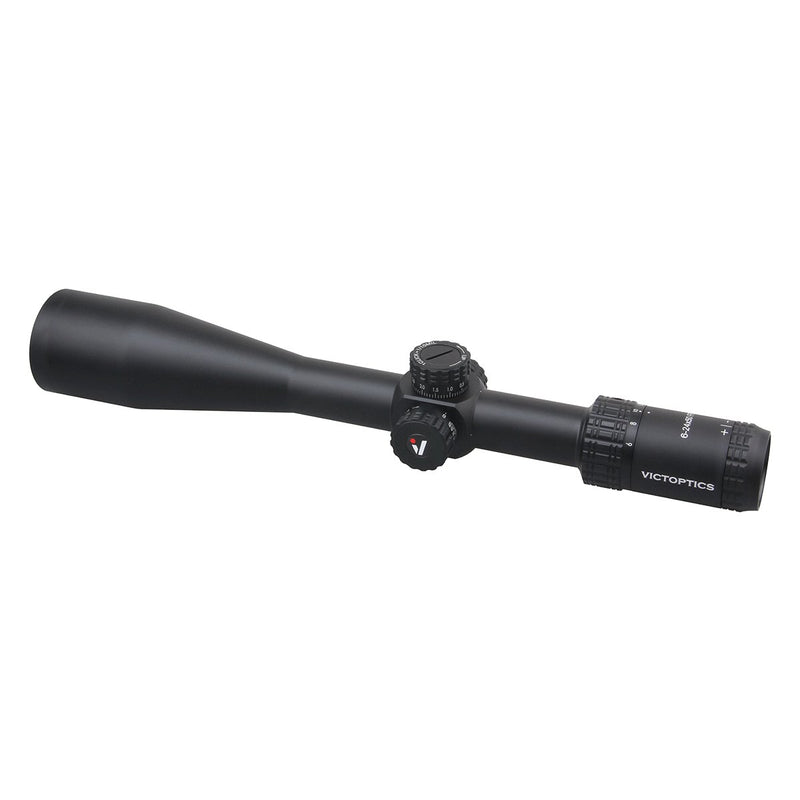

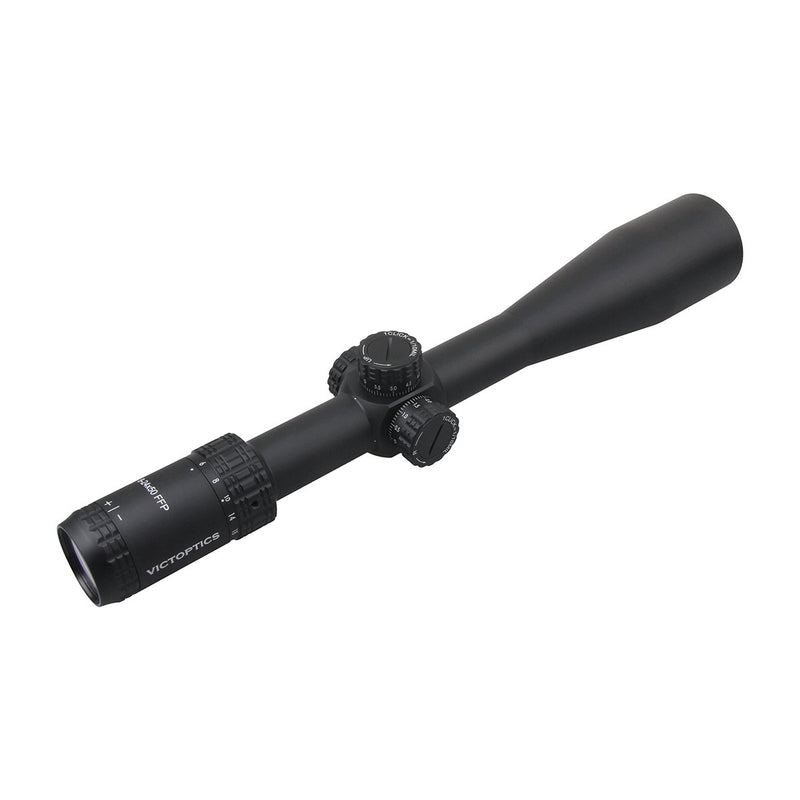

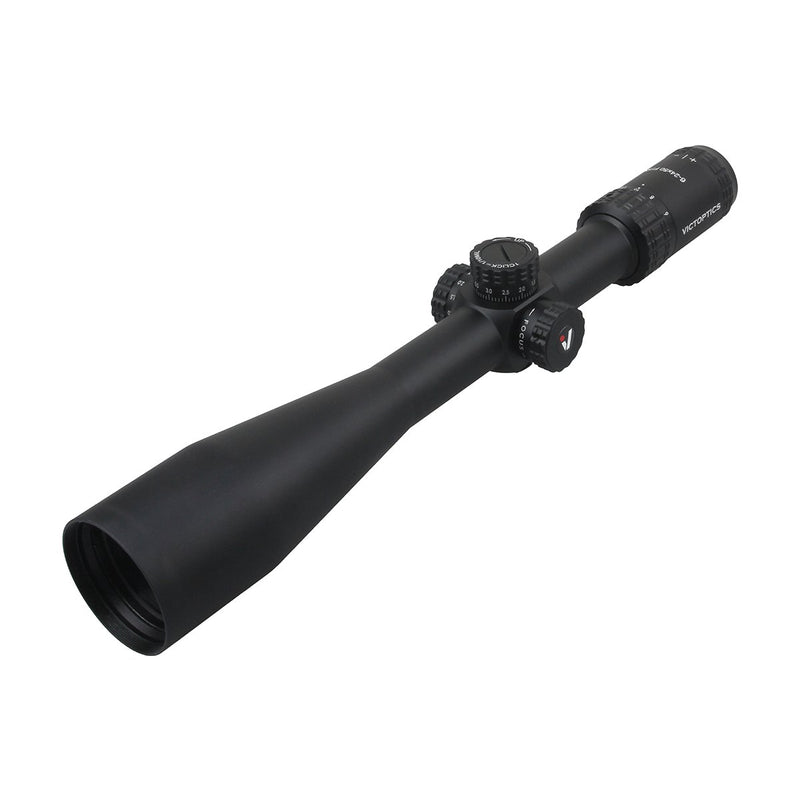

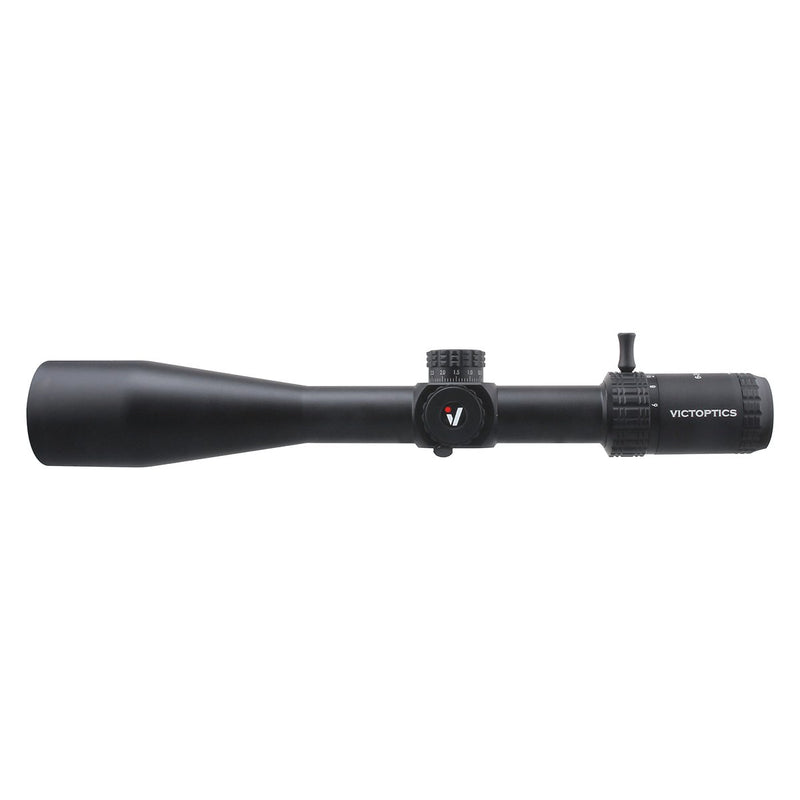

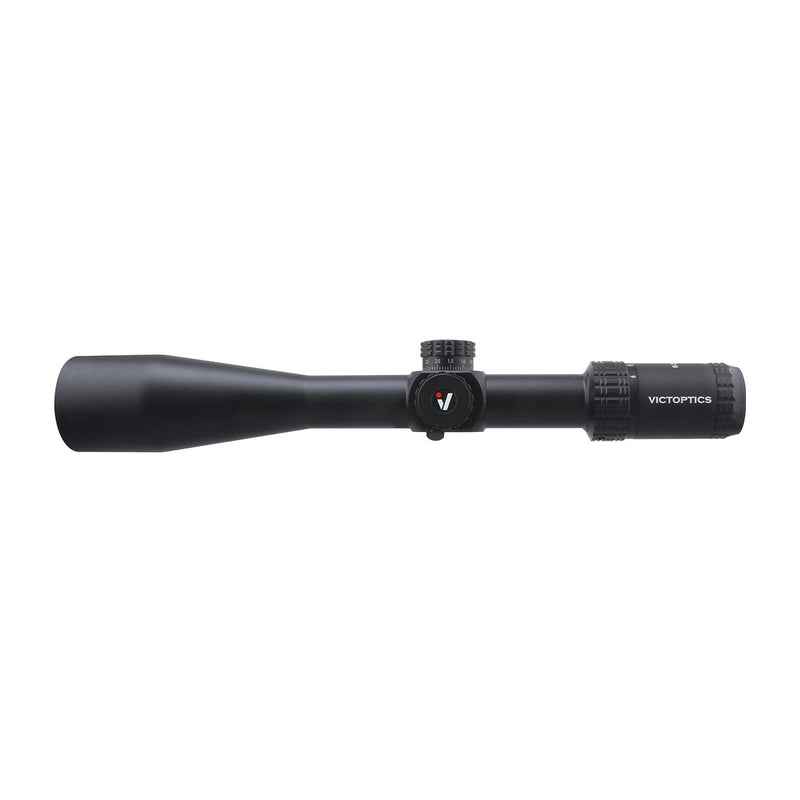

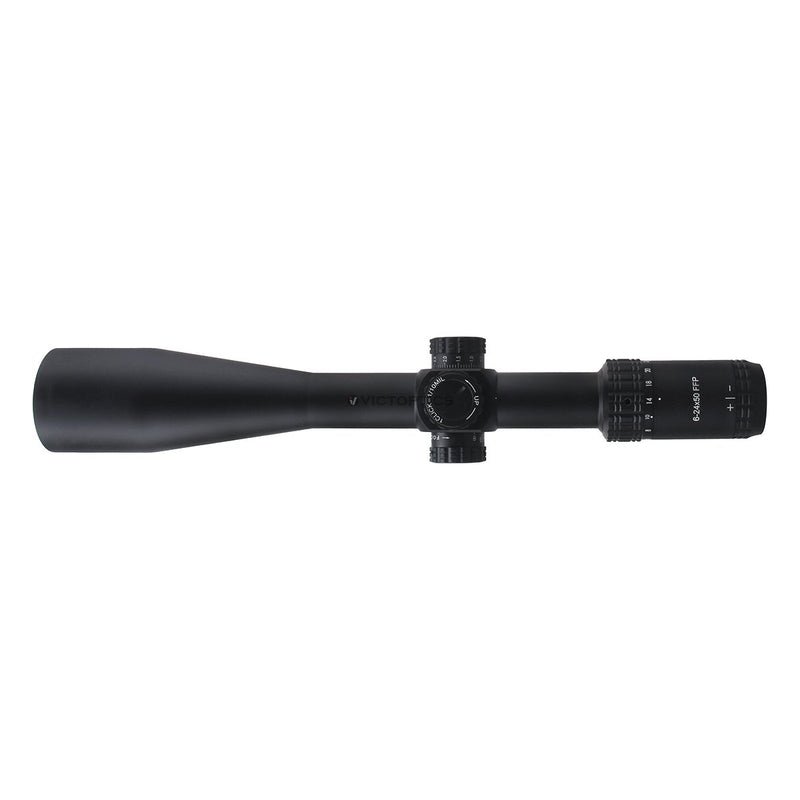

VictOptics S4 6-24x50 First Focal Plane Riflescope

Ships From
CN
US
RU
PL
 1 Years Warranty

Feature
  • First Focal Plane, Edge-to-Edge Image, 96mm 3.8" Long Eye Relief, Crystal Clear

  • 1/10MIL Adjustment with Turret Lock Feature, VIS-FMIL Etched Glass Reticle

  • 30mm Monotube, Wide Field of View, Side Focus Min at 20 Yds, Power Ring Lever












Specification
  • Magnification: 6-24x

  • Objective Lens: 50mm

  • Ocular Lens Dia: 35mm / 1.4 inch

  • Ocular Length: 58mm / 2.3 inch

  • Exit Pupil: 8.3-2.1mm

  • Tube Diameter: 30mm

  • Length: 375mm / 14.8''

  • Weight (net): 555g / 19.6oz

  • Eye Relief: 96mm / 3.8 inch

  • Field of View (@100yds): 21.2-5.3 feet

  • Optics Coating: Fully-multi coated

  • Reticle: VIS-FMIL etched glass reticle

  • Click Value: 1/10MIL

  • Evaluation Range: 13MIL

  • Windage Range: 13MIL

  • Parallax Adjustment: 20 Yds to infinite

  • Finish: Black matte

  • Illumination: N/A

  • Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting

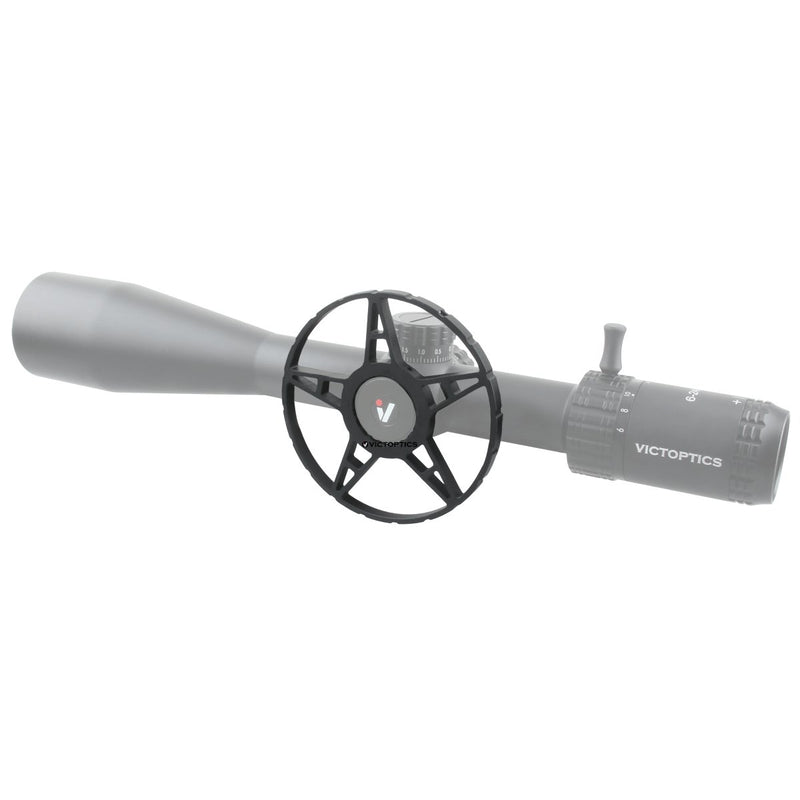

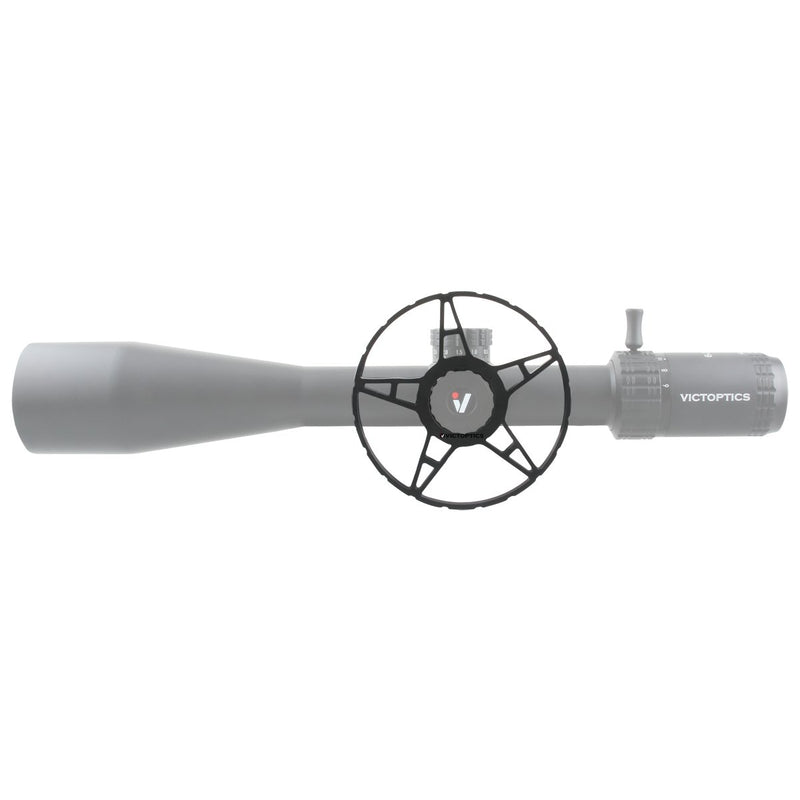

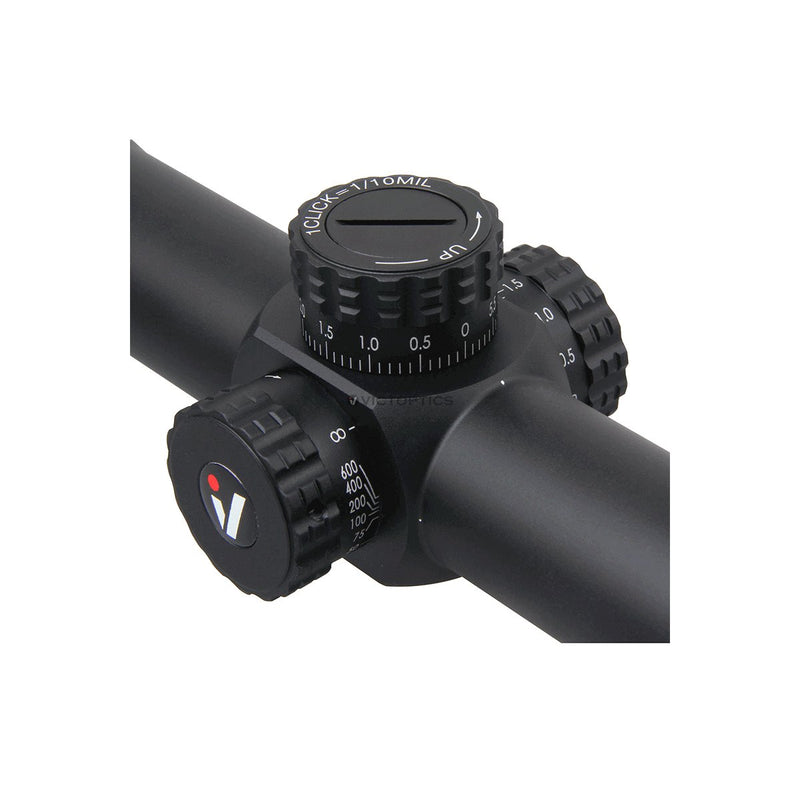

  • Side focus knob marked 20, 25, 50, 75, 100, 200, 400, 600 yards to infinite

  • Distance between objective lens part and middle turret: 61mm (2.4 inch)

  • Length of middle turret part: 32mm (1.3 inch)

  • Distance between middle turret parts to power ring: 55mm (2.1 inch)

  • Shock tested to 750g, water resistant and fully nitrogen purged

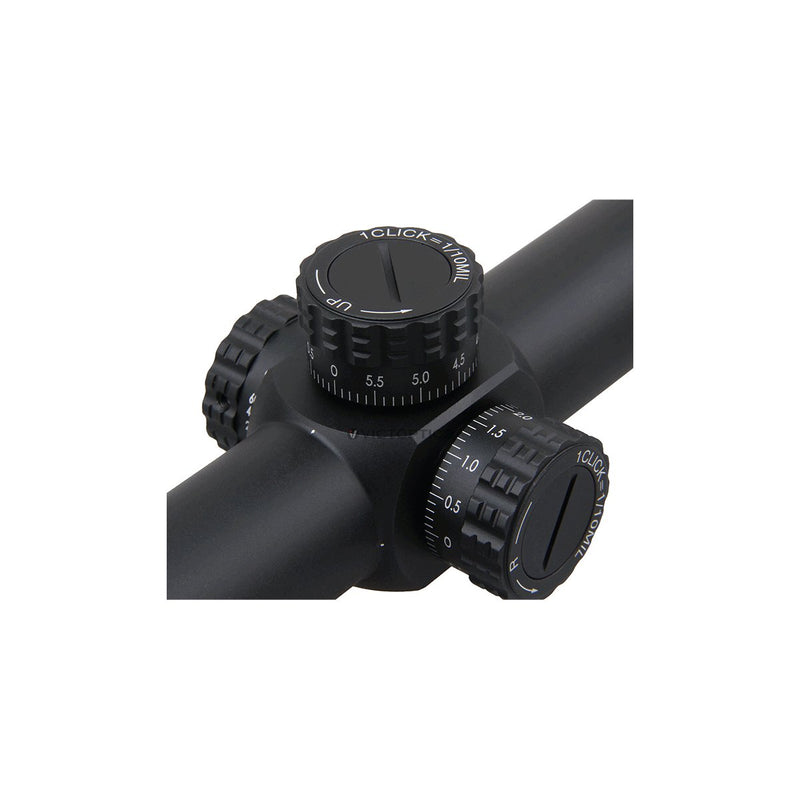

  • Turret lock system. Pull to adjust, press down to lock.

  • High quality 6061 T6 aircraft grade aluminum

  • Diopter compensation from fast-focus eyepiece -2 to +2

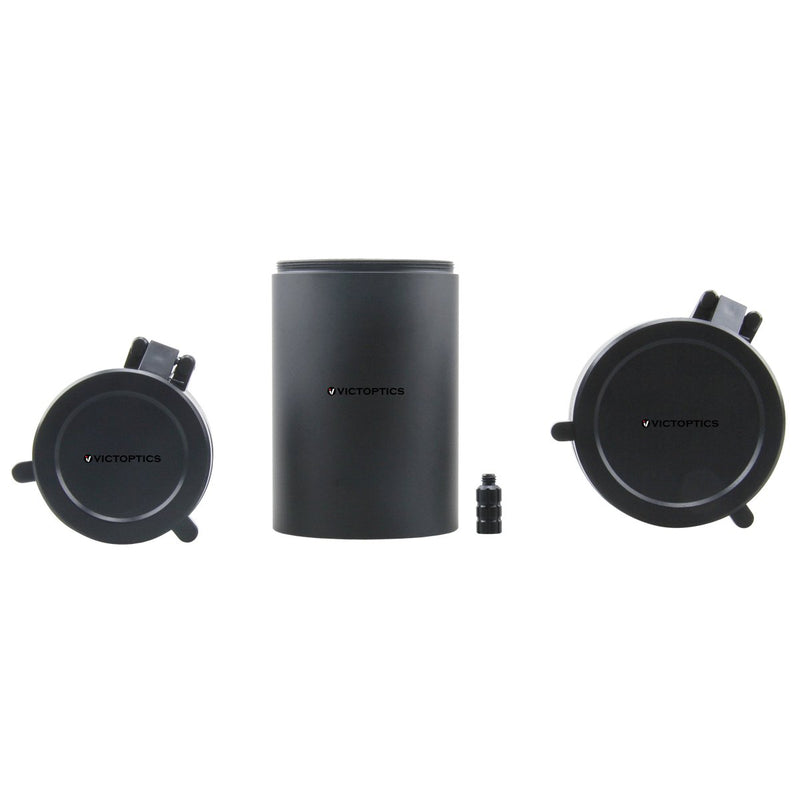

  • Including items: 30mm weaver rings (default) or dovetail mount ring (on request only), power ring lever mount, 3 inch sunshade, cleaning cloth, instruction, lens flip-up caps and packed in nice retail box
