First Focal Plane, Edge-to-Edge Image, 96mm 3.8" Long Eye Relief, Crystal Clear
1/10MIL Adjustment with Turret Lock Feature, VIS-FMIL Etched Glass Reticle
30mm Monotube, Wide Field of View, Side Focus Min at 15 Yds, Power Ring Lever
Specification
Magnification: 4-16x
Objective Lens: 44mm
Ocular Lens Dia: 35mm / 1.4 inch
Ocular Length: 58mm / 2.3 inch
Exit Pupil: 11.0-2.75mm
Tube Diameter: 30mm
Length: 315mm / 12.4 inch
Weight (net): 518g / 18.3oz
Eye Relief: 96mm / 3.8 inch
Field of View (@100yds): 28.8-7.2 feet
Optics Coating: Fully-multi coated
Reticle: VIS-FMIL etched glass reticle
Click Value: 1/10MIL
Evaluation Range: 15MIL
Windage Range: 15MIL
Parallax Adjustment: 15 Yds to infinite
Finish: Black matte
Illumination: N/A
Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting
Side focus knob marked 15, 20, 25, 30, 50, 75, 100, 200, 400, 600 yards to infinite
Distance between objective lens part and middle turret: 45mm (1.8 inch)
Length of middle turret part: 42mm (1.6 inch)
Distance between middle turret parts to power ring: 52mm (2.0 inch)
Shock tested to 750g, IPX4 water resistant and fully nitrogen purged

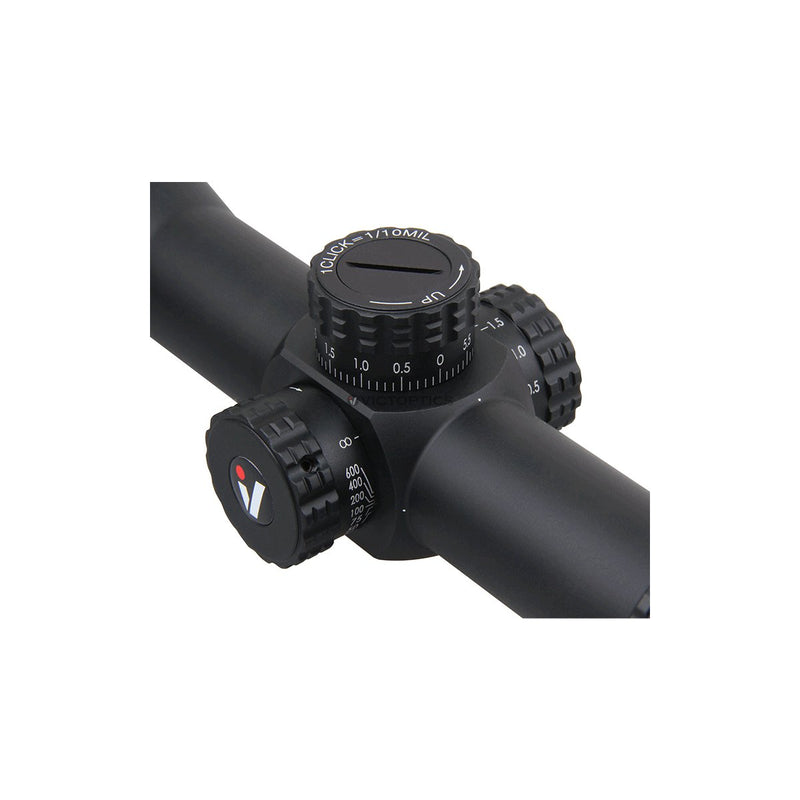

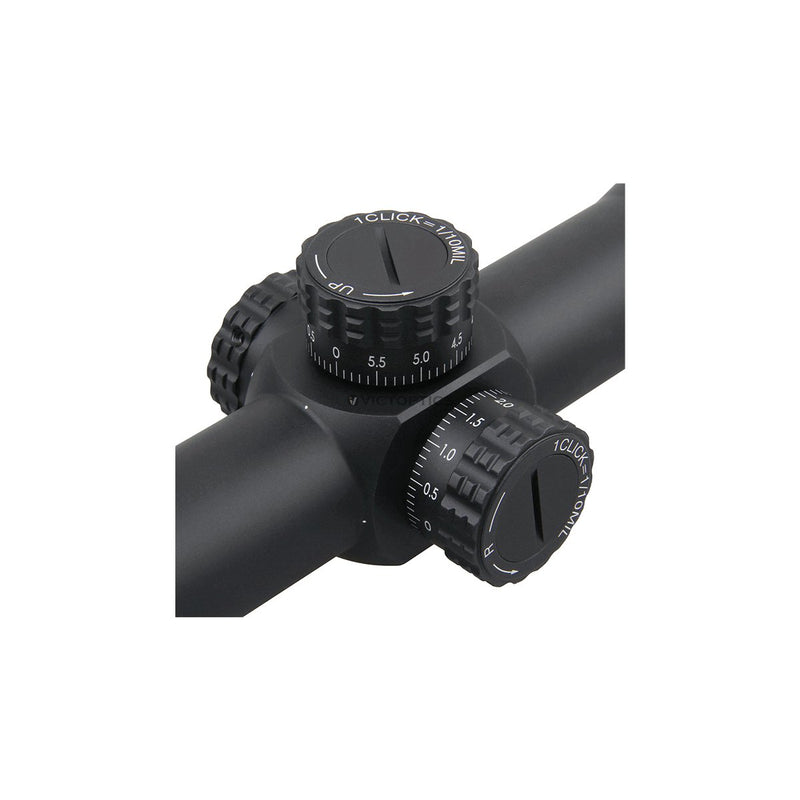

Turret lock system. Pull to adjust, Depress to lock.
High quality 6061 T6 aircraft grade aluminum
Diopter compensation from fast-focus eyepiece -2 to +2
Including items: 30mm weaver rings (default) or dovetail ring (on request only), power ring lever, 3 inch sunshade, big side wheel, cleaning cloth, instruction, lens flip-up caps
