Feature

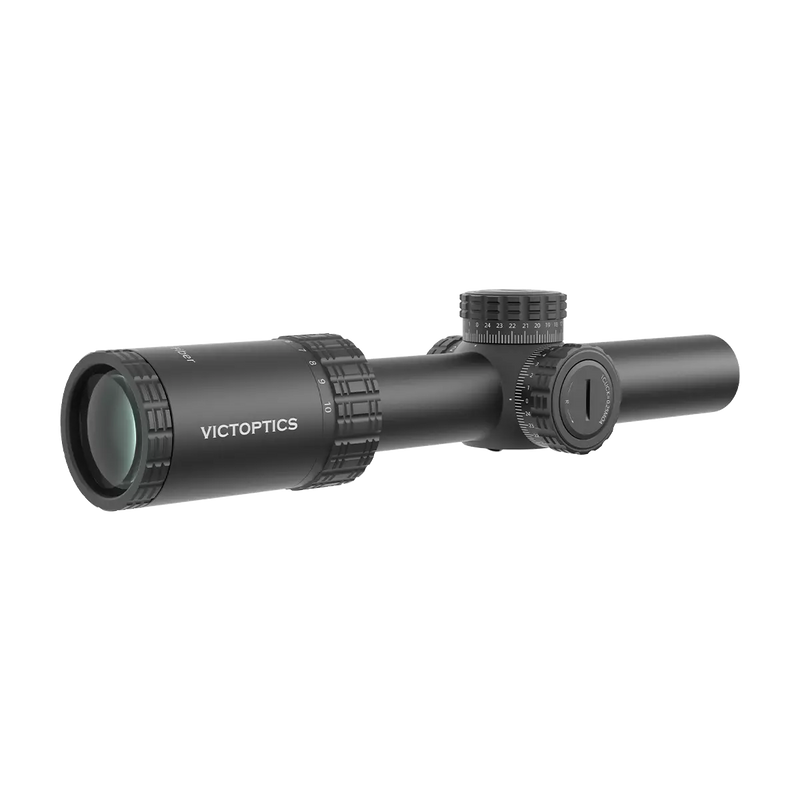

S10 LPVO: All the Best of S6 LPVO, Plus Higher 10x Magnification!!
OPSL37 VictOptics S10 1-10x24 SFP
• Clear Aiming: VS10-1 MIL Christmas Tree Reticle with 5-Level Red/Green Illumination for Quick Target Acquisition in All Conditions
• Sharp Edge-to-Edge View: Fully Multi-Coated Delivers Clear, Bright Imaging Across the Entire Field of View for Better Target Visibility
• Wide Adjustment Control: 30mm Tube with Accurate 1/10 MIL Click Value and Over 35 MIL Elevation Travel Provides Repeatable Dialing
• Smooth & Versatile Magnification: 1-10x Magnification Enables Fast Transition from Close Quarters to Mid-Range Target Engagement
• Comfortable Shooting Position: Long 101mm / 4.0in Eye Relief Supports Natural Head Position and Reduces Fatigue During Extended Use

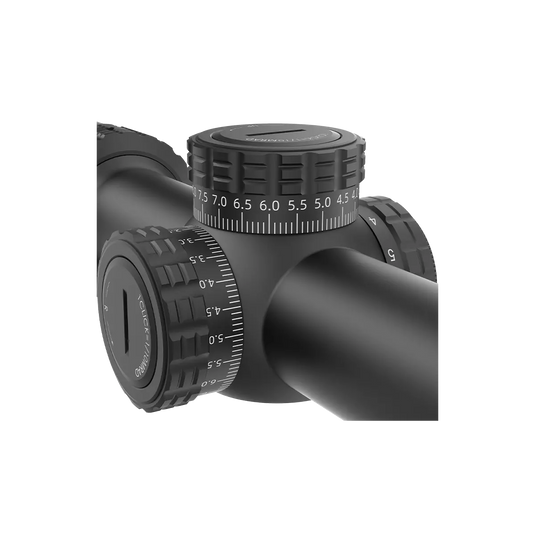

• Secure & Reliable Turret System: Lockable 1/10 MIL Turrets Prevent Unintended Shift and Maintain Zero Under Recoil and Movement
OPSL39 VictOptics S10 1-10x24i Fiber Reticle
• High Visibility Aiming: Fiber Optic Reticle with 5-Level Red/Green Illumination Remains Bright and Easy to See Even under Harsh Sunlight
• Crisp & High-Contrast Viewing: Fully Multi-Coated Lens Improves Light Transmission and Contrast for a Well-Defined Sight Picture
• Wide Adjustment Control: 30mm Tube with 1/4 MOA Click Value and Broad 120+ MOA Range Supports Fine and Consistent Dialing
• Smooth Zoom Control: 1-10x Magnification Range Enables Fast and Smooth Transition Between Close and Mid-Range Targets
• Comfortable & Stable Viewing: 101mm / 4.0in Eye Relief Provides a Natural Shooting Position with Improved Stability Over Time
• Locking Turret Design: Lockable Turrets Reduce Unwanted Movement and Help Maintain Reliable Zero During Repeated Use
Specification
See our Terminology Guide for detailed explanations of each specification.
OPSL37 VictOptics S10 1-10x24 SFP
| Specification | Details |
|---|---|
| Magnification: | 1-10x |
| Objective Lens Dia: | 24 mm |
| Focal Plane: | Second Focal Plane |
| Eye Relief: | 101 mm / 4.0 in |
| Lens Coating: | Fully Multi-coated |
| Linear Field of View @ 100 yd: | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m: | 37-3.7 m @ 100 meters |
| Angular Field of View: | 21.2-2.1° |
| Reticle: | VS 10-1 MIL |
| Tube Dia: | 30 mm |
| Parallax Setting: | 100 yards |
| Click Value: | 1/10 MIL |
| Turret Function: | Turret Lock |
| Elevation Adjustment Range: | >35 MIL |
| Windage Adjustment Range: | >35 MIL |
| Diopter Compensation: | -2 to +2 |
| Illumination: | 5 Gears, Green & Red, On/off Switch |
| Battery Type (Not Include): | CR2032 |
| Waterproof: | IPX5 |
| Fogproof: | Nitrogen Filled |
| Shockproof: | 750 G |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Length: | 274.0 mm / 10.79 in |
| Weight: | 588 g / 20.7 oz |

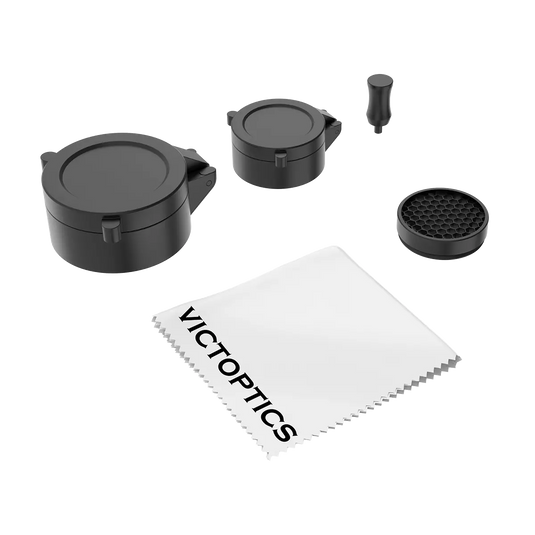

| Items in the Package: | User Manual, Power Ring Lever, Flip Caps and Cleaning Cloth, etc. |
OPSL39 VictOptics S10 1-10x24i Fiber Reticle
| Specification | Details |
|---|---|
| Magnification: | 1-10x |
| Objective Lens Dia: | 24 mm |
| Focal Plane: | Second Focal Plane |
| Eye Relief: | 101 mm / 4.0 in |
| Lens Coating: | Fully Multi-coated |
| Linear Field of View @ 100 yd: | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m: | 37-3.7 m @ 100 meters |
| Angular Field of View: | 21.2-2.1° |
| Reticle: | VS10-2 MOA |
| Tube Dia: | 30 mm |
| Parallax Setting: | 100 yards |
| Click Value: | 1/4 MOA |
| Turret Function: | Turret Lock |
| Elevation Adjustment Range: | >120 MOA |
| Windage Adjustment Range: | >120 MOA |
| Diopter Compensation: | -2 to +2 |
| Illumination: | 5 Gears Red and Green Illumination, On/off Switch |
| Battery Type (Not Include): | CR2032 |
| Waterproof: | IPX5 |
| Fogproof: | Nitrogen Filled |
| Shockproof: | 750 G |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Length: | 273.0 mm / 10.75 in |
| Weight: | 597 g / 21.1 oz |
| Items in the Package: | User Manual, Power Ring Lever, Honeycomb Sunshade, Flip Caps and Cleaning Cloth, etc. |
Size
OPSL37 VictOptics S10 1-10x24 SFP
OPSL39 VictOptics S10 1-10x24i Fiber Reticle
Reticle
OPSL37 VictOptics S10 1-10x24 SFP
• 5-level red & green illumination for all lighting conditions
• Etched VS10-1 MIL Christmas tree reticle for precise holdover
• On/off control for fast and easy brightness adjustment
OPSL39 VictOptics S10 1-10x24i Fiber Reticle
• Fiber optic reticle for bright daylight visibility
• VS10-2 MOA fiber dot delivers a clear, sharp aiming point
• Maintains vivid visibility for precise targeting in strong light
Download
OPSL37 Victoptics S10 User Manual
OPSL39 VictOptics S10 User Manual
