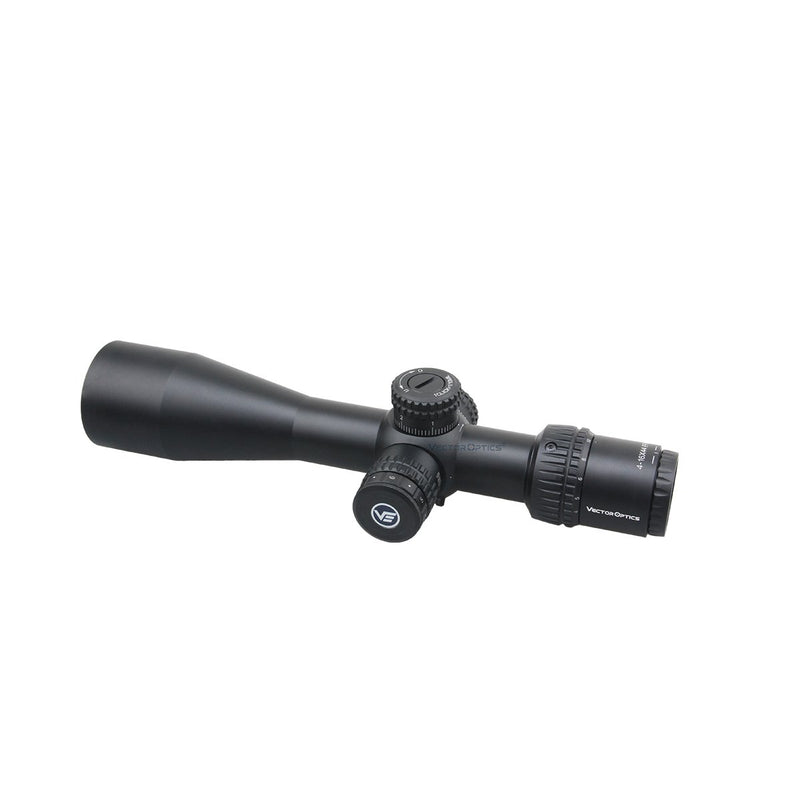

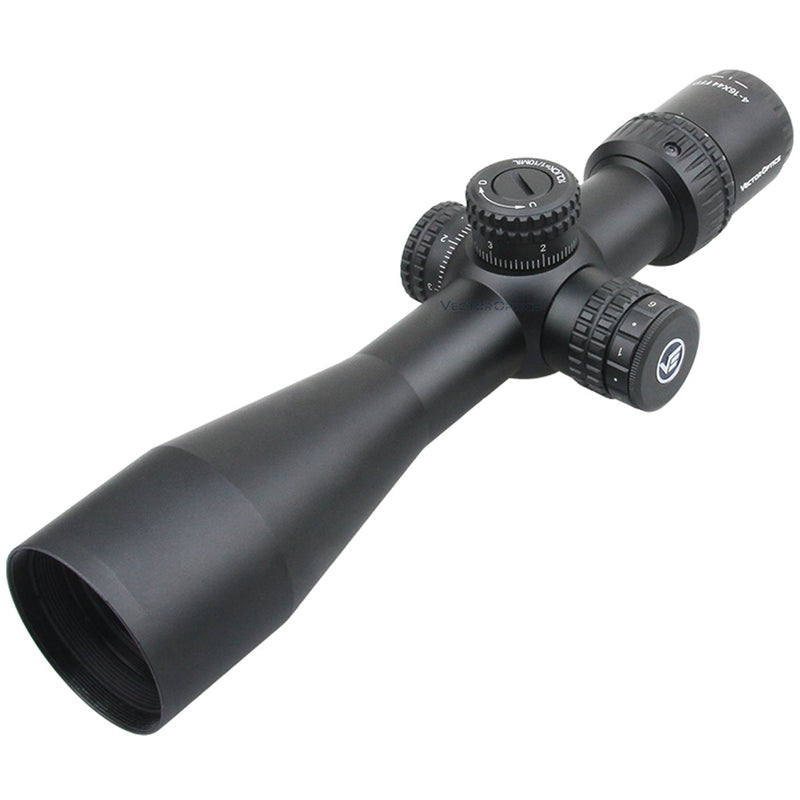

30mm Monotube, Ultra Short 270mm 10.3", 1/10MIL 1cm Adjust With Turret Lock System
Fully Multi Coated, Side Focus Min @ 10 Yds, Long Eye Relief, Six Gear Red Illumination
Center Dot Illuminated Etched Glass Reticle, w/ Honeycomb Sunshade, Flip Up Caps
" A Must for Your Compact Air Guns and Light Weight Firearms, The Shortest Marksman Scope for You."
Objective Lens Dia: 44mm
Ocular Lens Dia: 33mm
Ocular Lens Length: 35mm
Exit Pupil: 11-2.75mm
Optics Coating: Fully-multi coated
Field of View: 26.2-6.55 feet@ 100 yds
Field of View: 5.0-1.25°
Eye Relief: 90-85mm (3.5-3.4")
Length: 270mm / 10.6"
Weight: 530g / 18.7oz
Tube Dia: 30mm Monotube
Click Value: 1/10MIL, 1cm
Elevation Range: 17.5MIL
Windage Rang: 17.5MIL
Parallax Adjustment: 10 Yards to infinite

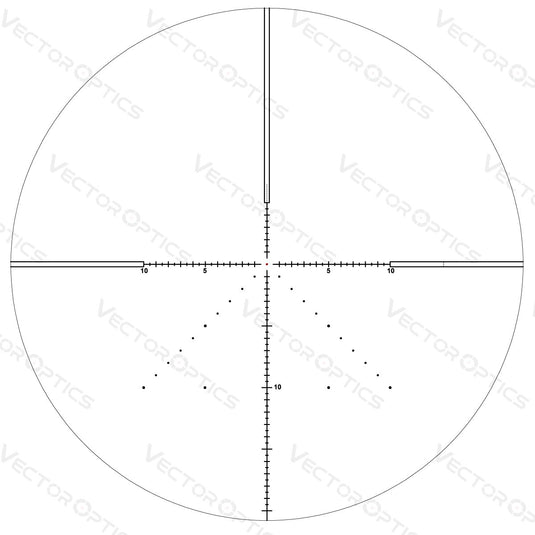

Reticle: Etched Glass MPR-V5
Finish: Black Matte
Illumination: Six gear
Distance between objective lens part and middle turret: 40mm (1.6 inch)
Length of middle turret part: 37mm (1.4 inch)
Distance between middle turret part to power ring: 32mm (1.3 inch)
Shock tested to 750g, IPX4
Fully nitrogen purged to eliminate any fogging of the lenses internally

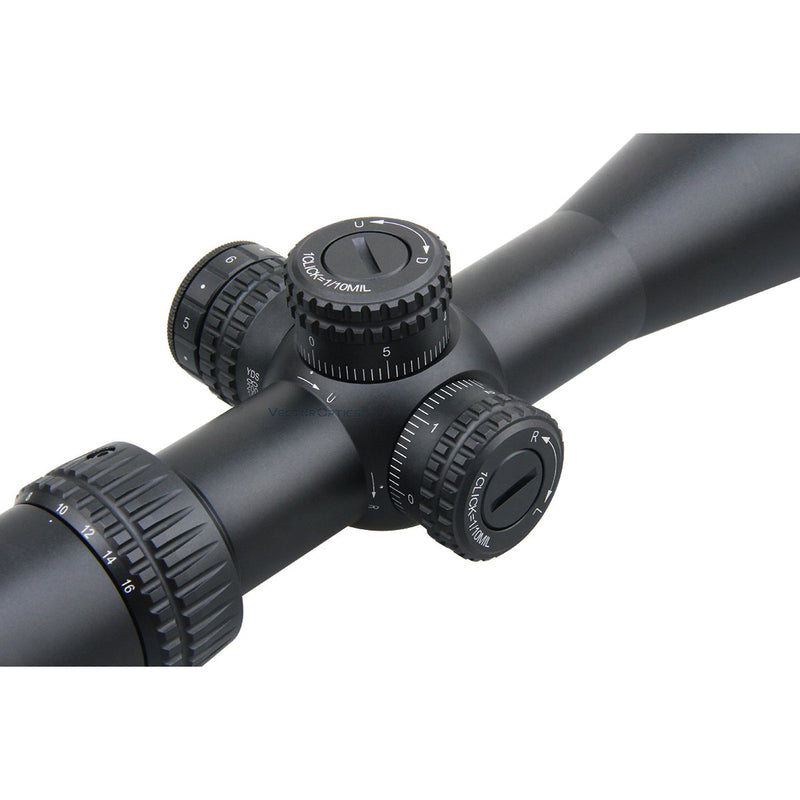

Turret Lock System
High quality 6061 T6 aircraft grade aluminum
Focus mark: 10, 15, 25, 50, 100, 200 and infinite
Diopter compensation from fast-focus eyepiece (+2 to -2)

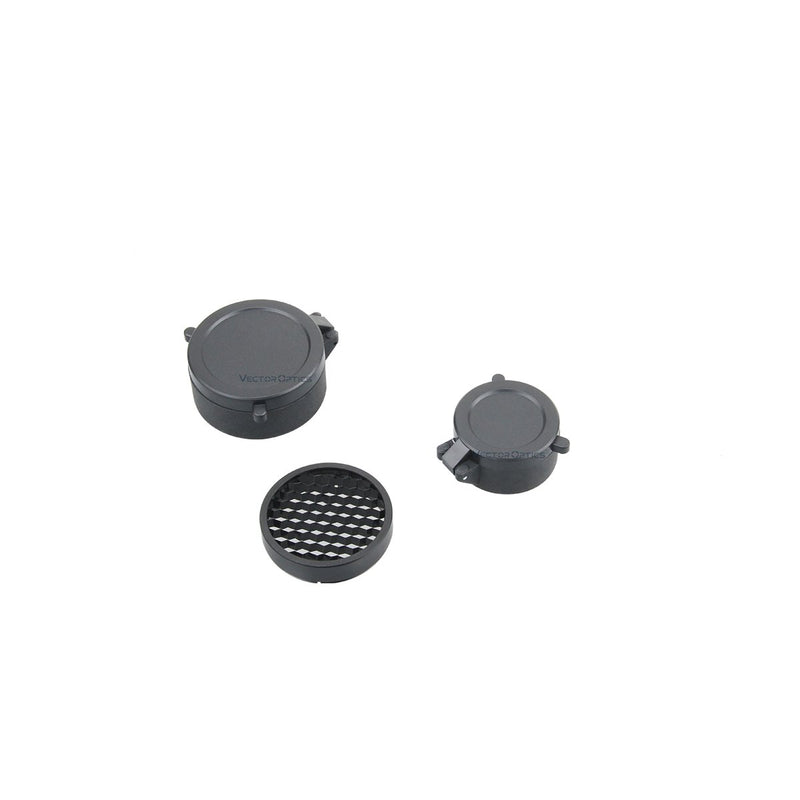

Including items: 30mm weaver, flip-up caps, honeycomb sunshade and cleaning cloth etc.
Is this made to withstand recoil of 308 or 7mm rem mag?
We have received your message.
First, thanks for your consideration of our brand and products.
As for your question, this product can fit this caliber.
Welcome to buy our products.
If you have other questions, welcome to contact us.
How high is the Picatinny rings that comes with this scope
