Orion Pro MAX 6-24x50 HD

Feature

• 6-24x Scope, Perfect Choice for Medium and Long-distance Shots, Detailed View for Accurate Shot

• High Definition Lanthanum Lens for Crisper, Clearer Images and True-to-Life Color Accuracy

• Fully Multi-coated Lens Greatly Improve Light Transmission, Presenting Edge-to-Edge Image

• Zero Stop Function, Return Effortlessly to a Pre-set Zero Point without Additional Adjustments

• 6-Gear Illumination with On/Off Switch Ensures Better Reticle Visibility in Low-Light Environments

Specification

Magnification: 6-24x

Objective Lens: 50 mm

Focal Plane: Second Focal Plane

Eye Relief: 95 mm

Exit Pupil: 8-2.8 mm

Lens Coating: Fully Multi-coated

Linear Field of View @ 100 yd: 18.9-4.7 ft @ 100 yards

Linear Field of View @ 100 m: 6.3-1.6 m @ 100 meters

Angular Field of View: 3.6-0.9°

Reticle: VOR-6 MIL

Tube Dia: 30 mm

Side Focus: 10 yards to Infinity

Click Value: 1/10 MIL

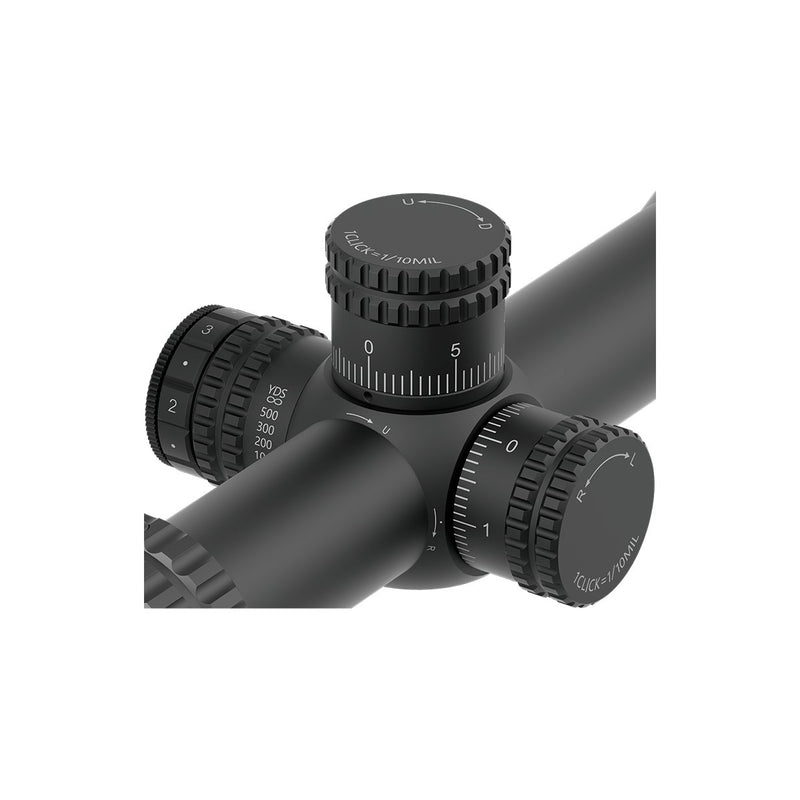

Turret Function: Zero Stop, Turret Lock

Elevation Adjustment Range: 23 MIL

Windage Adjustment Range: 18 MIL

Diopter Compensation: +2 to -2

Illumination Setting: 6 Gears, On/Off Switch

Battery Type: CR2032

Waterproof: IPX4

Fogproof: Nitrogen Filled

Shockproof: 750 G

Housing Material: 6061 T6 Aluminum Alloy

Finish: Matte Black

Length: 353 mm / 13.9 in

Weight (net): 753 g / 27.9 oz

Items in the Package: User Manual, Cleaning Cloth, Flip-up Caps, Hex Keys, Sunshade, Power Throw Lever,etc.

Video

Reticle
