SKU: OPSL16

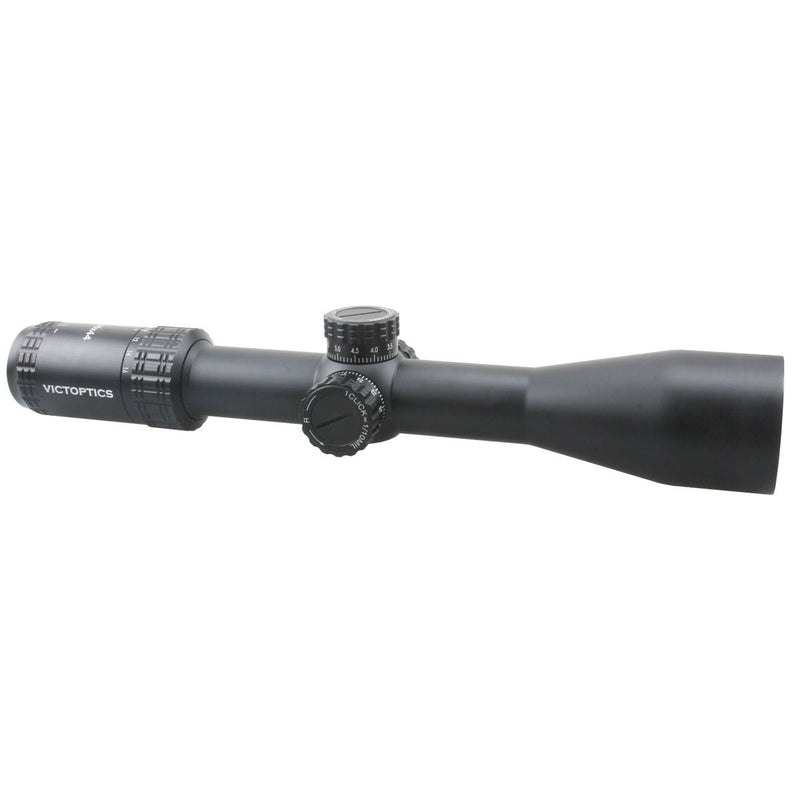

Victoptics AGN 4-16x44 MDL

Ships from
CN
US
 1 Years Warranty

Feature

· Super Slim Edge-to-Edge Image

· Crystal Clear Optics

· 1/10MIL Adjustment with Turret Lock Feature

· WDL Reticle Used at 10x Power

· Custom Designed Patent Reticle Exclusive for Air Guns Fire Arms

· Long Eye Relief

· 30mm Monotube

· Wide Field of View

· Side Focus Min at 12 Yds

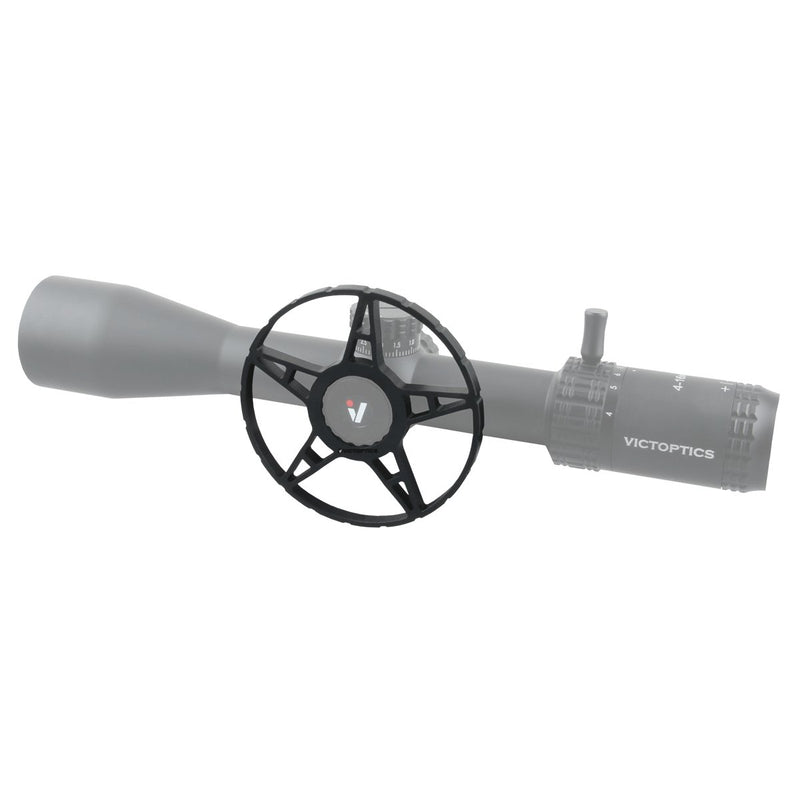

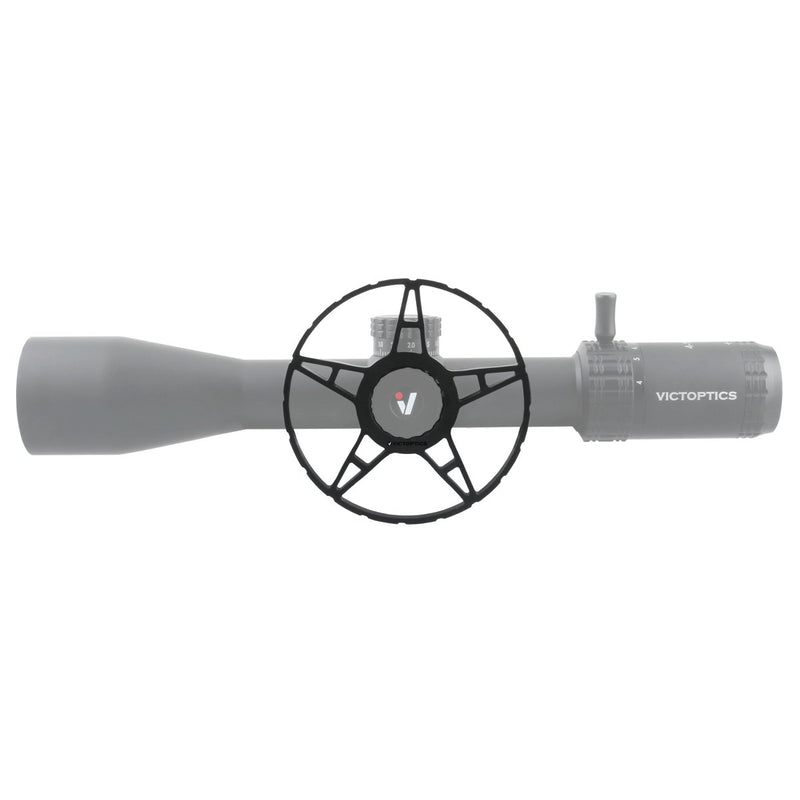

· Power Ring Lever Mount






Reticle

Specification

· Magnification: 4-16x

· Objective Lens: 44mm

· Ocular Lens Dia: 35mm / 1.4 inch

· Ocular Length: 58mm / 2.3 inch

· Exit Pupil: 11.0-2.75mm

· Tube Diameter: 30mm

· Length: 315mm / 12.4 inch

· Weight (net): 530g / 18.7oz

· Eye Relief: 96mm / 3.8 inch

· Field of View (@100yds)" 28.8-7.2 feet

· Optics Coating: Fully-multi coated

· Reticle: MDL wire reticle

· Click Value: 1/10MIL

· Evaluation Range: 15MIL

· Windage Range: 15MIL

· Parallax Adjustment: 12 Yds to infinite

· Finish: Black matte

· Illumination: N/A

· Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting

· Side focus knob marked 12, 15, 20, 25, 30, 50, 75, 100, 200, 400, 600 yards to infinite

· Distance between objective lens part and middle turret: 51mm (2.0 inch)

· Length of middle turret part: 34mm (1.3 inch)

· Distance between middle turret parts to power ring: 54mm (2.1 inch)

· Shock tested to 750g, water resistant and fully nitrogen purged

· Turret lock system. Pull to adjust, Depress to lock.

· High quality 6061 T6 aircraft grade aluminum

· Diopter compensation from fast-focus eyepiece -2 to +2

· Including items: 30mm weaver rings (default) or dovetail mount ring (on request only), power ring lever mount, 3 inch sunshade, cleaning cloth, instruction, lens flip-up caps and packed in nice retail box
