SKU: SCFF-36+XASR-3031

1-4x LPVO | Mustang 1-4x24 FFP .22LR Rifle Scope

Regular price $153.29 USD
Sale price $153.29 USD Regular price $221.99 USD
Sale Sold out
Unit price
/per
Bundle:
This is a pre order item. We will ship it when it comes in stock.
Relations



Feature

True One Power Scope w/ Two Eyes Open at 1x Power, 30mm Monotube Made of 6061

20.0° F.O.V @ 1x Power, 4" Long Eye Relief, Super Edge-to-Edge Crystal Clear Image

First Focal Plane, 1/2 MOA Tactical Finger Adjustment with Turret Lock Feature

Etched Glass M-4RD MOA Reticle Used @ 4x Power with 6 Levels Red Illumination on Side

Come with 30mm One Piece Picatinny Mount, Flip-up Caps, Power Ring Lever Mount

Reticle
Specification
  • Magnification: 1-4x
  • Objective Lens: 24mm
  • Ocular Lens Dia.: 35mm
  • Ocular Lens Lenght: 59mm
  • Exit Pupil: 11.0-5.0mm
  • Optics Coating: Fully-multi coated
  • Field of View: 105.8-26.2 feet @ 100 Yds
  • Field of View: 20.0-5.0°
  • Eye Relief: 105-100mm (4.13-3.93")
  • Length: 255mm / 10.0"
  • Weight (with mount): 485g / 17.1oz
  • Tube Dia: 30mm
  • Click Value: 1/2MOA
  • Adjustment Range: 60MOA
  • Parallax Setting: 100 yards
  • Reticle: Etched Glass M-4RD
  • Finish: Black matte
  • Illumination: 6 levels red
  • Battery Type: CR2032

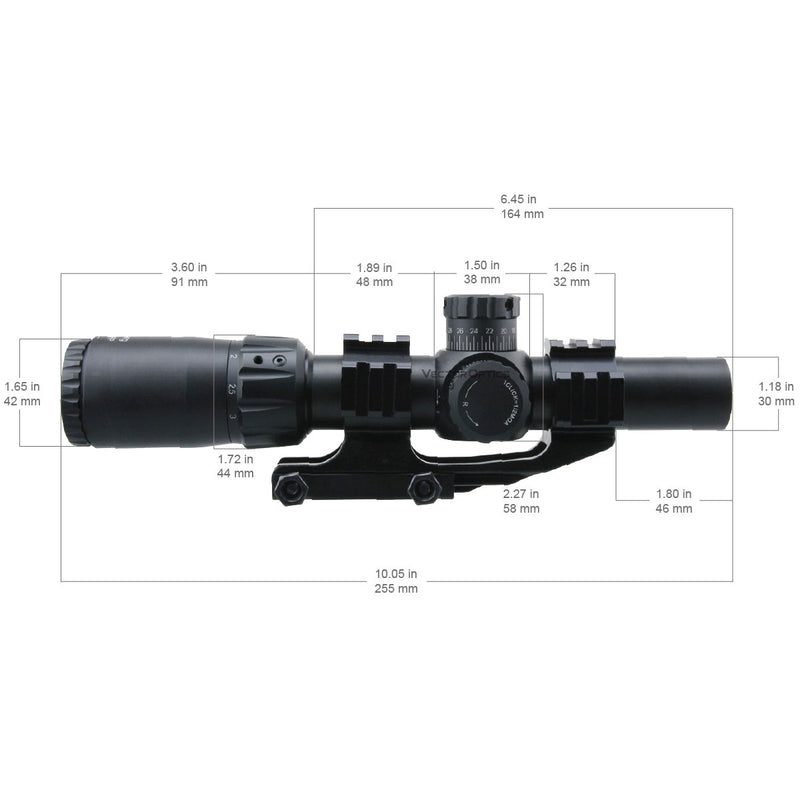

  • Length of middle turret part: 39mm (1.5 inch)
  • Distance between middle turret parts to power ring: 46mm (1.8 inch)
  • Distance between middle turret parts to objective lens: 78mm (3.1 inch)
  • Adjustment lock feature: pull up to adjust, press down to lock
  • Shock tested to 750g, water-resistant
  • Fully nitrogen purged to eliminate any fogging of the lenses internally
  • High quality 6061 T6 aircraft grade aluminum
  • Diopter compensation from fast-focus eyepiece (+2 to -2)

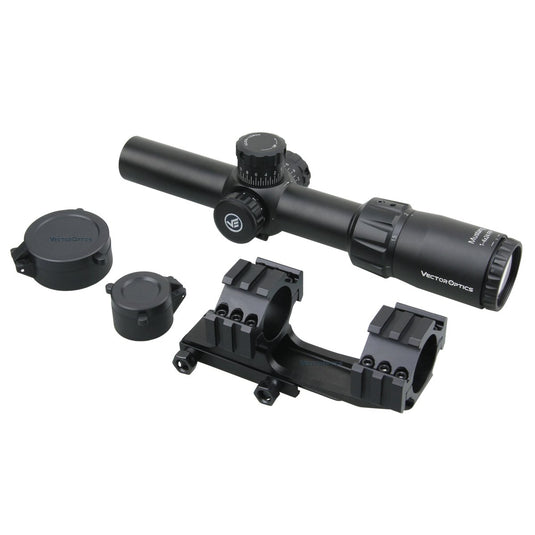

  • Including items: 30mm one-piece Picatinny mount, flip-up caps, power ring lever mount and cleaning cloth etc.
D
Dave

This looks perfect for slug shooting and should function similarly as a red dot on 1x with both eyes open. I am looking forward to owning one. Can I confirm if this optic is rated for 1oz 1600fps 12G Slugs?

Erica Wilson

Sorry, this scope cannot withstand the impact of 12G slugs

Y
Yuriy

What recoil caliber safe to use, .30.06, .308, 12g shotgun ammo?

Erica Wilson

Up to .308.

C
Chris

Can this handle a 450 bushmaster?

Erica Wilson

It can hold .308

J
Joey

I own a MUSTANG 1-4X24 FFP LPVO RIFLESCOPE. My problem is that its reticle is way to the left of my rifle's front sight post.
No matter how much I adjust the windage knob to the right, the reticle does not move. ow do I solve my problem?

Erica Wilson

Hello

#1 Is it possible to help do a “Box Testing? of the adjustment ?

(1) Tighten the rifle
(2) Put a paper at 100 yds(MOA) / meters(MIL)
(3) Adjust the elevation turret from the "Up" to "Down" , adjust the windage turret from the “left” to “right”
(4) Record the distance that reticle's movement on the paper

#2 If the “Box testing” works well. Please check below 5 tips


Are the rings installed too tightly ? (The suggested screws Torque is 15-18 Inch-pounds, Over torqueing the ring screws will cause excess pressure on the tube, which will cause problems when adjusting the reticle/adjustment.)
Has the windage or elevation turret been adjusted to the ultimate position ? For example the most left/right or the most up/down. (Reason : “ windage adjustment ”” elevation adjustment ”, they are both adjusted in the same inner tube of the riflescope which means the windage or elevation adjustment will influence each other )
Would like to know the height of the center of the scope from the barrel (Attached picture for reference)
Is it possible to tell me the distance riflescope used ? what is your bullet drop at such distance ?
Have a try to exchange the position of front ring with back ring.


Many times, problems thought to be with the scope are actually mounting problems. Be sure the mounts are properly torqued to the rifle and the scope is secured so it doesn’t twist or move in the rings. An insufficient windage or elevation adjustment range may indicate problems with the base mount, base mount holes drilled in the rifles receiver, or barrel/receiver alignment.

A
Ajax Lin

Could this scope shipping to Taiwan?

Erica Wilson

Hi, sorry for the late reply. Yes, we can ship to Taiwan.Please order it directly.
