Feature
· Wide-View Target Awareness: 22×32mm Large Window w/ 3 MOA Dot, Circle and Crosshair Reticles Supports Multiple Shooting Styles
· Ultra-Long Power Endurance: Solar Backup Panel with Over 80,000 Hours Battery Runtime Maintains Reliable Operation in Sunlight
· Fast Battery Replacement: Side-Loading Battery Tray Enables Quick and Easy Battery Changes Without Removing Optic or Losing Zero
· Instant Setup Convenience: Quick Release Mount Allows Rapid and Secure Installation and Easy Transfer Between Rifles and Guns
· Broad Platform Compatibility: GIN Footprint Fits C-More® RTS/STS Standard for Canik TP9 SFx, TP9 Elite Combat, P320-MAX, and GLOCK
· Note: Only Newer Models with Dual Rear Screws Support the Optional All‑Weather Cover SCFRC‑01; Earlier Versions Do Not.
Specification
See our Terminology Guide for detailed explanations of each specification.
- Magnification: N/A
- Window Lens Size: 22x32 mm / 0.87x1.26 in
- Parallax: Free (≤2MOA)
- Parallax Setting: 100 yards
- Dot Size: 3 MOA
- Sensor: Motion Sensor
- Click Value: 1 MOA
- Elevation Adjustment Range: 100 MOA
- Elevation Adjustment Range: 100 MOA
- Footprint: GIN
- Mounting Rail: Picatinny
- Illumination Setting: 8 Daylight & 2 Night Vision
- Battery Type: CR2032
- Battery Life: 80,000 hours
- Battery Placement: Side Loading
- Waterproof: IPX7
- Shockproof: 800 G
- Working Temperature: -20~+55 °C
- Housing Material: 6061-T6 Aluminum Alloy
- Mount Material: 6061-T6 Aluminum Alloy
- Finish: Black matte
- Weight: 113 g / 3.96 oz (with mount)
- Items in the Package: User Manual, Retail Package, Hex keys and Cleaning Cloth etc.
Reticle
Footprint
GIN Footprint
· Compatible Industry Standard: C-More® RTS / STS
· Important Compatibility Note: GIN footprint measures 52 × 27 mm (2.05 × 1.06 in) and is shorter than C-More® RTS / STS optics. Clearance may vary by slide and mounting plate. Verify fit before installation.
· Original Compatible Pistol Optics-Ready (O.R.) Model: Canik TP9 SFx, SIG Sauer P320-MAX, TP9 Elite Combat (w/ Plate #06), and GLOCK® MOS Gen4/5 (w/ Aftermarket Adapter Plate)
For more information about FOOTPRINT, please refer to the blog.
Magnifier Compatibility
Required Mount Setup: VAS™ Red Dot Sight Picatinny Low Mount (SCRA-75) + VAS™ GIN Footprint Adapter (SCRA-GIN1)
Remove the original mount first, then install the setup above.
|
Center Height |
Compatible Magnifier |
SKU |
|
1.50 in / 38.1 mm |
Maverick 3x22 Magnifier |
SCMF-16 |
|
Paragon 3x18 Mini Magnifier (with 4 mm Riser) |
SCMF-33 |
|
|
Paragon 5x30 Mini Magnifier (with 4 mm Riser) |
SCMF-34 |
|
|
Maverick-IV 3x22 Rubber-Armored Mini Magnifier |
SCMF-35 |
|
|
Maverick 5x22 Magnifier |
SCMF-36 |
|
|
Maverick-III 3x22 Magnifier |
SCMF-37 |
|
|
Maverick-III 3x22 FDE Magnifier |
SCMF-38 |
|
|
Maverick-IV 3x22 Mini Metal Magnifier |
SCMF-41 |
|
|
SOM 3x Magnifier |
VIMF-01 |
Required Mount Setup: VAS™ Red Dot Sight Picatinny Medium Mount (SCRA-76) + VAS™ GIN Footprint Adapter (SCRA-GIN1)
Remove the original mount first, then install the setup above.
|
Center Height |
Compatible Magnifier |
SKU |
|
1.93 in / 49.0 mm |
Maverick 3x22 Magnifier (with 10 mm Riser) |
SCMF-16 |
|
Maverick 5x22 Magnifier (with 10 mm Riser) |
SCMF-36 |
|
|
SOM 3x Magnifier (with 10 mm Riser) |
VIMF-01 |
Descripition
Video
Review
"Choix de Réticules: Sélectionnez entre un point ou un cercle pour cibler avec rapidité et précision. Ilumination Réglable : 8 niveaux pour la journée et 2 pour la visionnocturne, adaptés à toutes les conditions lumineuses."
— Frenzy Plus 1x22x32 Solar Power Red Dot Sight (SCRD-SM44) Review by Rodolphe Voisin
But this red dot for a new PCC. The build and quality of the site is equal to other top-tier competitors. Site has an extra large window, which is perfect for my application and the three dot settings are phenomenal. Highly recommend.
I picked up this optic it shipped pretty quick. Since it''s the Gin footprint and Pew that I wanted to mount it to was rmsc. I reached out to SAS tactical and had a custom plate made. I''ve put 200 rounds through it already and it zero. No problems. Because of the quality of this, I''m considering picking up another and putting it on a different Pew. The window is large and the dot is bright even in the sun. Anybody who''s looking for something different? I would recommend going with this optic!
I wish I could get it up more but that's my only concern.
My only gripe is I wish it was RMR footprint and had +3 brightness settings for reticle.
Huge and can't wait to zero it in.
Glock G25?
SCRD-SM44 is a GIN Footprint, compatible with RTS. If your Glock 25 is a MOS version, please determine whether it matches. If it is not MOS or does not match, you need to purchase an adapter.

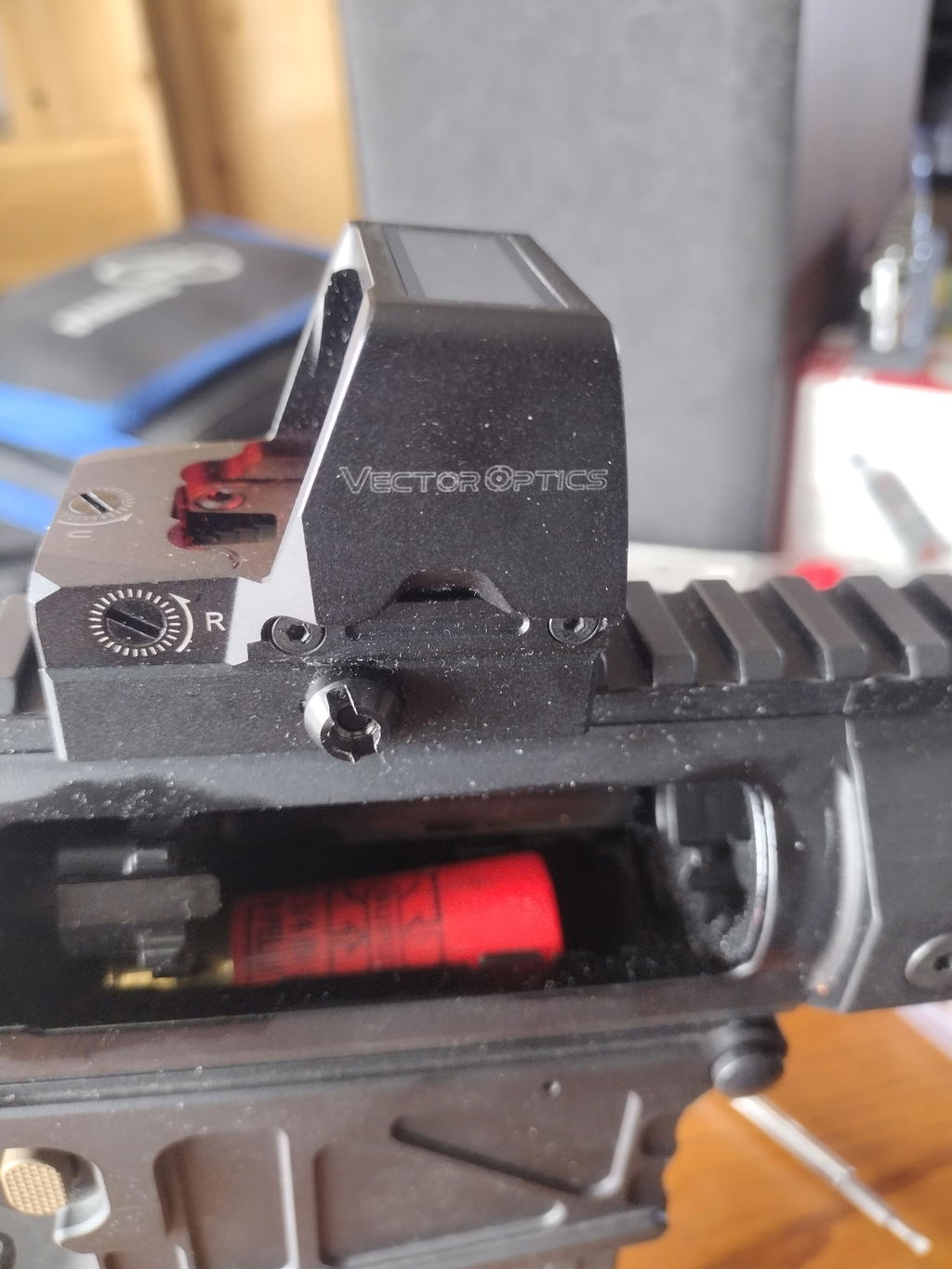

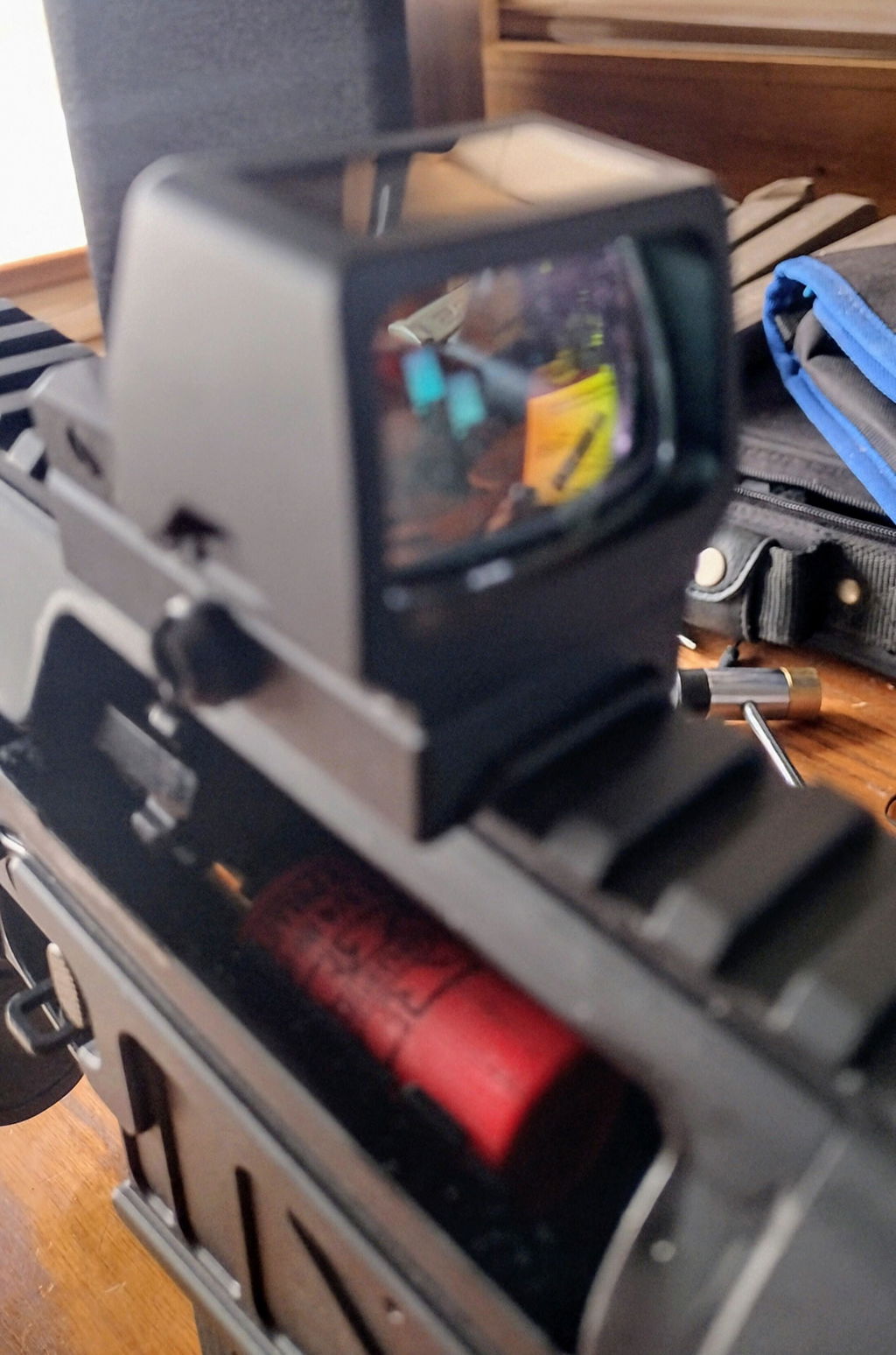

I have this on a new Genesis Arms 12 shotgun. Will it hold up to fast firing?
Can withstand 12GA rapid fire
Hi. Can this model hold its zero while being used on a 12ga shotgun?
Hi. This red dot can withstand the impact of 12GA Shotgun very well.
Would this fit a Barretta 92? and Do you have dovetail mounts that can fit it?
Sorry, this red dot can only be used with Picatinny or Weaver
Good afternoon! I am from El Salvador, Central America and I am interested in purchasing this product. What is the procedure so they can send it to me, costs and requirements
Sorry, we are unable to ship to El Salvador at this time
