A Complete Guide to Vector Optics Red Dot Footprints and Compatibility
Mounting a red dot sight correctly requires knowing the footprint — the specific pattern of holes and recesses on the bottom of the optic that matches a plate or mount on your firearm. This guide explains how Vector Optics defines its footprint names, how those relate to common industry standards, and which models fit each pattern.

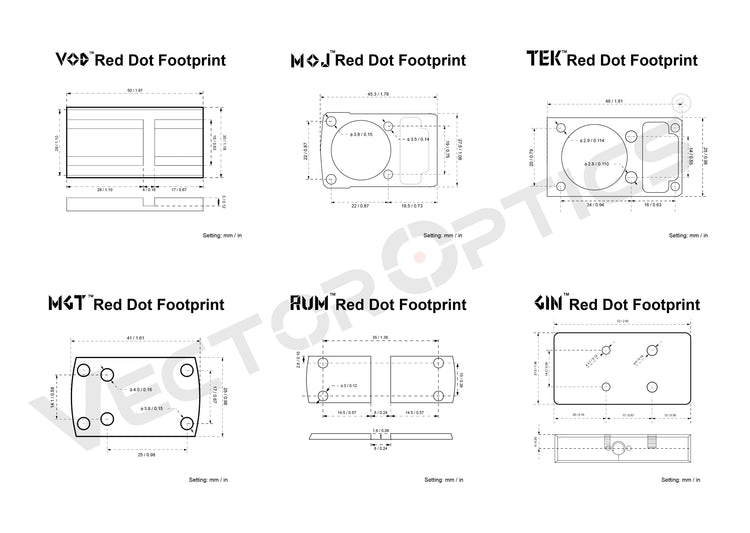

How Vector Optics Classifies Footprints
Vector Optics uses its own naming system for footprints, but each corresponds to a widely used mounting standard from other brands. This means you can match plates and mounts from other manufacturers when the pattern is the same.
| Vector Optics Name | Compatible Industry Standard |
|---|---|
| MOJ | Trijicon RMR® |
| MGT | Shield RMSc / SMS |
| VOD | ACRO® |
| RUM | T-1™ / T-2™ micro-dot |
| GIN | C-More® RTS / STS |
| TEK | Docter / Noblex® |
For some red dots designed for specific pistols, Vector Optics uses SDM (Slide Direct Mount) so no adapter plate is needed.
Universal Adapter Options
To bridge different footprints and firearm types, Vector Optics offers several universal adapters:
| Adapter Model | Compatible Footprints | Application |
|---|---|---|
| SCFRM-21 Universal Adapter | MOJ / MGT / GIN / TEK | CZ 75 Shadow®, CZ 75 SP-01®, CZ P-10 C® |
| SCFRM-29 45° Offset Mount | MOJ / MGT / GIN / TEK | Picatinny rail offset |
| SCFRM-GK10 2-in-1 Adapter | MOJ / MGT | Glock® firearms & airsoft |
| SCFRM-GK11 4-in-1 Adapter | MOJ / MGT / TEK / GIN | Glock® firearms & airsoft |
These adapters make it easier to reuse optics across platforms without needing separate plates for each footprint.
Red Dots by Footprint
Below are tables listing Vector Optics red dot sights grouped by footprint type, along with compatible mounting standards.
MOJ Footprint — Compatible with RMR®
Red dots with this pattern align with the well-known Trijicon RMR® standard
| Model Name | SKU |
|---|---|
| Frenzy FLEX 1x19x28 GenII Titanium | SCRD-T64 |
| Frenzy FLEX 1x24x29 GenII 6MOA | SCRD-76 |
| Frenzy FLEX 1x22x26 MOS | SCRD-36 |
| Frenzy-X FLEX 1x22x26 MOS Multi Reticle | SCRD-M36 |
| Frenzy FLEX 1x22x26 AUT (Auto Sensor) | SCRD-37 |
| Frenzy FLEX 1x22x26 AUT FDE | SCRD-59 |
| VictOptics SRD 1x20x25 (EDC) | RDSL33 |
| V3 1x17x26 3.5MOA, Auto-Off | RDSL25 |
Mounting Accessories
MGT Footprint — Compatible with RMSc / SMS
Designed for compact micro red dots.
| Model | SKU |
|---|---|
| Frenzy-S FM 1x17x24 MIC | SCRD-43 |
| Frenzy-S FA 1x17x21 GenII | SCRD-73 |
| Frenzy-S FM MOS | SCRD-M43 |
| Frenzy-S FLEX 1x19x28 | SCRD-66 |
| Frenzy-S FA 1x17x20 Aspheric | SCRD-68 |
| Frenzy FA 1x17x20 MRT | SCRD-M68 |
| Frenzy-S FM AUT FDE | SCRD-53 |
| Frenzy-S FM AUT Gold | SCRD-55 |
| Victoptics C1 4×32 Prism | OPSL40 |
| VictOptics SRD 1x16x20 Compact | RDSL32 |
Mounting Accessories
VOD Footprint — Compatible with ACRO®
This footprint has a simple central cut rather than traditional sockets.
| Model | SKU |
|---|---|
| Frenzy FA 1x18x22 Enclosed | SCRD-75 |
| Frenzy Plus F3 1x18x20 Solar Multi | SCRD-SM63 |
| Frenzy Plus F3 1x18x20 Enclosed | SCRD-63 |
| VictOptics SRD 1x18x20 VOD | RDSL34 |
Mounting Accessories
-
Plates: SCRDM-10 (Glock®), SCFRM-18 (CZ Shadow® 2), SCFRM-20 (HK® SFP9)
-
Mounts: SCFRM-14, SCFRM-15, SCFRM-17 (Weaver/Picatinny & dovetail)
RUM Footprint — Compatible with T-1™ / T-2™
Often used for tubular or tactical style optics.
| Model / Series | Example SKUs |
|---|---|
| Maverick GenII | |
| Maverick GenIII | |
| Maverick GenIV | |
| Scrapper Series | |
| Paragon Mini Prism | |
| Centurion 1x20 | SCRD-33 |
| SRD 1×20 Graphite | RDSL27 |
| SRD 1×20 | RDSL28 |
Mounting
-
SCPSM-01 (cantilever Picatinny)
-
SCPSM-02 (low Picatinny)
GIN Footprint — Compatible with C-More® RTS / STS
Large footprint for maximal field of view.
| Model | SKU |
|---|---|
| Frenzy Plus F3 1x22x32 Quick Release | SCRD-65 |
| Frenzy Plus F3 1x22x32 Solar | SCRD-SM44 |
| Frenzy FLEX 6MOA | SCRD-79 |
TEK Footprint — Compatible with Docter / Noblex®
A footprint matching the Docter/Noblex standard.
| Model | SKU |
|---|---|
| Frenzy FM 1x17x24 | SCRD-19II |
| Frenzy FM 1x17x24 Coyote FDE | SCRD-F19II |
| Frenzy FM 1x17x24 Green Dot | SCRD-G19II |
| Frenzy FM 1x20x28 3 MOA | SCRD-35 |
| Frenzy FM 1x20x28 6 MOA | SCRD-40 |
| SPX V3 1x22 Weaver | RDSL16 |
| SPX V3 1x17x23 Dovetail 3.5MOA | RDSL18 |
Mounting Accessories
SDM — Slide Direct Mount Red Dots
Certain models are made to mount directly to slides without adapter plates.
| Model | SKU |
|---|---|
| Frenzy FA 1x16x21 Standard MOS | SCRD-81 |
| Frenzy FA 1x20x24 CZ® P-10 / Shadow 2 OR | SCRD-82 |
SDM simplifies installation when your pistol has a footprint cut that matches.
Summary
Knowing the footprint of your red dot allows you to choose the correct plate or mount and ensures safe, secure installation. Vector Optics’ naming can be translated directly to familiar industry patterns like RMR®, RMSc®, ACRO®, T-1™, C-More®, and Doctor/Noblex®. Their product lineup supports all major footprints, with plenty of adapters and mounts to fit various firearm platforms.
