PRODUCT FEATURES
· Precise Long-Range Accuracy: 3 MOA Dot with 22 × 26 mm Large Window Supports Confident Target Engagement Beyond 50 Yards
· Ultra-Slim Profile Design: 7 mm / 0.3 in Body Profile Preserves Co-Witness Capability with Factory Pistol Iron Sights Without Obstruction
· Intelligent Battery Efficiency: Motion Sensor Auto Shutoff System Extends Operating Time and Minimizes Unnecessary Power Drain
· Rugged Weather Resistance: IPX6 Waterproof Construction Maintains Reliable Function During Heavy Rain and Demanding Outdoor Use
· Broad Platform Compatibility: MOJ Footprint Compatible w/ the RMR Pattern Supports Glock® 17/19 MOS and Walther PDP Platforms
SPECIFICATIONS
See our Terminology Guide for detailed explanations of each specification.
|
Magnification |
N/A |
|
Window Lens Size |
22x26 mm |
|
Parallax |
Free ( <2MOA ) |
|
Parallax Setting |
N/A |
|
Dot Size/ Reticle |
3 MOA |
|
Dot/ Reticle Color |
Red |
|
Sensor |
Motion Sensor |
|
Click Value |
1 MOA |
|
Elevation Adjustment Range |
45 MOA |
|
Windage Adjustment Range |
45 MOA |
|
Footprint |
Vector Optics MOJ |
|
Mounting Rail |
Weaver |
|
Illumination Setting |
8 Daylight + 2 Night Vision |
|
Battery Type |
CR2032 |
|
Battery Life |
Up to 50,000 hours |
|
Battery Placement |
Bottom |
|
Waterproof |
IPX6 |
|
Shockproof |
1000 G |
|
Working Temperature |
-20~+55° C |
|
Housing Material |
6061-T6 Aluminum Alloy |
|
Mount Material |
6061-T6 Aluminum Alloy |
|
Finish |
Matte Black |
|
Weight (Net) |
30 g / 1.0 oz |
|
Items in the Package |
Retail Package, Weaver Mount, Rubber Lens Cover, Hex Keys and Cleaning Cloth, etc |
DESCRIPTION
The Frenzy is proof that you don’t have to compromise performance on a small sight. Whether it’s topping your AR, shotgun, or pistol, the Frenzy gives you a clear field of view and the bold aiming point you need in high-pressure situations. Crafted from aircraft-grade aluminum, this sight is made to handle abuse.
FOOTPRINT
MOJ Footprint
· Compatible Industry Standard: Trijicon RMR®
· Original Compatible Pistol Optics-Ready (O.R.) Model: GLOCK® Standard MOS Gen4/5 (w/ adapter plate), Walther® PDP (w/ adapter plate), CZ P-10 OR / CZ Shadow 2 - Optics Ready (need an optics ready plate), TAURUS® G3 T.O.R.O (w/ adapter plate), M&P® M2.0 C.O.R.E. (w/ adapter plate), ect.
For more information about FOOTPRINT, please refer to the blog.
MAGNIFIER COMPATIBILITY
Required Mount Setup: VAS™ Red Dot Sight Picatinny Low Mount (SCRA-75) + VAS™ MOJ Footprint Adapter (SCRA-MOJ1)
|
Center Height |
Compatible Magnifier |
SKU |
|
1.34 in / 34.15 mm |
Maverick-III 3x22 MIL Magnifier |
SCMF-31 |
|
Maverick-III 3x22 Magnifier SOP |
SCMF-32 |
|
|
Paragon 3x18 Mini Magnifier |
SCMF-33 |
|
|
Paragon 5x30 Mini Magnifier |
SCMF-34 |
FAQ
How to Mount a Frenzy 1x22x26 Red Dot Sight (SCRD-36) on Glock 17 Gen5 MOS FS？
Video

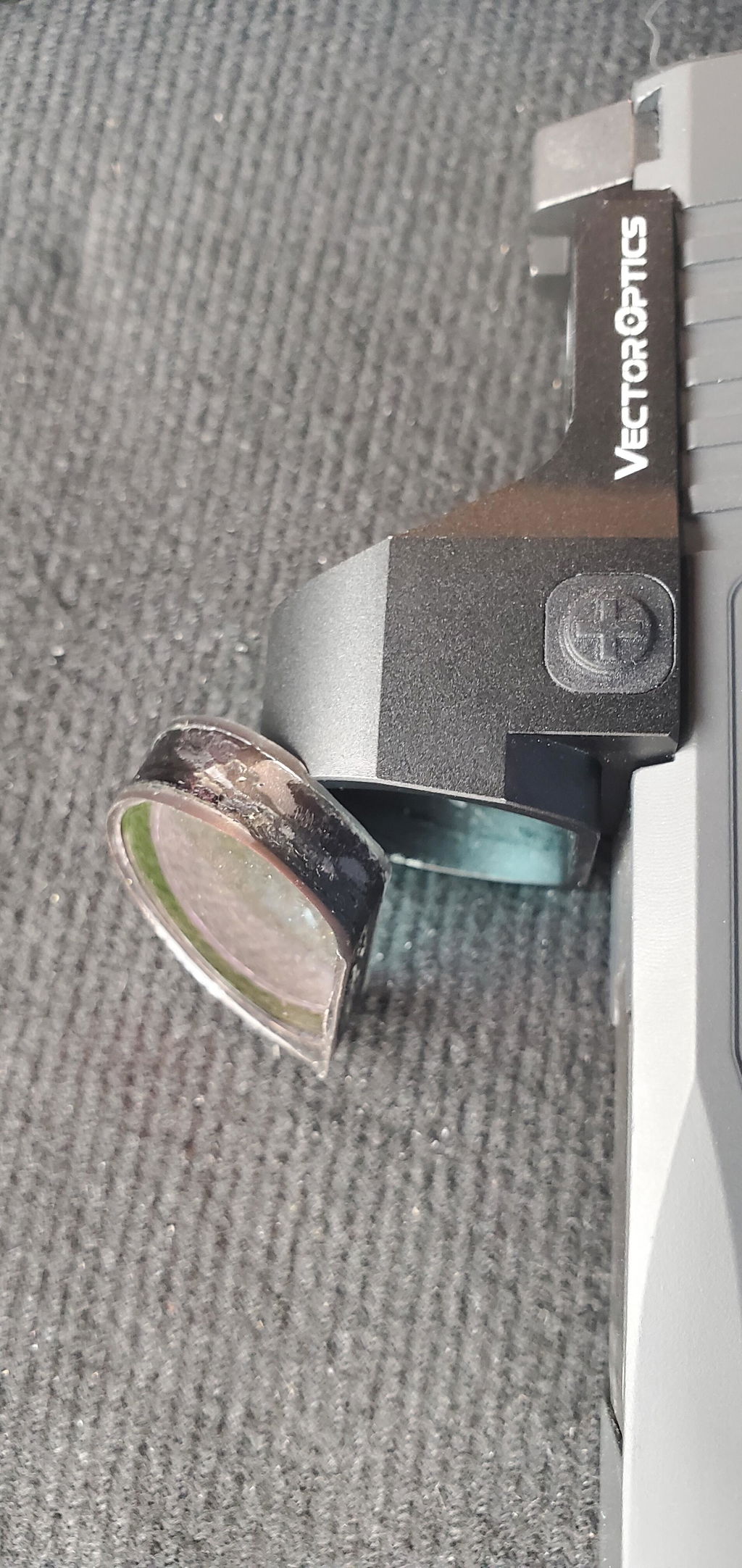

Worked fine until the lens fell out after fewer than 200 rounds of 9mm on a glock clone. Could have been a lemon, but I am disappointed in Vector. Be prepared to return it if you get a defective sample.
Working great, never lost zero, the large window really helps
After the lockdown the product came very fast, no fees. Excellent.

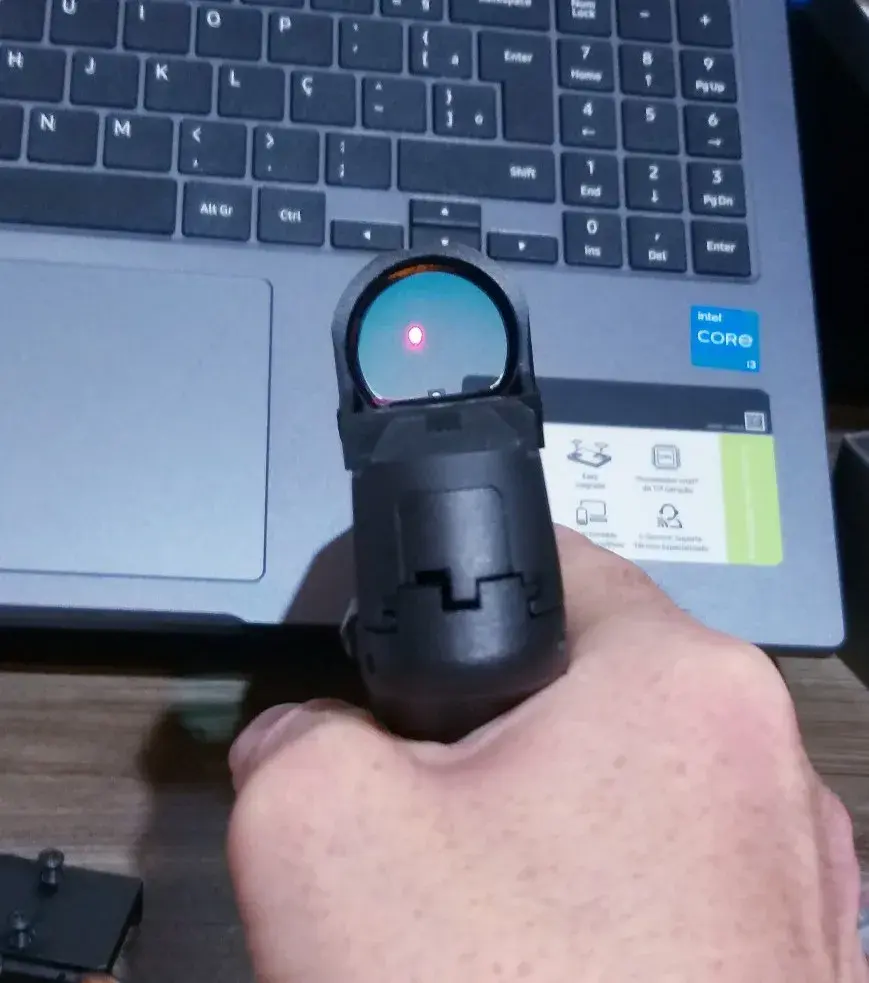

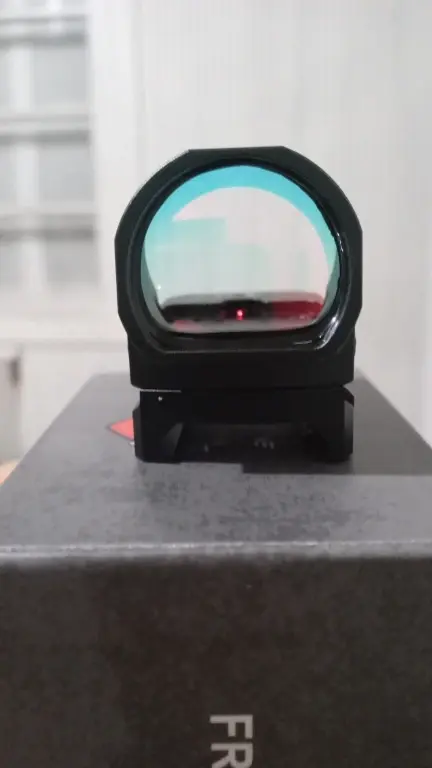

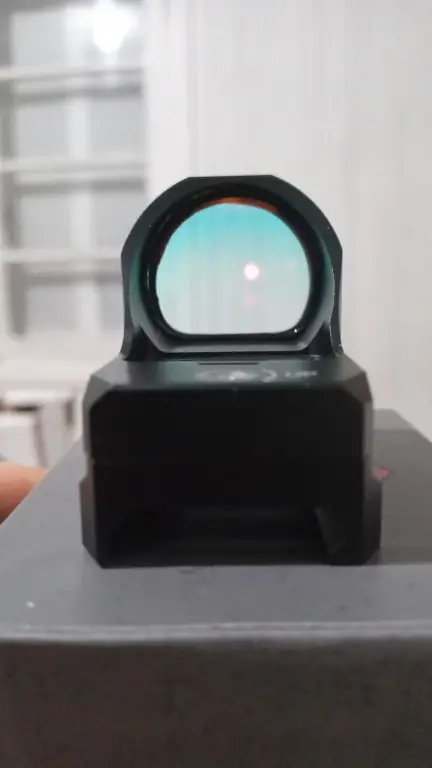

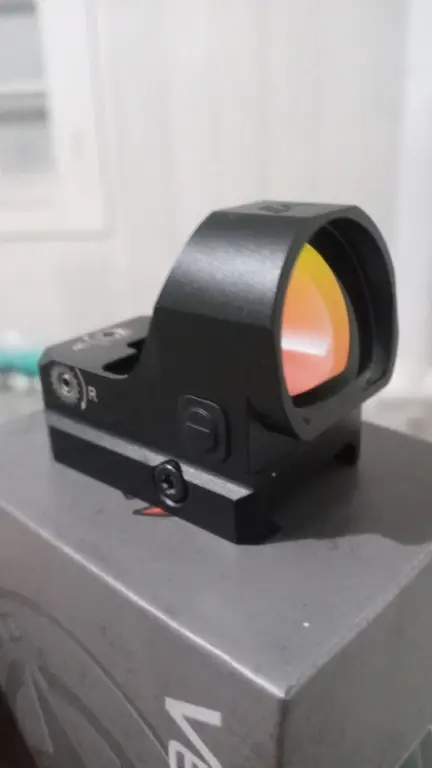

Seller had trouble send at first, but just an extra time if 10 days was enough, after sending the product arrived fast, apparently very good, all features ok, the model MOS alloy with movement, turns itself off after 3 minutes standing and has automatic brightness adjustment, Lack only test in gun now but believe it will be 10!
Dot has held zero on a g19 with rmr cut slide for about 1k rounds, and on a canik mete SFT for about 500 or so rounds. Great window size. Now the cons, the adjustments aren’t tactile at all, and the dot needs two more levels of brightness. It doesn’t get bright enough in the texas sun. I could forgive the adjustment as you only need to set it once(not to mention the price), but the brightness should be better.
Originally purchased to run it on my 9mm, however the optic kept failing under recoil, with dot going in and out. Switched it ro ny .22lr Buckmark, and since it works ok. Not made for anything over .22lr
I have been using vector for the last couple of years and they have always exceeded my expectations. I have never been stranded with a dead battery and the sight picture is as clear as the 1st day I bought this. Buy Buy Buy
Color: SCRD-36
Color: SCRD-36

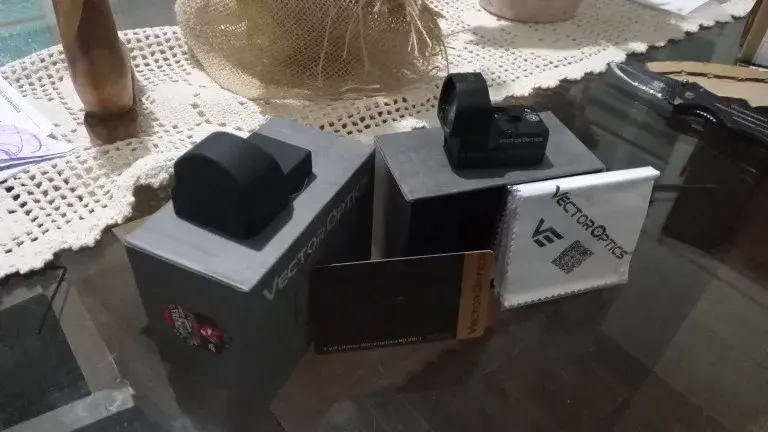

Got everything right!!! Arrived early product original in box top recommend other Simm!!!
Logistics: Seller's Shipping Method
Excellent!
Is this parallax free?
Hi, no, 100yards ＜2 MOA
Good day, I ordered the frenzy-x 1x22x26 MOS together with the prism collimator vector paragon 4x and it is too big on its base, is there a possibility to attach it to the paragon? thank you, have a nice day...
Hi, SCRD-36 is MOJ footpring, which is the same as RMR.Prism scope Paragon 4X with Frenzy Red dot only fit for MAG footprint, which is the same as Shield RMS.Paragon 4x prism scope can be mounted red dot as below items:SCRD-43, SCRD-F43,SCRD-G43,SCRD-M43,SCRD-52,SCRD-53,SCRD-54,SCRD-55,SCRD-50,SCRD-62,SCRD-49,SCRD-56.You can also see the Prism scope Paragon 4x Product information and option
Are the widage & elevation screws a click adjustment
Hi, you can use hex keys to adjust the windage and elevation.
what is the Footprint: Vector Optics MJT equivalent? is it RMR compatible?
Yes, it is RMR footprint.
What model has 6moa and rmr footprint?
We only have one 6moa red dot, and its footprint is Noblex/Docter.Frenzy-X 1x20x28 6MOA Red Dot Sight - Vector Optics - Vector Optics 2007 (vector2007.com)
