SKU: SCTM-61

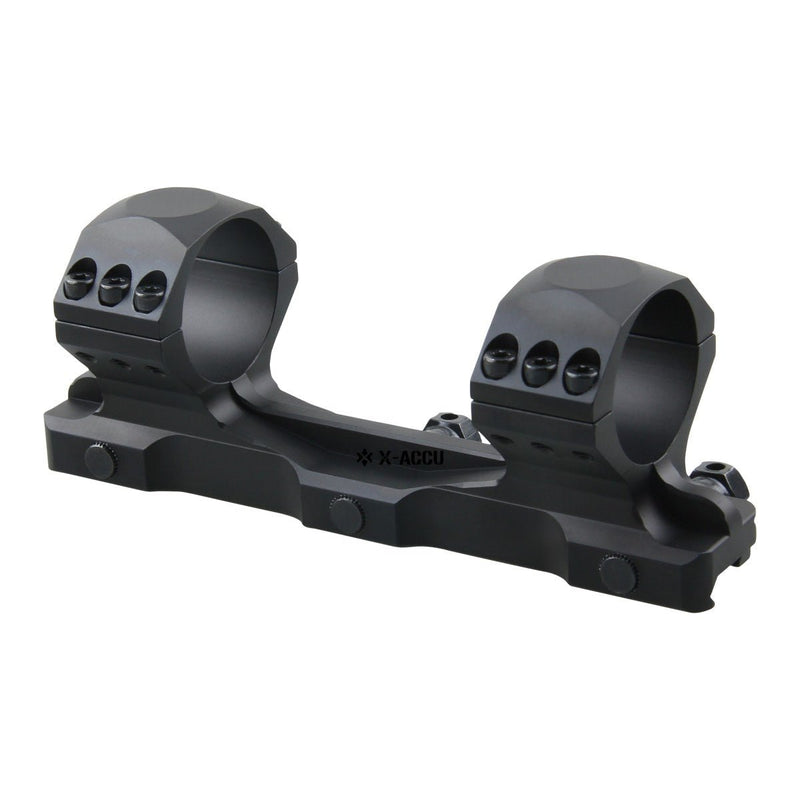

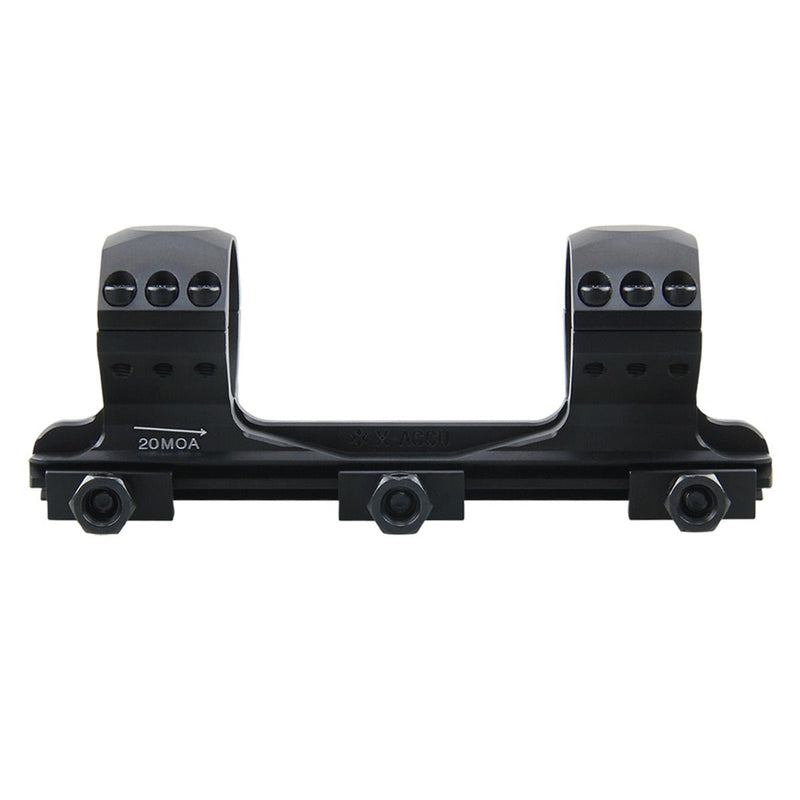

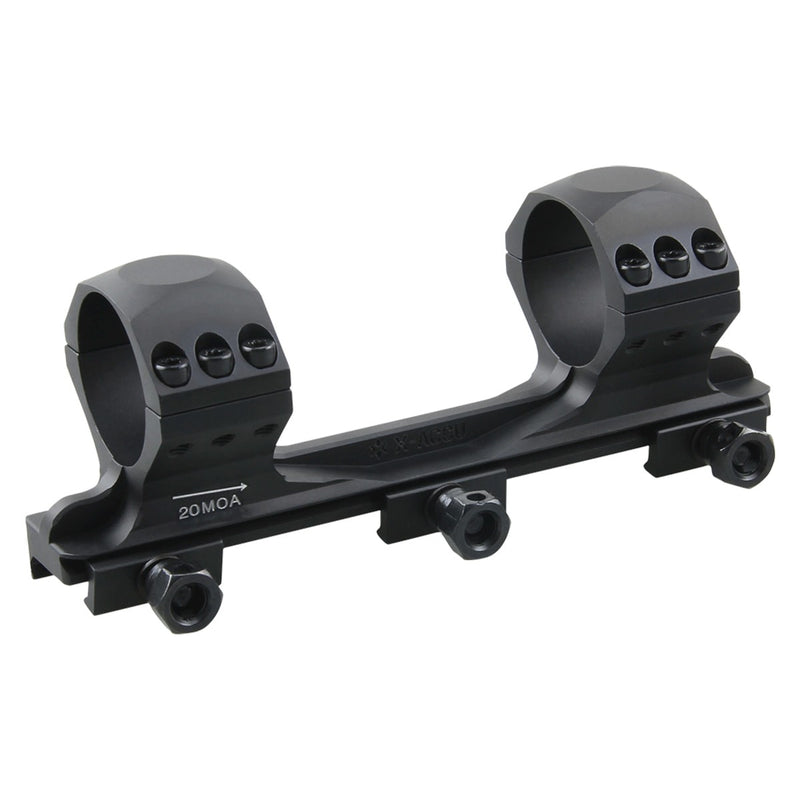

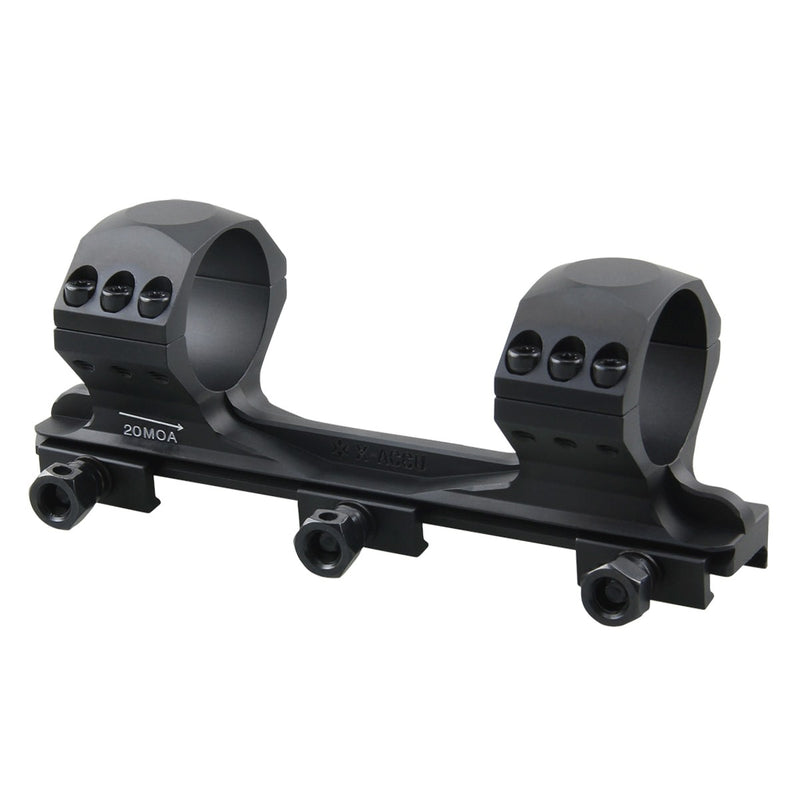

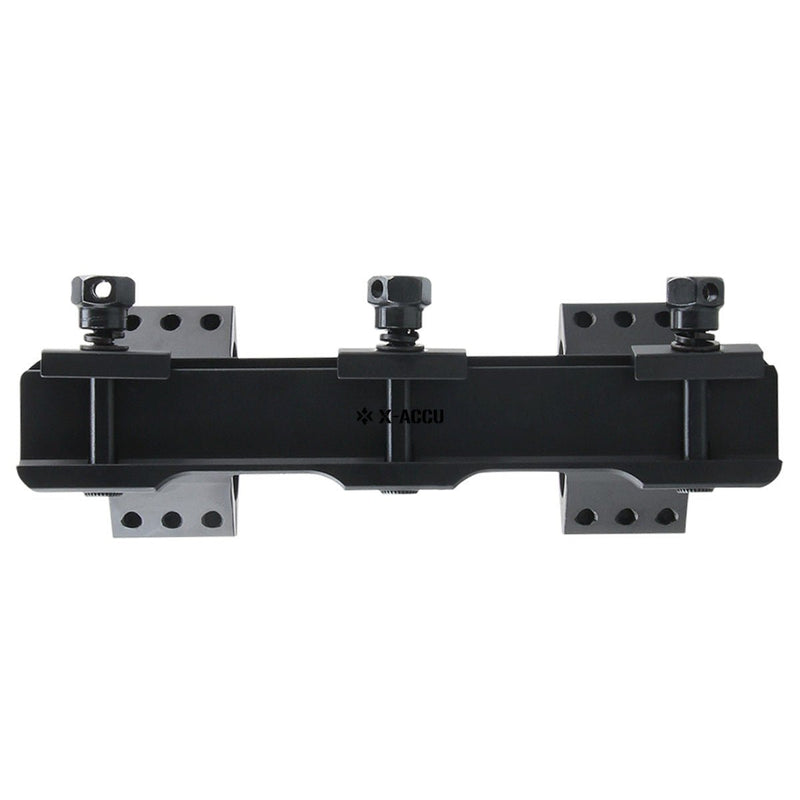

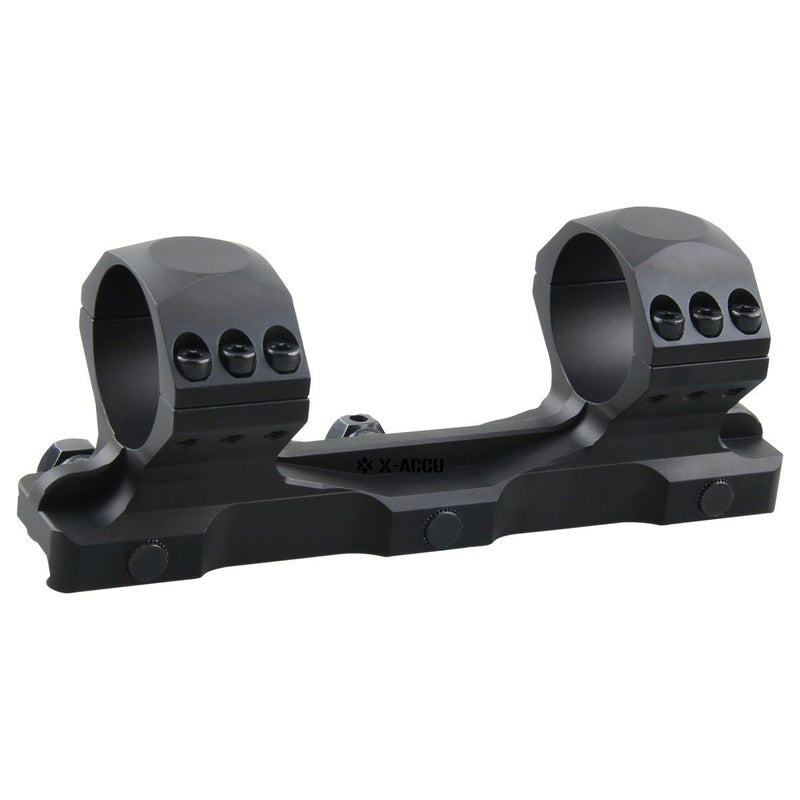

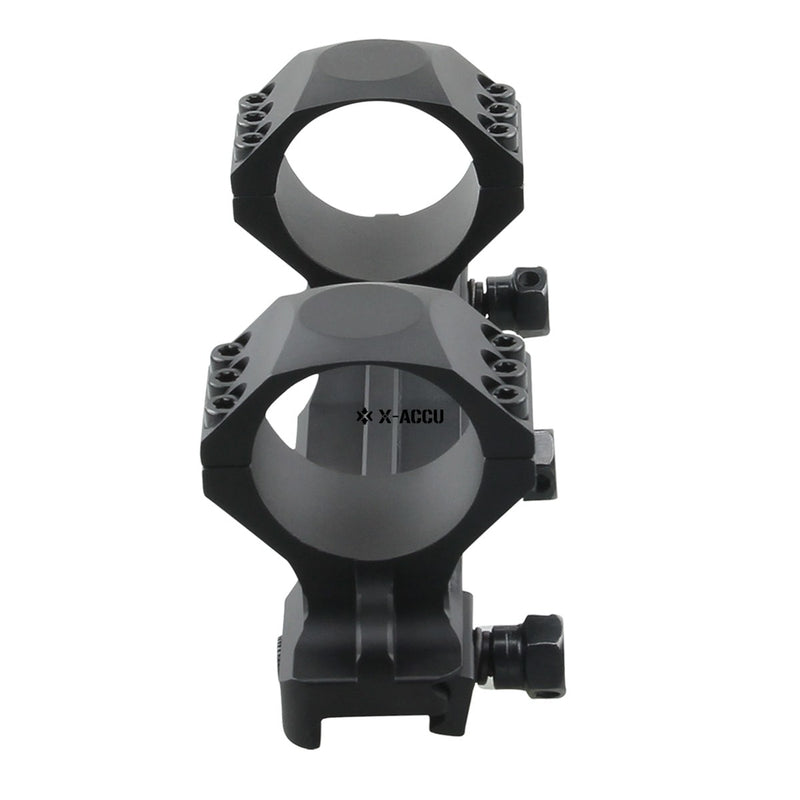

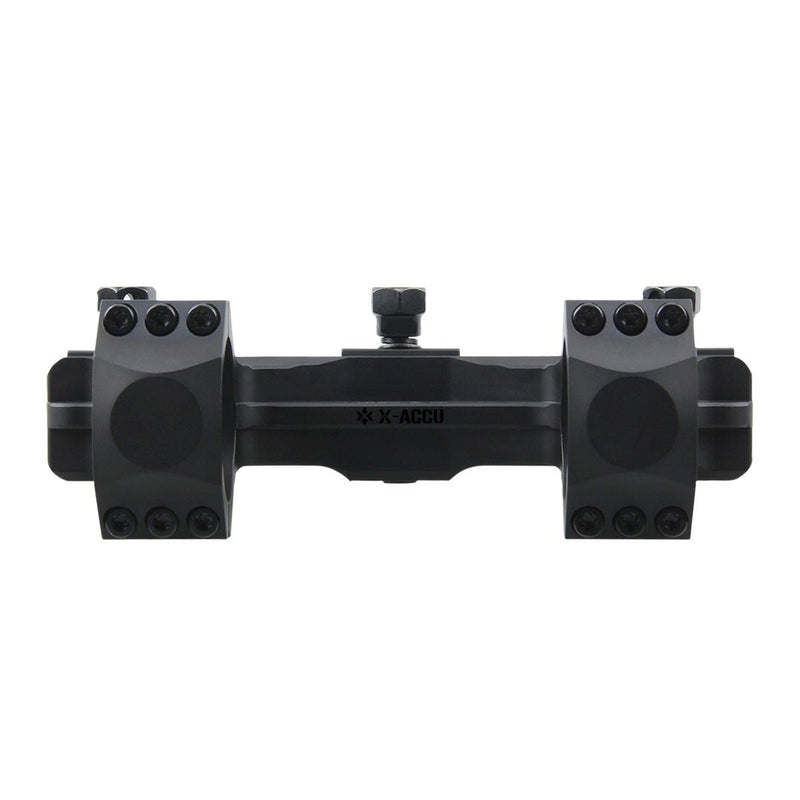

X-Accu 34mm Medium Profile One Piece 20MOA Picatinny Mount

Regular price $32.40 USD
Sale price $32.40 USD Regular price $55.99 USD
Sale Sold out
Unit price
/per
Ships from:
This is a pre order item. We will ship it when it comes in stock.
Feature

· Designed for >500 Meters / Yards Long Range / XLR Shooting, Fit Max 56mm Scope Objective Lens

· 35mm 1.4" Bottom to Ring Center, Six Screws Per Ring, Extremely Accurate w/ Full CNC Machined

· 20MOA 6MIL, Hard Anodizing, 21mm Picatinny Mount w/ 3 Crossing Bolts & Anti-Retreat Rings

· Can Accept Max 45 Inch / Pounds Torque Force for Big Nuts When Installing the Mount on the Picatinny Rail

Specification

· Diameter: 34mm

· Overall Length: 154m / 6.1"

· Overall Height: 59mm / 2.3"

· Mount Length: 154mm / 6.1"

· Ring Width: 50mm / 2.0"

· Central Height: 35mm / 1.4", bottom to center

· Ring Length: 26mm / 1.0"

· Gap Length: 70mm / 2.7"

· Material: 6061-T6 aluminum alloy

· Weight: 250g / 8.8oz

· Mount: Picatinny

· Finish: Hard anodizing in black matte

· Screws per ring: 6

· High-durability aluminum alloy in black matte, designed for big recoil calibers

· Do not use over 18 inch / pounds of torque on the scope rings' screws

· Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail

· 20MOA 6MIL Style and designed for hard and rigorous use

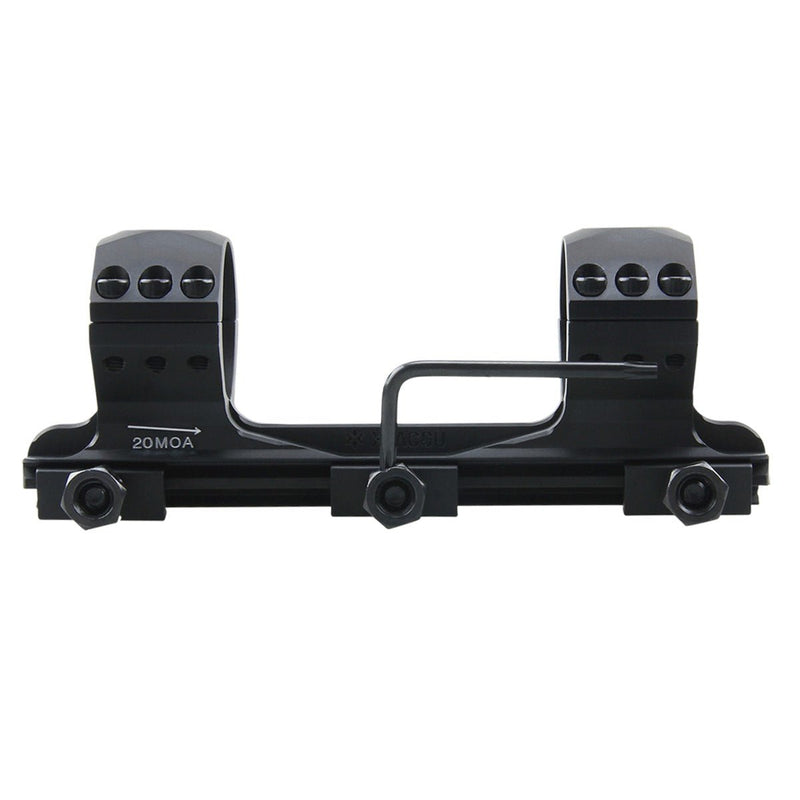

· With hex key and retail package, hex key can be used to fasten the clamp nuts

J
John

Hi, would this medium height mount work with a Vortex Venom (34mm tube, 56mm objective). The centre bell housing is 4mm lower than the 34mm tube.

Erica Wilson

Hi, we have tested our 34mm tube, 56mm objective scope Continental x6 5-30x56VCT-34FFP, it can be mounted. You can make a reference.
