Feature
· Rapid Follow-Up and Ranging: FFP VIS-FMIL Etched Glass with Christmas Tree Reticle, Enabling Precise Holdover and BDC Ranging
· Clear and Wide Target View: 44mm Objective with Fully Multi-Coated Glass Delivers Edge-to-Edge Clarity for Faster Target Acquisition

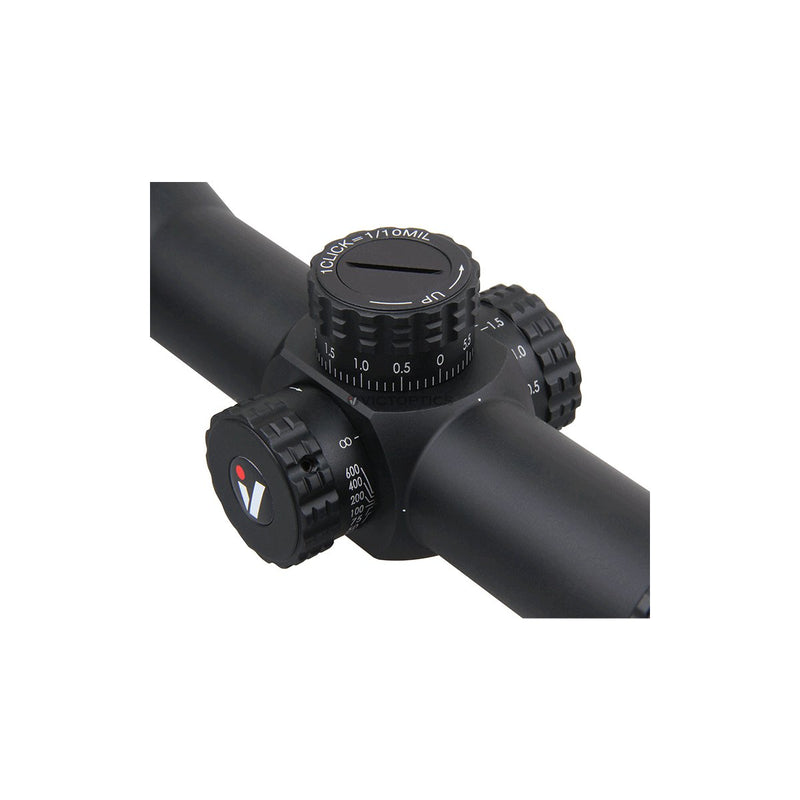

· Secure and Reliable Adjustments: 1/10 MIL Clicks with 15 MIL Elevation Range and Turret Lock Ensure Repeatable Precision
· Enhanced Close and Long-Range Precision: Side Focus from 15 Yards Eliminates Parallax, Optimizing Airgun Accuracy at Any Distance
· Shooting Comfort: Power Ring Lever, Sunshade, and Large Side Wheel Improve Handling, Glare Control, and Ease Of Zoom adjustment
Specification
-
Magnification: 4-16x
-
Objective Lens: 44mm
-
Ocular Lens Dia: 35mm / 1.4 inch
-
Ocular Length: 58mm / 2.3 inch
-
Exit Pupil: 11.0-2.75mm
-
Tube Diameter: 30mm
-
Length: 315mm / 12.4 inch
-
Weight (net): 518g / 18.3oz
-
Eye Relief: 96mm / 3.8 inch
-
Field of View (@100yds): 28.8-7.2 feet
-
Optics Coating: Fully-multi coated
-
Reticle: VIS-FMIL etched glass reticle
-
Click Value: 1/10MIL
-
Evaluation Range: 15MIL
-
Windage Range: 15MIL
-
Parallax Adjustment: 15 Yds to infinite
-
Finish: Black matte
-
Illumination: N/A
-
Exclusive for air gun and .22 LR rimfire etc benchrest shooting and hunting
-
Side focus knob marked 15, 20, 25, 30, 50, 75, 100, 200, 400, 600 yards to infinite
-
Distance between objective lens part and middle turret: 45mm (1.8 inch)
-
Length of middle turret part: 42mm (1.6 inch)
-
Distance between middle turret parts to power ring: 52mm (2.0 inch)
-
Shock tested to 750g, IPX4 water resistant and fully nitrogen purged
-

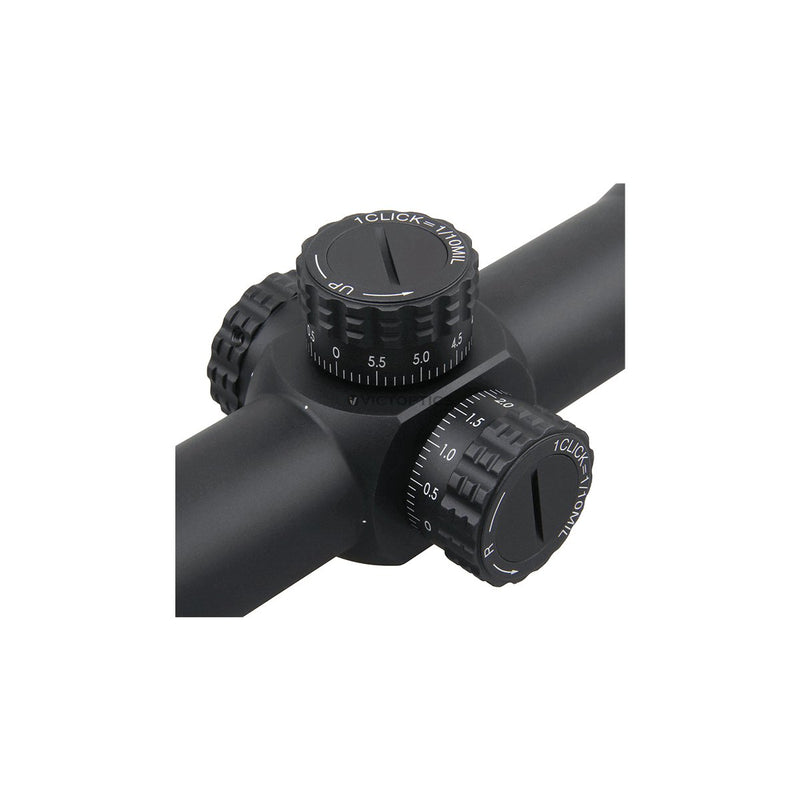

Turret lock system. Pull to adjust, Depress to lock.
-
High quality 6061 T6 aircraft grade aluminum
-
Diopter compensation from fast-focus eyepiece -2 to +2
-

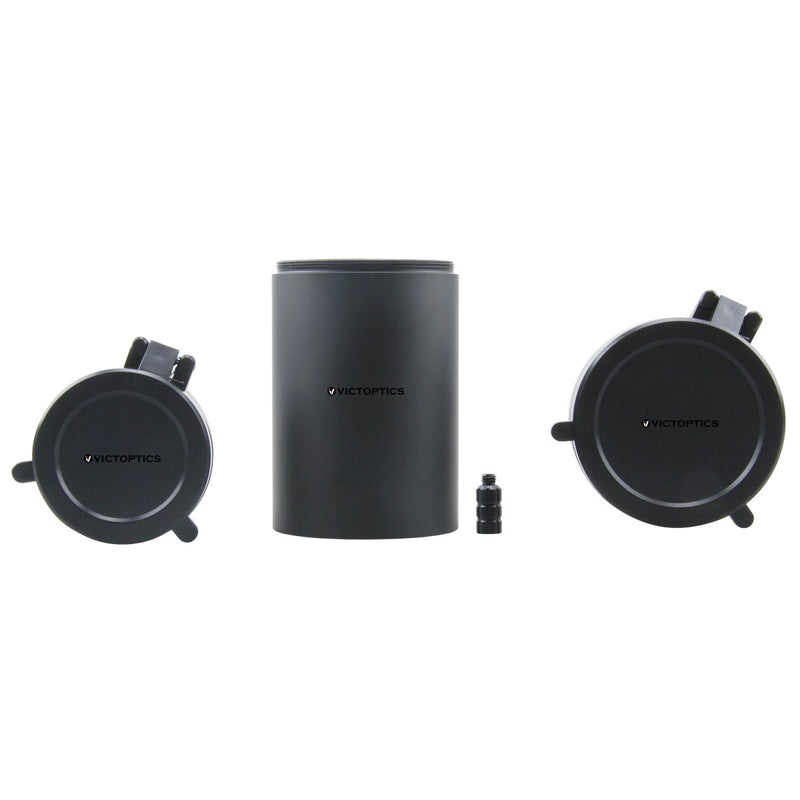

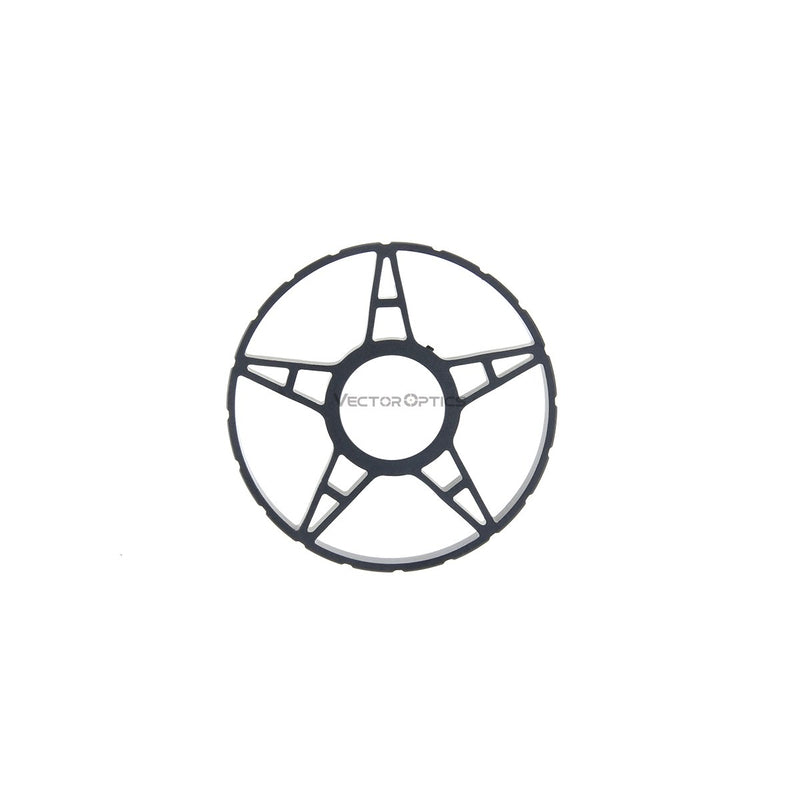

Including items: 30mm weaver rings (default) or dovetail ring (on request only), power ring lever, 3 inch sunshade, big side wheel, cleaning cloth, instruction, lens flip-up caps
