Feature
Digital Night Vision
• Clear Night Vision and Recording: 3x Digital Zoom + 850nm IR Illuminator Enables Human Identification up to 200 Meters in Darkness
• Crisp, Energy-Efficient Imaging: CMOS Camera Sensor Provides Sharp Digital Vision Across All Lighting Conditions
• Sharp Close-Range Focus: Adjustable Objective Lens Allows Precise Observation as Near as 20cm for Detailed Viewing

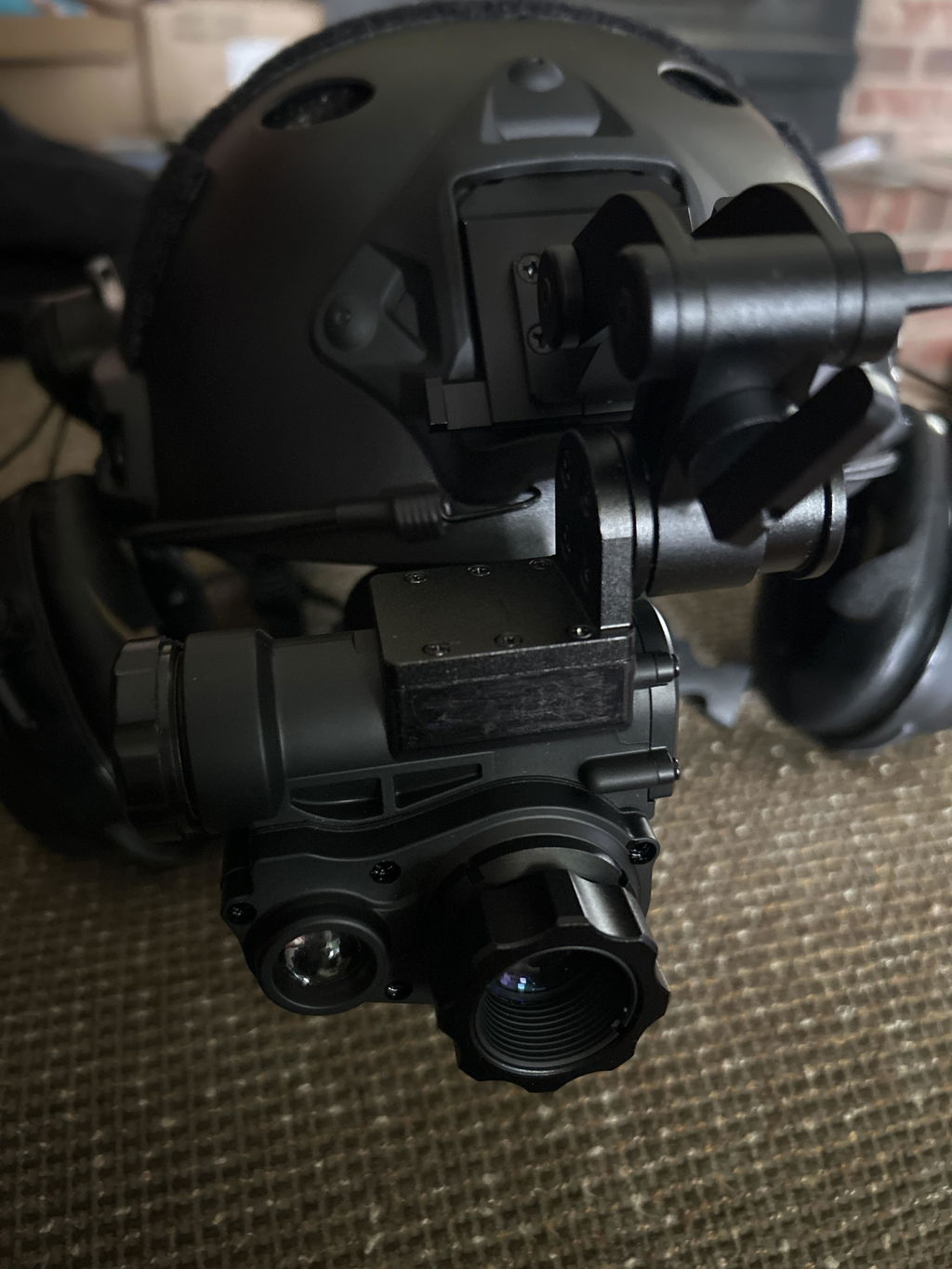

• Helmet-Mount Ready: Lightweight, Rugged Flip-Up Mount with Adjustable Two-Piece Design Ensures Secure and Easy Attachment
Video
Helmet Flip-up Mount Kit
• To Connect OWNV-10 Night Vision onto the Helmet. Made of Alu 6061-T6
• Adjustable, 2 Pcs Combo, Flip-up-down Style, Light Weight, Easy of Use
• Check the video for installation illustration
Specification
1x18 Digital Day & Night Helmet Head Mounted HD
- Optical Magnification: 1x
- Objective Lens: 18mm
- Length: 98mm 3.8in
- Height: 58mm 2.3in
- Width: 80mm 3.1in
- Digital Zoom: 3x
- Focal Length: 20mm 0.8in
- Lens Coating: Ultra wide band infrared anti-reflection film
- Optical Resolution: ＜11"
- Detection Range in Dim Light: 0.2 meters to 300 meters
- Detection Range in Darkness: 0.2 to 200 meters (with IR illuminator ON)
- Observation Range in Darkness: 0.2 to 100 meters (with IR illuminator ON)
- Camera Sensor Type: CMOS
- Camera Resolution: 1920x1080
- Field of View: 25.5°x14.5°
- Eye Relief: 20mm
- Display Resolution: 1280x720 LCOS
- Objective Lens Focus: 20cm to infinite
- Spectrum Range: 450-1100nm
- Diopter Adjustment: -5 ~ +5
- LED IR Illuminator Wavelength: 850nm
- LED IR Illuminator Power: 1W (3 levels)
- Min Illumination: 0.0001 Lux
- Photo Mode: Yes
- Video Mode: Yes
- APP: WIFICAMERA (Android)
- Material: ABS Plastic + Rubber
- Battery Type: 1 pc 3.7V rechargeable 18650 lithium(not included)
- Battery Runtime: 5 hours IR OFF / 3 hours IR ON
- Operating Temperature Range: -40 to 55℃
- Electronic compass
- Automatic white balance
- Display Background: white-&-black, green
- Weight (with battery): 245g 8.6oz
- Automatic or manual control display screen brightness
- IP66 water proof
- Accessories: cleaning cloth, battery, charger set, lens cover, instruction etc
- Need OWNV-MT10 helmet flip-up mount kit for installation
Helmet Flip-up Mount Kit
- Diameter: 21.5mm 0.85in
- The 1st lever for clamping the cylinder mount
- The 2nd lever mount can control the damping force to flip up and flip down the monocular night vision
- The 3rd lever mount will lock the position between helmet and whole mounting system
- Weight: 130g / 4.6in
- Made of Alu alloy 6061-T6
- Quick detach and release mount to the helmet
- 2 pcs combo, easy of use
- Check video for installation illustration
Questions & Answers
Have a Question?
-
What is the display refresh rate / fps? How about delay? Is this device usable for movement/navigation?
Hi, the display refresh rate is 30 Hz. It is normal, looks natural and the gaps are clearly visible. It has Electronic Compass that uses electronic sensors to determine the direction or heading relative to the Earth's magnetic field.
