Feature

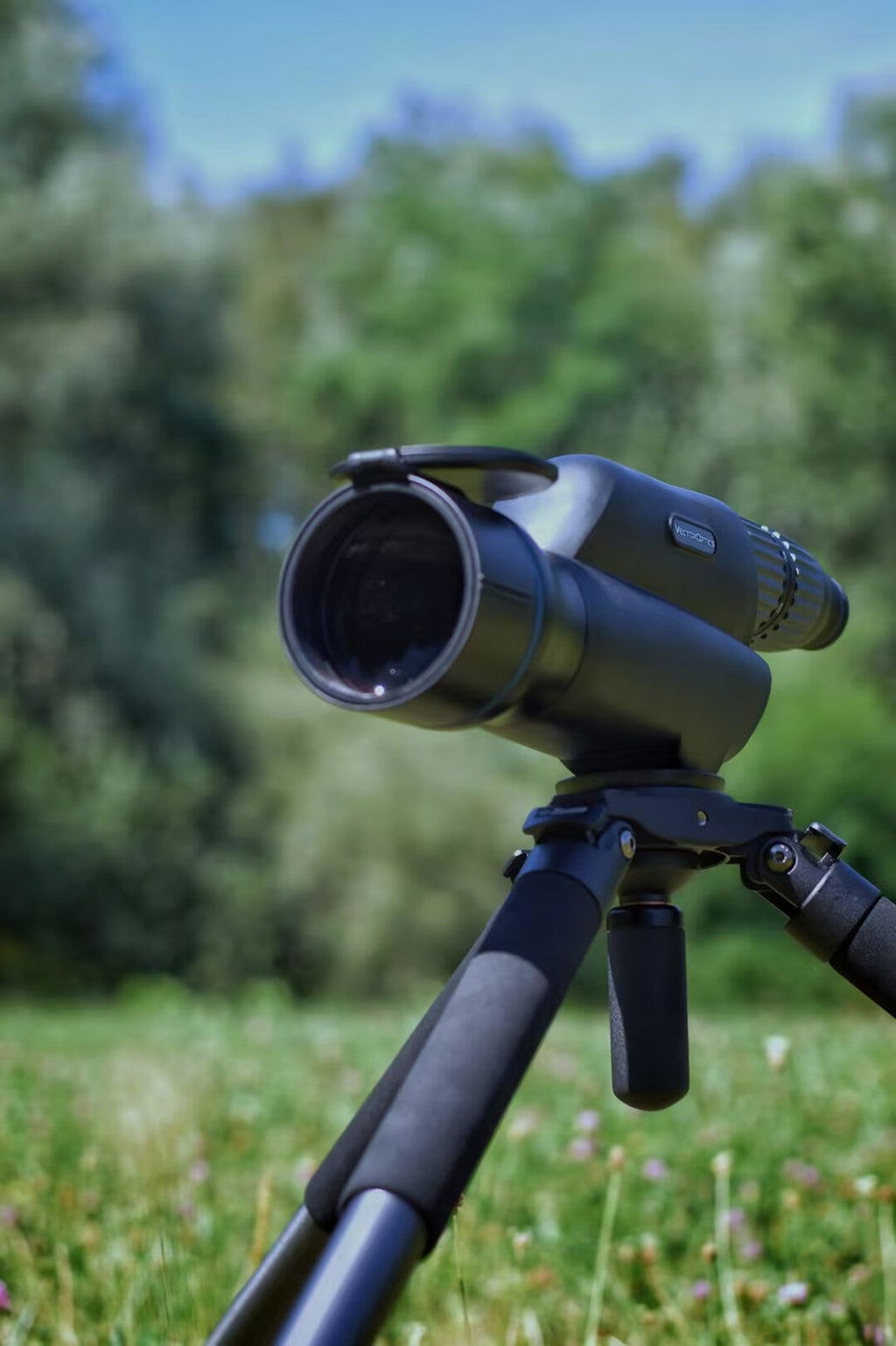

- First Focal Plane Spotting Scope w/ Ranging Reticle. 80mm Objective Lens.
- ED Glass, Extra-low Dispersion, Superior Clarity Resolution.
- Fully-multi Coated. IP67 Water Resistant. Heavy-duty Magnesium-alloy Die Casting.
- Rubber Armed to Protect against Crashes and Scratches.
Size
Specification
| Specification | Details |
|---|---|
| Magnification: | 20-60x |
| Body Style: | Magnesium-alloy die casting |
| Objective Lens Dia.: | 80mm / 3.15in |
| Ocular Lens Dia.: | 40mm / 1.57in |
| Overall Length: | 390mm / 15.35in |
| Weight: | 2227 g / 78.56 oz |
| Field angle: | 2.3°~0.8° |
| Field of view: | 12.0-4.2ft @ 100yds |
| Field of view: | 4.0-1.4m @ 100m |
| Exit Pupil Dia.: | 4.0-1.3mm |
| Near Focus: | 10m |
| Eye-Relief: | 30mm |
| Relative Brightness: | 16~1.69 |
| Optical Material: | All Lens and Prism are made of Optical Glass |
| Coating: | Fully Multi Coated |
| Surface Treatment: | Rubber and Paint |
| Resolving Power: | 3.5" |
| Focusing System: | Internal Focus |
| Water Resistant: | IP67 |
| Environmental: | Fill nitrogen, waterproof and fogproof. |
| Eyecups: | Twist up |
| Accessory: | Softbag, manual, and lens cleaning cloth. |
Video
Reticle
Product Manual
The first focal plane reticle is a practical addition, especially when using the scope for distance estimation. The controls are straightforward, and the overall design feels well suited to more deliberate observation sessions.
Went long range shooting . Could spot bullet holes ( 30 cal.) at 333 yds . in black target . At 558 yds could plainly see lines and numbers on the rings but couldn't make out any bullet holes . Extremely impressed ! It is big and heavy but fine for range work .
Instructions with the scope didn't have the ocular adjustment. once I figure that out the scope is very clear and the reticle is great for helping spot misses. I upgraded from a Leupold 15-30x50 scope and this is clearer at low power, and has way more high end power for a spotter. Very heavy, but thats not a problem for mounting on a tripod and parking it at a match to spot misses.
