Feature

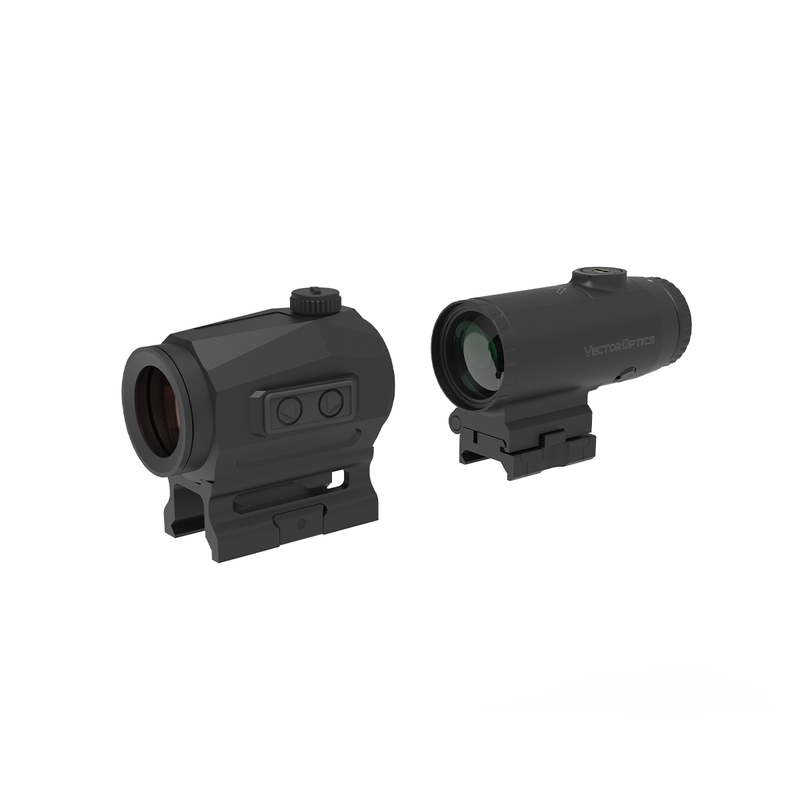

Scrapper 1x25 Solar Power Multi Reticle
· Integrated Solar Panels Utilize Sunlight as a Backup Energy Source Even if the Battery Depletes
· Motion Sensor Feature, Automatically Powers On/Off No Worry to Forget to Switch Off the Sight
· 8-Level Red Illuminated Reticle with 2 NV Modes, Adaptable to Various Backgrounds
· Multi-Reticle Options, 2 MOA Dot and Crosshair Circle for Diverse Shooting Scenarios
· With Low & Riser Mount for Picatinny Rail, Absolute Co-witness Height for More Intuitive Aiming
· IP67 Dustproof & Waterproof Enclosed Design Allows to Use in All Weather Conditions
SPECIFICATIONS
| Specification | Details |
|---|---|
| Magnification: | N/A |
| Window Lens Size/ Objective Lens Size: | 25 mm |
| Eye Relief: | N/A |
| Parallax: | <1 MOA @ 100 yards |
| Parallax Setting: | 100 yards |
| Dot Size / Reticle: | 2 MOA Dot, 45 MOA Circle, 56 MOA Crosshair |
| Dot/ Reticle Color: | Red |
| Sensor: | Motion Sensor |
| Click Value: | 1 MOA |
| Elevation Adjustment Range: | ≥ 90 MOA |
| Windage Adjustment Range: | ≥ 90 MOA |
| Footprint: | N/A |
| Mounting Rail: | Weaver |
| Illumination Setting: | 8 levels + 2 NV levels |
| Battery Type (Not Include): | CR2032 |
| Battery Life: | Up to 180,000 hours |
| Battery Placement: | N/A |
| Waterproof: | IP67 |
| Shockproof: | 800 G |
| Working Temperature: | -20~+50° C |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Mount Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Weight (Net): | 190 g / 6.7 oz |
| Items in the Package: | Retail Package, Low & Riser Weaver Mount, Rubber Lens Cover, Hex Keys and Cleaning Cloth, etc |
RED DOT COMPATIBILITY
SCMF-33 Paragon 3x18 Mini Magnifier
| Red Dot Series | Product Name | SKU | Mounting | |
| Direct Fit | Requires Riser | |||
| Scrapper | Scrapper 1x22 Red Dot Sight | SCRD-45 | √ | |
| Scrapper 1x22 Solar Power Multi Reticle Red Dot Sight | SCRD-SM45 | |||
| Scrapper 1x25 Red Dot Sight | SCRD-46 | √ | ||
| Scrapper 1x25 Solar Power Multi Reticle Red Dot Sight | SCRD-SM46 | |||
| Scrapper 1x29 Red Dot Scope | SCRD-47 | √ | ||
| Scrapper 1x20 Nano Red Dot Sight | SCRD-69 | √ | ||
| Scrapper 1x25 Nano Enclosed Red Dot Sight | SCRD-74 | √ | ||
| Frenzy Plus | Frenzy Plus F3 1x18x20 Enclosed Reflex Sight | SCRD-63 | +SCFRM-15 | |
| Frenzy Plus F3 1x18x20 Enclosed Sight Solar Power Multi-Reticle | SCRD-SM63 | |||
| Frenzy Plus 1x18x20 Enclosed Reflex Sight Coyote FDE | SCRD-F63 | |||
| Frenzy Plus F3 1x22x32 Quick Release Red Dot Sight | SCRD-65 | +SCRA-59 0.83" Riser |
||
| Frenzy Plus F3 1x22x32 Red Dot Sight Solar Power | SCRD-SM44 | |||
| Frenzy Plus 1x31x26 Red Dot Sight | SCRD-67 | √ | ||
| Frenzy Plus 1x31x26 Multi-Reticle Red Dot Sight | SCRD-M67 | |||
| Frenzy Plus 1x31x26 Solar Red Dot Sight | SCRD-S67 | |||
| Maverick | Maverick-II Plus 1x22 SOL Solar Power Red Dot Sight | SCRD-PS12 | √ | |
| Maverick-II Plus 1x22 DRT Double-Reticle Red Dot Sight | SCRD-PD12 | √ | ||
| Maverick-II 1x25 GenII Red Dot Sight Motion Sensor | SCRD-72 | √ | ||
| Maverick 1x22 Red Dot Sight S-MIL | SCRD-41 | √ | ||
| Maverick 1x22 S-SOP Red Dot Sight | SCRD-42 | |||
| Maverick 1x22 Rubber Cover Red Dot Sight | SCRD-38 | √ | ||
| Maverick 1x22 Flat Dark Earth Rubber Cover | SCRD-39 | |||
| Maverick-IV 1x20 Mini Rubber Armored Reflex Sight MIL | SCRD-60 | √ | ||
| Maverick-IV 1x20 Mini Rubber Armored Reflex Sight SOP | SCRD-61 | |||
SCMF-34 Paragon 5x30 Mini Magnifier
| Red Dot Series | Product Name | SKU | Mounting | |
| Direct Fit | Requires Riser | |||
| Scrapper | Scrapper 1x22 Red Dot Sight | SCRD-45 | √ | |
| Scrapper 1x22 Solar Power Multi Reticle Red Dot Sight | SCRD-SM45 | |||
| Scrapper 1x25 Red Dot Sight | SCRD-46 | √ | ||
| Scrapper 1x25 Solar Power Multi Reticle Red Dot Sight | SCRD-SM46 | |||
| Scrapper 1x29 Red Dot Scope | SCRD-47 | √ | ||
| Scrapper 1x20 Nano Red Dot Sight | SCRD-69 | √ | ||
| Scrapper 1x25 Nano Enclosed Red Dot Sight | SCRD-74 | √ | ||
| Frenzy Plus | Frenzy Plus F3 1x18x20 Enclosed Reflex Sight | SCRD-63 | √ | |
| Frenzy Plus F3 1x18x20 Enclosed Sight Solar Power Multi-Reticle | SCRD-SM63 | |||
| Frenzy Plus 1x18x20 Enclosed Reflex Sight Coyote FDE | SCRD-F63 | |||
| Frenzy Plus F3 1x22x32 Quick Release Red Dot Sight | SCRD-65 | +SCRA-59 0.83" Riser |
||
| Frenzy Plus F3 1x22x32 Red Dot Sight Solar Power | SCRD-SM44 | |||
| Frenzy Plus 1x31x26 Red Dot Sight | SCRD-67 | √ | ||
| Frenzy Plus 1x31x26 Multi-Reticle Red Dot Sight | SCRD-M67 | |||
| Frenzy Plus 1x31x26 Solar Red Dot Sight | SCRD-S67 | |||
| Maverick | Maverick-II Plus 1x22 SOL Solar Power Red Dot Sight | SCRD-PS12 | √ | |
| Maverick-II Plus 1x22 DRT Double-Reticle Red Dot Sight | SCRD-PD12 | √ | ||
| Maverick-II 1x25 GenII Red Dot Sight Motion Sensor | SCRD-72 | √ | ||
| Maverick 1x22 Red Dot Sight S-MIL | SCRD-41 | √ | ||
| Maverick 1x22 S-SOP Red Dot Sight | SCRD-42 | |||
| Maverick 1x22 Rubber Cover Red Dot Sight | SCRD-38 | √ | ||
| Maverick 1x22 Flat Dark Earth Rubber Cover | SCRD-39 | |||
| Maverick-IV 1x20 Mini Rubber Armored Reflex Sight MIL | SCRD-60 | √ | ||
| Maverick-IV 1x20 Mini Rubber Armored Reflex Sight SOP | SCRD-61 | |||

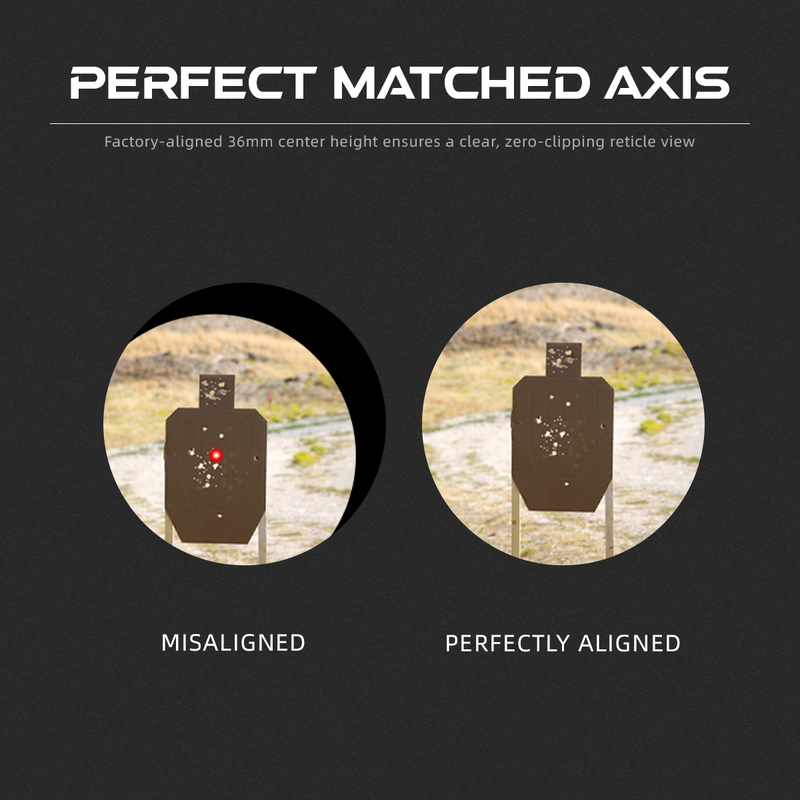

PAIRING
Red Dot & Magnifier Compatibility — SCMF-33 (1.40 in / 35.6 mm)
|
Brand |
Model |
Center Height |
Compatibility |
|
Holosun |
HS510C |
1.41 in / 35.8 mm |
Direct Fit |
|
HS512C |
1.41 in / 35.8 mm |
Direct Fit |
|
|
AEMS (Advanced Enclosed Micro Sight) |
1.63 in / 41.4 mm |
Use with Included Riser |
|
|
HS403 / HS503G |
1.63 in / 41.4 mm |
Use with Included Riser |
|
|
ARO CORE / ARO EVO |
1.63 in / 41.4 mm |
Use with Included Riser |
|
|
HM3X |
1.41 in / 35.8 mm |
Direct Fit |
|
|
HM3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
EOTech |
XPS2 / XPS3 |
1.50 in / 38 mm |
Use with Included Riser |
|
G33 |
1.50 in / 38 mm |
Use with Included Riser |
|
|
G34 |
1.50 in / 38 mm |
Use with Included Riser |
|
|
Aimpoint |
PRO® (Patrol Rifle Optic) |
1.50 in / 38 mm |
Use with Included Riser |
|
Micro T-2 / H-2 |
1.50 in / 38 mm |
Use with Included Riser |
|
|
Duty RDS |
1.50 in / 38 mm |
Use with Included Riser |
|
|
3XMag-1 / 3X-P |
1.50 in / 38 mm |
Use with Included Riser |
|
|
SIG SAUER |
ROMEO5™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
ROMEO4T™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
|
Lower 1/3 Co-Witness: 1.63 in / 41.4 mm |
Use with Included Riser |
||
|
SIG JULIET3 |
1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG JULIET3 Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
Vortex |
Micro3X |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
Lower 1/3 Co-Witness: 1.63 in / 41.4 mm |
Use with Included Riser |
||
|
Triumph 2 |
Lower 1/3 Co-Witness: 1.57 in / 40 mm |
Use with Included Riser |
|
|
AMG UH-1 Gen II |
Lower 1/3 Co-Witness: 1.57 in / 40 mm |
Use with Included Riser |
|
|
Primary Arms |
SLx 3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
Red Dot & Magnifier Compatibility — SCMF-34 (1.40 in / 35.6 mm)
|
Brand |
Model |
Center Height |
Compatibility |
|
Holosun |
HS510C |
1.41 in / 35.8 mm |
Direct Fit |
|
HS512C |
1.41 in / 35.8 mm |
Direct Fit |
|
|
AEMS (Advanced Enclosed Micro Sight) |
1.63 in / 41.4 mm |
Use with Included Riser |
|
|
HS403 / HS503G |
1.63 in / 41.4 mm |
Use with Included Riser |
|
|
ARO CORE / ARO EVO |
1.63 in / 41.4 mm |
Use with Included Riser |
|
|
HM3X |
1.41 in / 35.8 mm |
Direct Fit |
|
|
HM3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
EOTech |
XPS2 / XPS3 |
1.50 in / 38 mm |
Use with Included Riser |
|
G33 |
1.50 in / 38 mm |
Use with Included Riser |
|
|
G34 |
1.50 in / 38 mm |
Use with Included Riser |
|
|
Aimpoint |
PRO® (Patrol Rifle Optic) |
1.50 in / 38 mm |
Use with Included Riser |
|
Micro T-2 / H-2 |
1.50 in / 38 mm |
Use with Included Riser |
|
|
Duty RDS |
1.50 in / 38 mm |
Use with Included Riser |
|
|
3XMag-1 / 3X-P |
1.50 in / 38 mm |
Use with Included Riser |
|
|
SIG SAUER |
ROMEO5™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
ROMEO4T™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
|
Lower 1/3 Co-Witness: 1.63 in / 41.4 mm |
Use with Included Riser |
||
|
SIG JULIET3 |
1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG JULIET3 Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
Vortex |
Micro3X |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
Lower 1/3 Co-Witness: 1.63 in / 41.4 mm |
Use with Included Riser |
||
|
Triumph 2 |
Lower 1/3 Co-Witness: 1.57 in / 40 mm |
Use with Included Riser |
|
|
AMG UH-1 Gen II |
Lower 1/3 Co-Witness: 1.57 in / 40 mm |
Use with Included Riser |
|
|
Primary Arms |
SLx 3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
VIDEOS
Download
Questions & Answers
Have a Question?
-
Dar certo na CCT .40?
Sim
-
Hello my friend! I wonder, what magnifer and mount will feet to SCRD-SM46 Thanks a lot for your answer!
Hi,
These magnifiers will fit perfectly SCRD-SM46.
SCMF-10/14/15
SCMF-31/32/33
