Feature

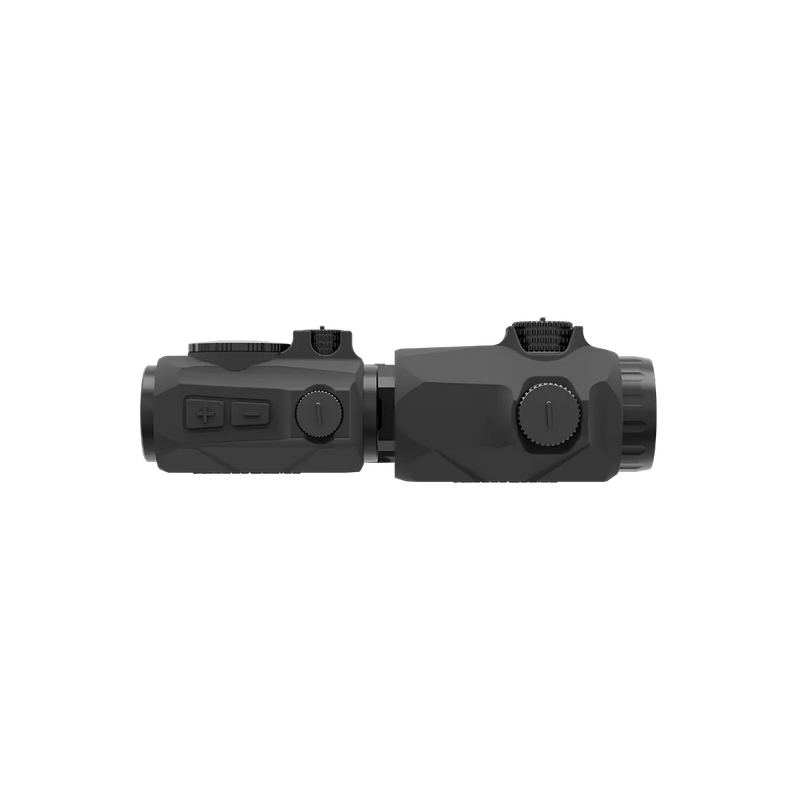

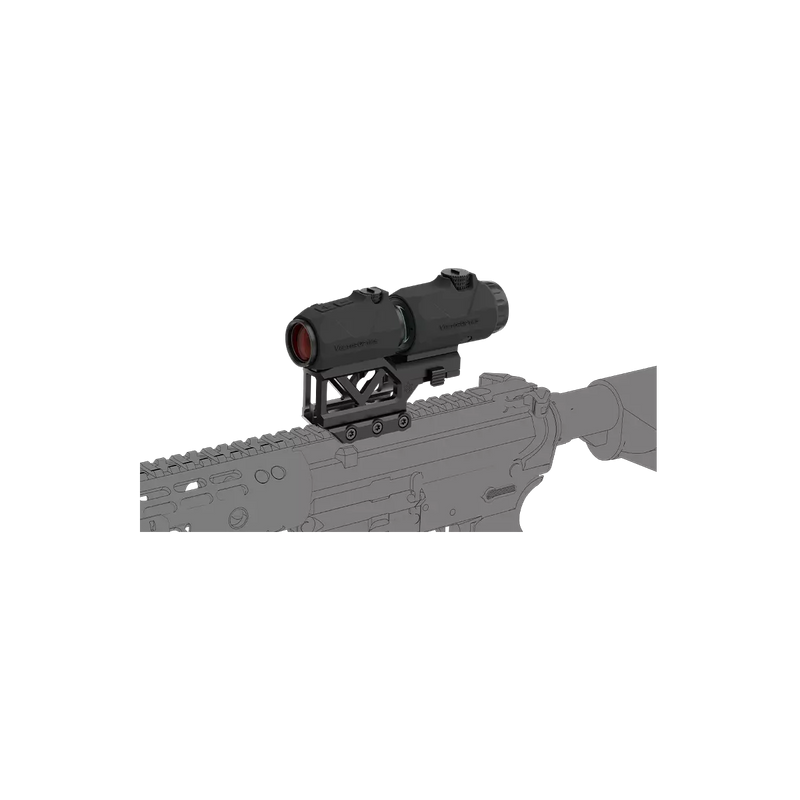

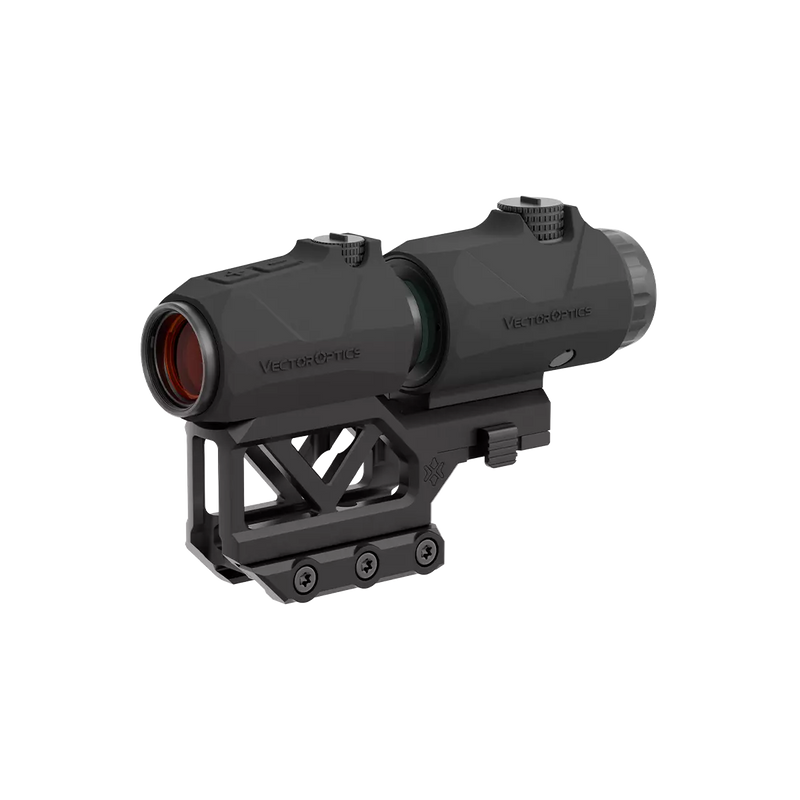

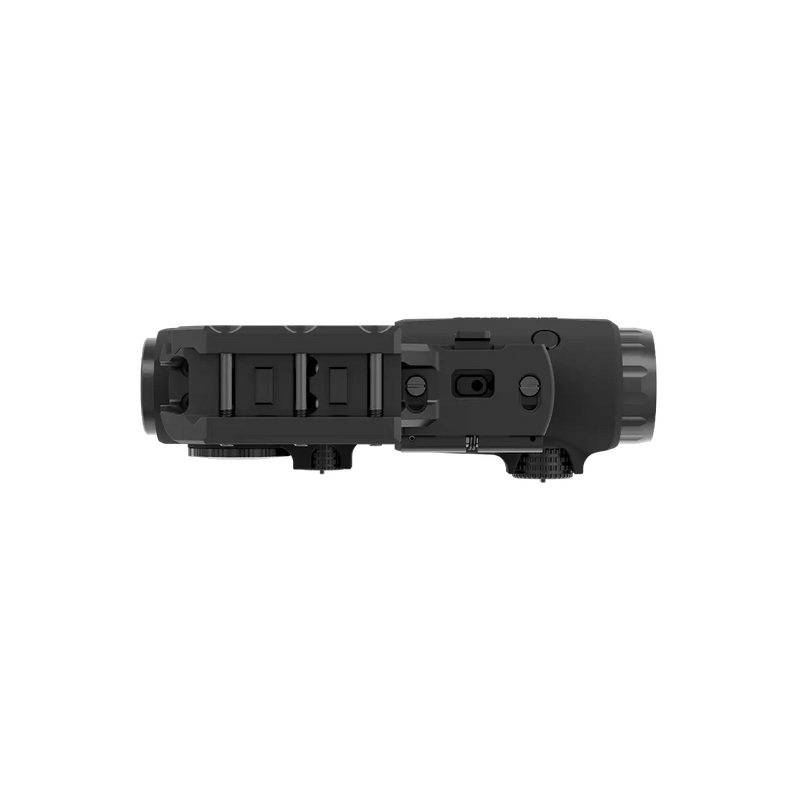

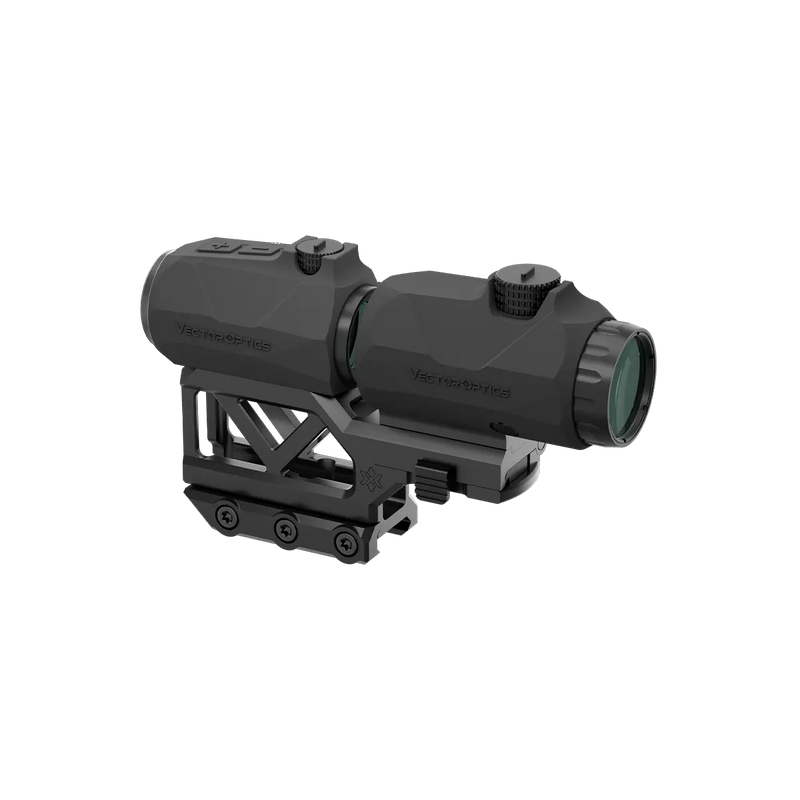

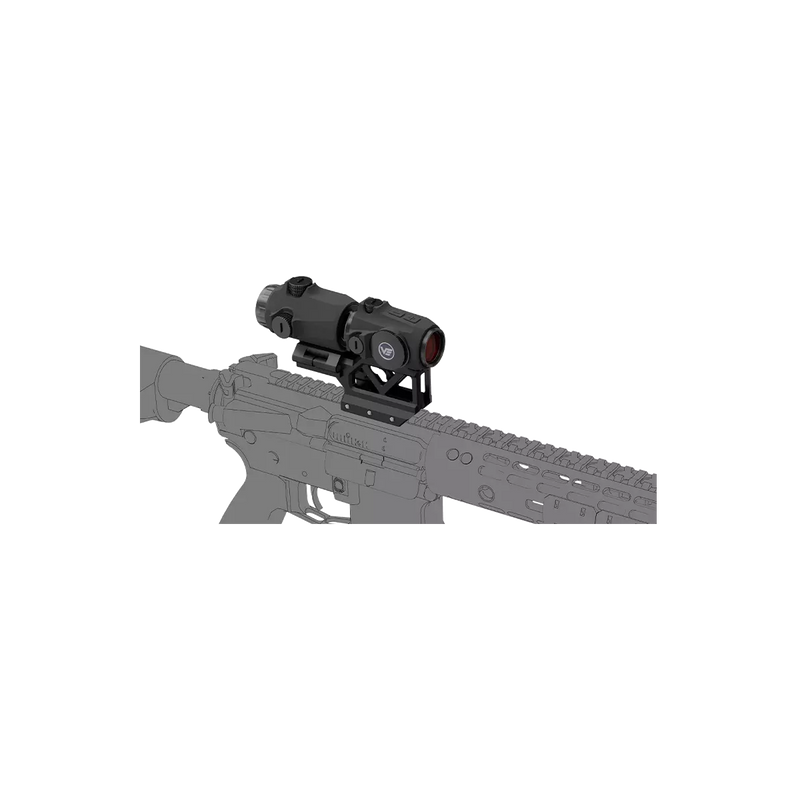

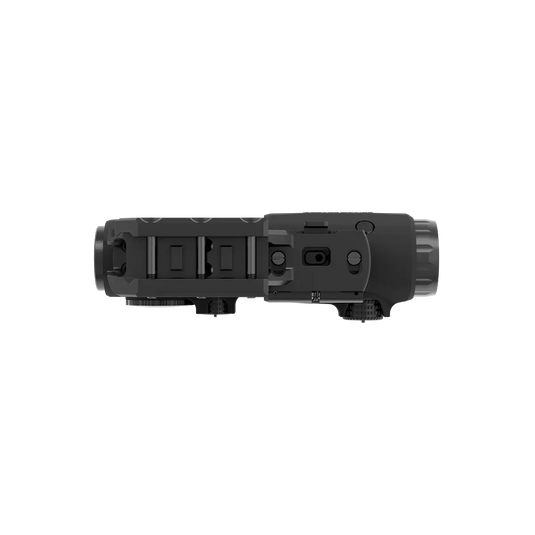

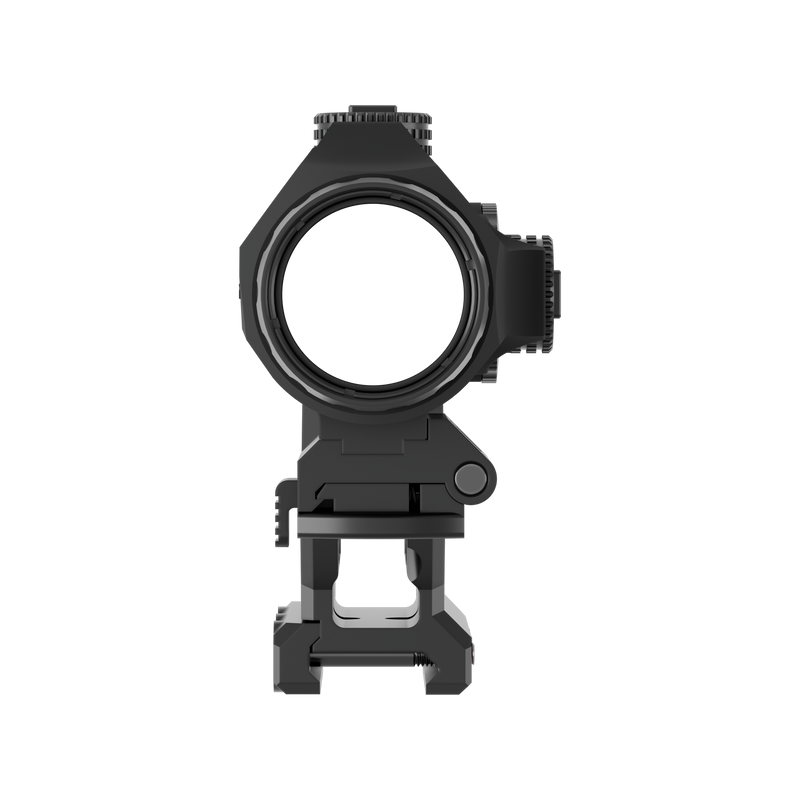

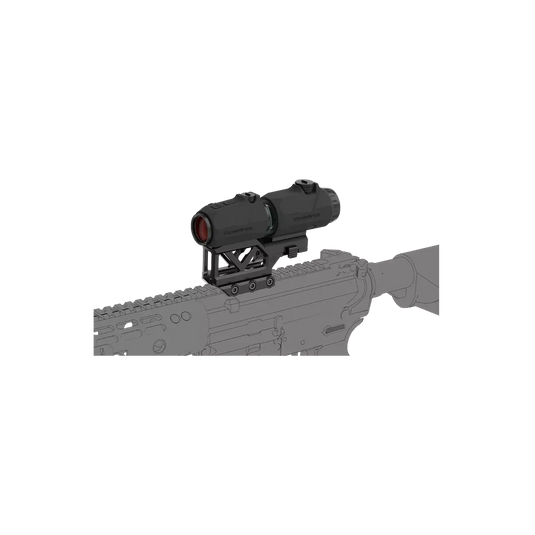

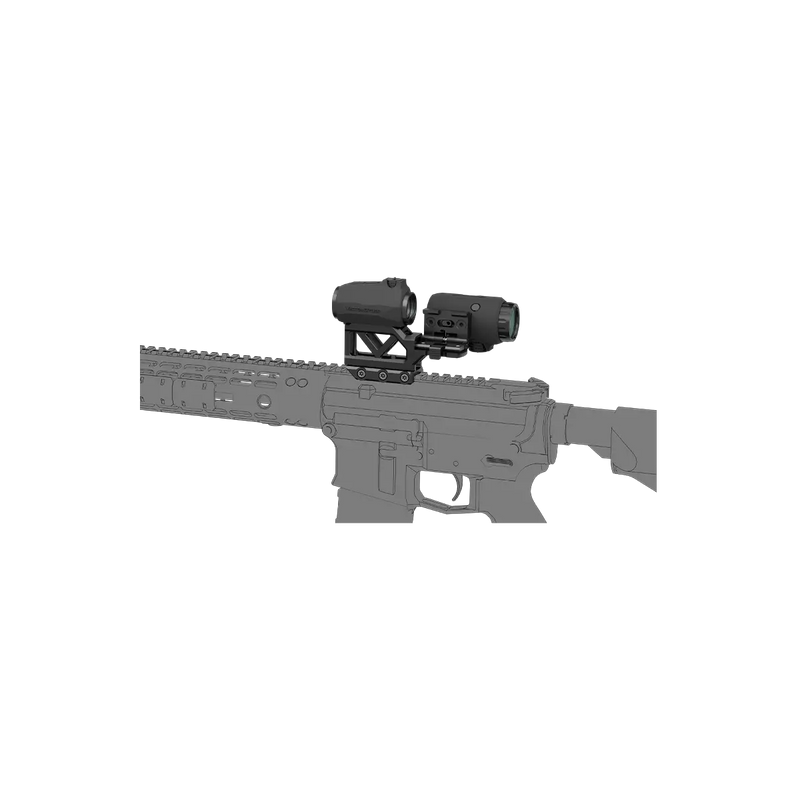

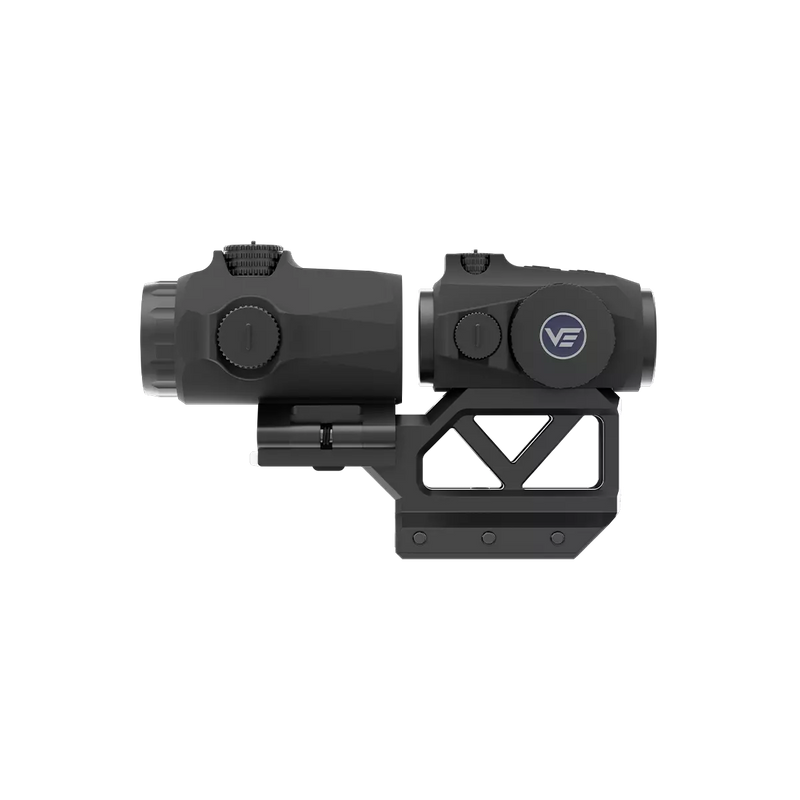

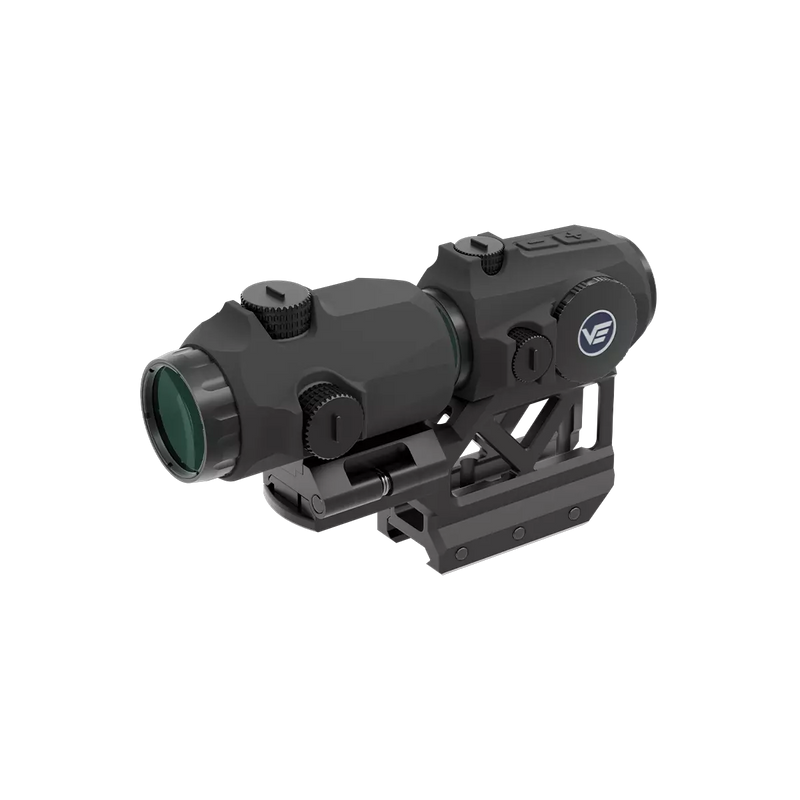

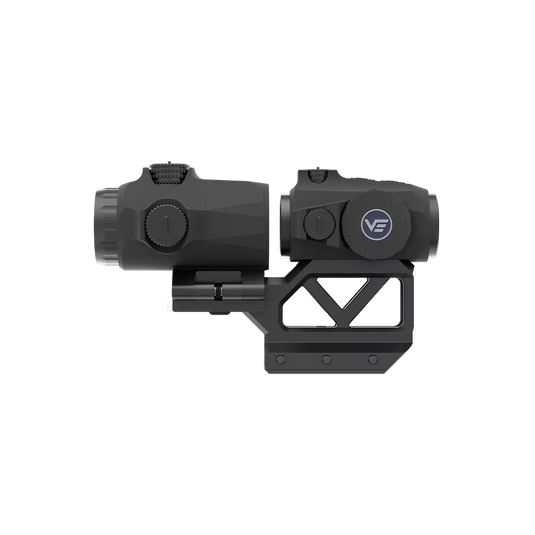

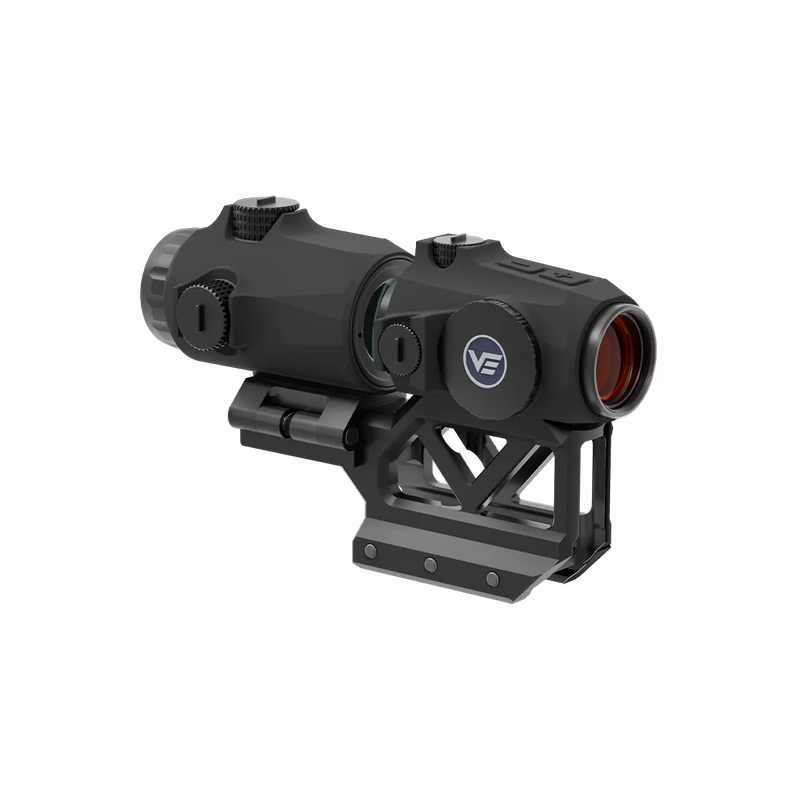

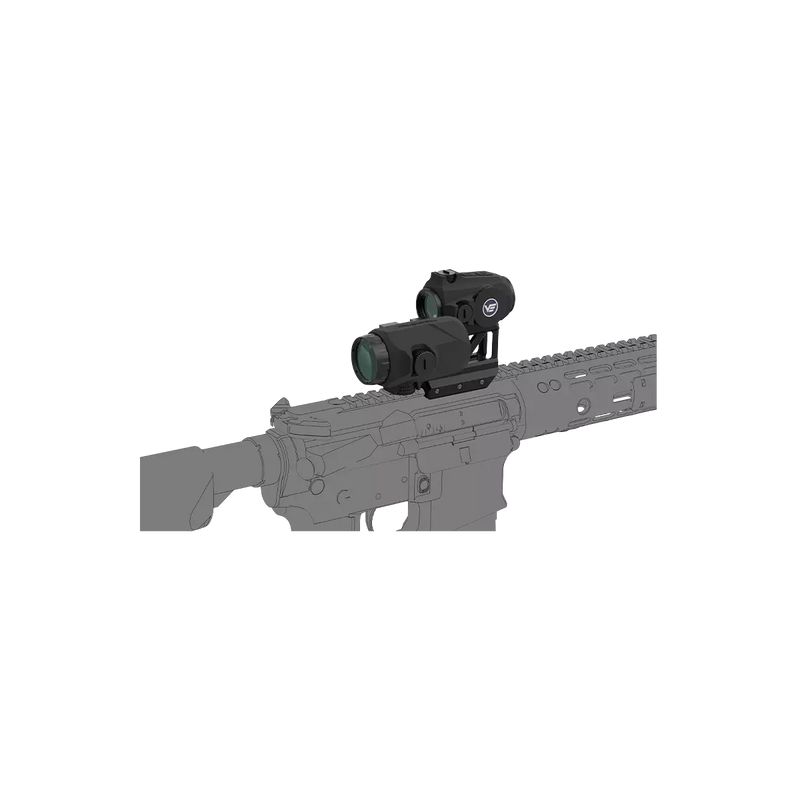

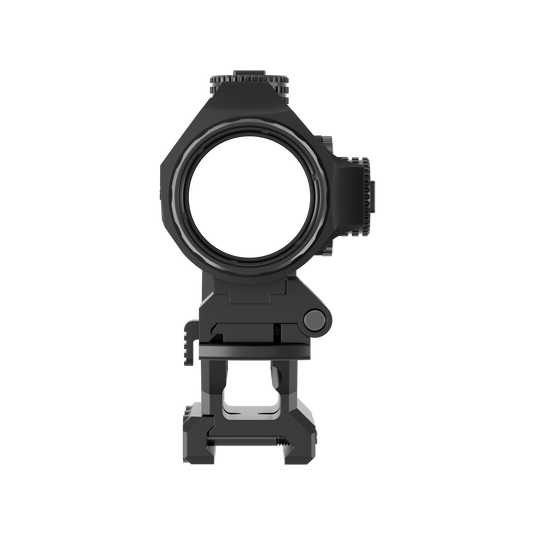

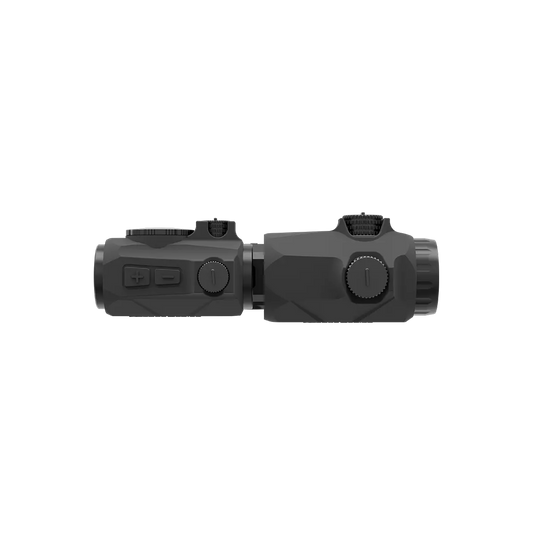

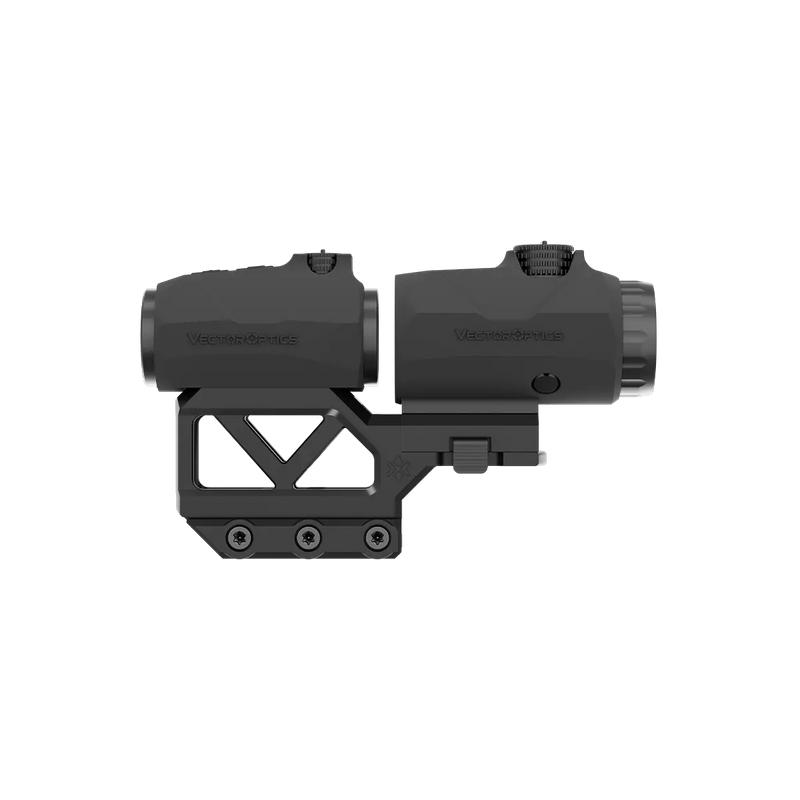

VOGP-02 Maverick Mini Red Dot Scope & 3x Magnifier Kit with Integrated One-Piece Mount
- A New Kit Includes Maverick 1x20 Mini Red Dot Scope, 3x22 Mini Magnifier and a Durable One-Piece Picatinny Mount
- Co-Axial Optical Alignment Enhances Image Clarity and Field of View, While the Integrated Mount Saves Upper Rail Space
- Mini Red Dot Scope with 3 MOA Dot and 1/3 Co-Witness 2.26 in (57.4 mm) Center Height for Comfortable Target Acquisition
- Compact, Ergonomic Mini Magnifier with Rubber Armor, 27% Shorter than Maverick Gen-III for Easier Handling and Balance
- Flip-to-Side Design Allows Quick Shift Between Combined or Independent Use of Red Dot and Magnifier for Fast Transitions
Specification
Maverick 1x20 Mini Red Dot Scope
| Specification | Details |
|---|---|
| Magnification: | N/A |
| Objective Lens Dia: | 20 mm |
| Parallax: | Free (<3 MOA) |
| Parallax Setting: | 50 yards |
| Dot Size/ Reticle: | 3 MOA |
| Dot/ Reticle Color: | Red |
| Click Value: | 1 MOA |
| Elevation Adjustment Range: | >45 MOA |
| Windage Adjustment Range: | >45 MOA |
| Footprint: | N/A |
| Mounting Rail: | Weaver |
| Illumination Setting: | 10 Levels |
| Battery Type (Not Include): | CR2032 |
| Battery Placement: | Side-Loading |
| Waterproof: | IP66 |
| Shockproof: | N/A |
| Working Temperature: | -20~+55° C |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Center Height (Complete Kit): | 57.4 mm / 2.26 in |
| Weight (Net): | 140 g / 4.9 oz (Without Mount) |

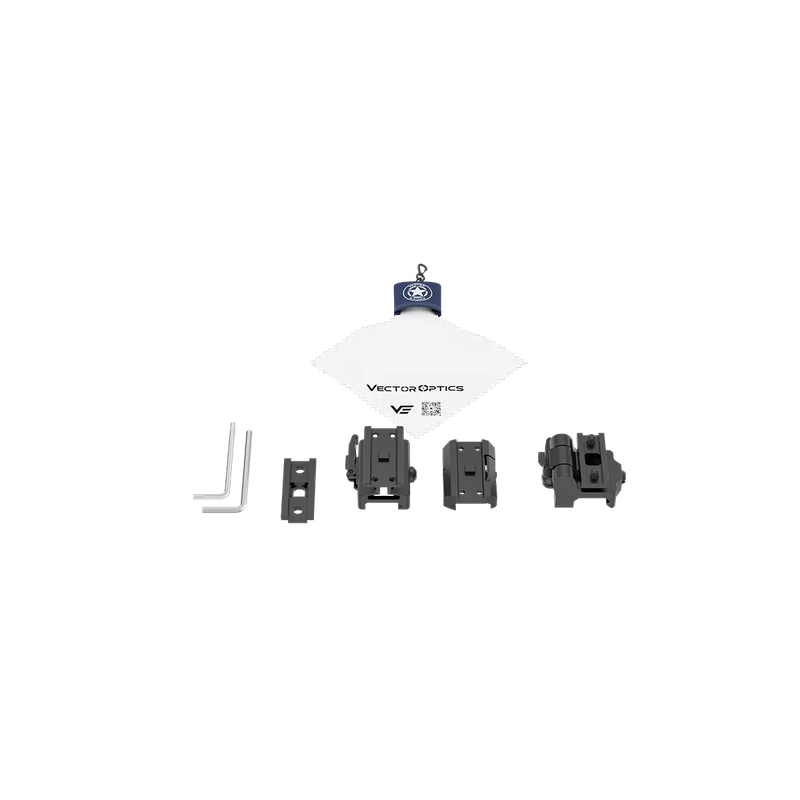

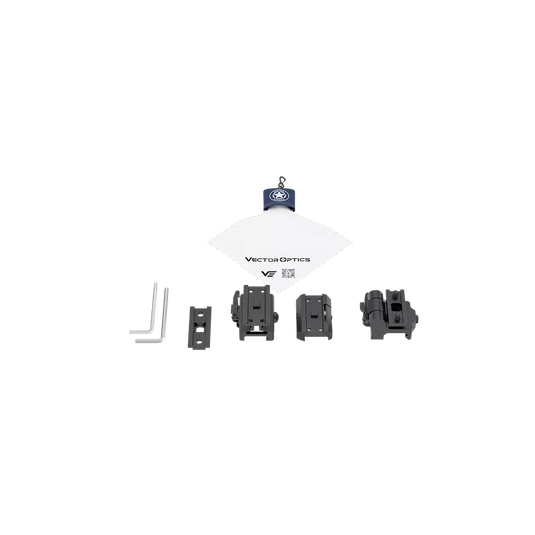

| Items in the Package (Complete Kit): | Quick Release Cantilever Weaver Mount, Low Weaver Mount, Flip-to-Side Quick Release Picatinny Mount, 3mm Riser Section, Cleaning Cloth, Hex Key, etc |
Maverick 3x22 Mini Magnifier
| Specification | Details |
|---|---|
| Magnification: | 3x |
| Objective Lens Dia: | 22 mm / 0.87 in |
| Eye Relief: | 70 mm / 2.76 in |
| Angular Field of View: | 8° |
| Lens Coating: | Multi-Coated |
| Mount: | Quick Release Picatinny |
| Windage and Elevation: | ≥ 90 MOA |
| Diopter Compensation: | -2 to +2 |
| Waterproof: | IP56 |
| Shockproof: | 750 G |
| Material: | 6061-T6 Aluminum Alloy |
| Housing Material: | Armored Rubber |
| Finish: | Matte Black |
| Length: | 75 mm / 2.95 in |
| Weight (net): | 271 g / 9.56 oz |
Maverick One-Piece Picatinny Mount
| Specification | Details |
|---|---|
| Height: | 50 mm / 1.97 in |
| Width: | 35 mm / 1.38 in |
| Length: | 109 mm / 4.29 in |
| Material: | 6061-T6 Aluminum Alloy |
| Weight: | 125 g / 4.41 oz |
| Mount: | Picatinny |
| Finish: | Matte Black |
