Feature

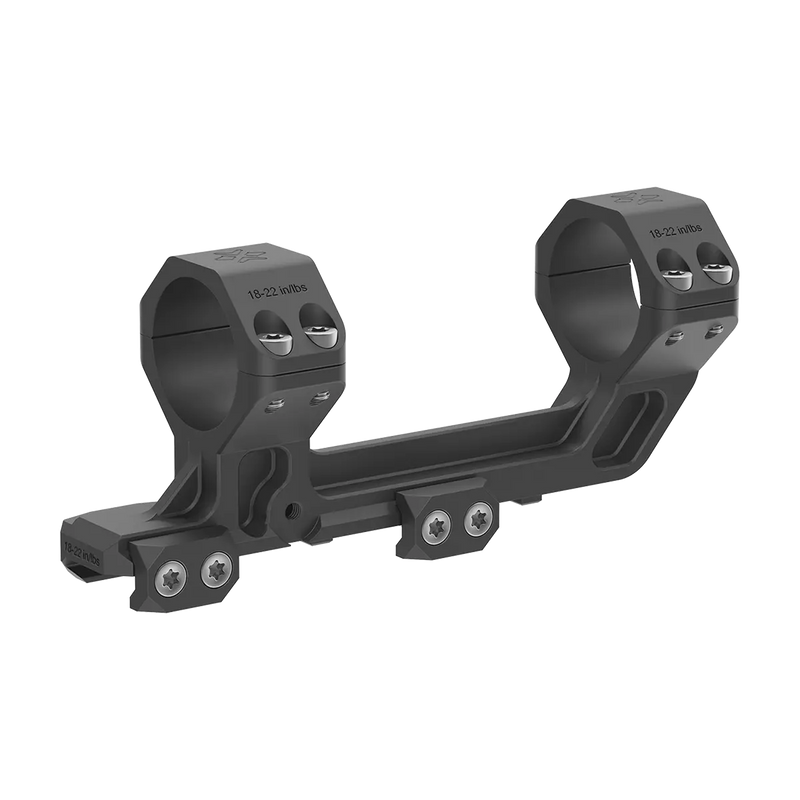

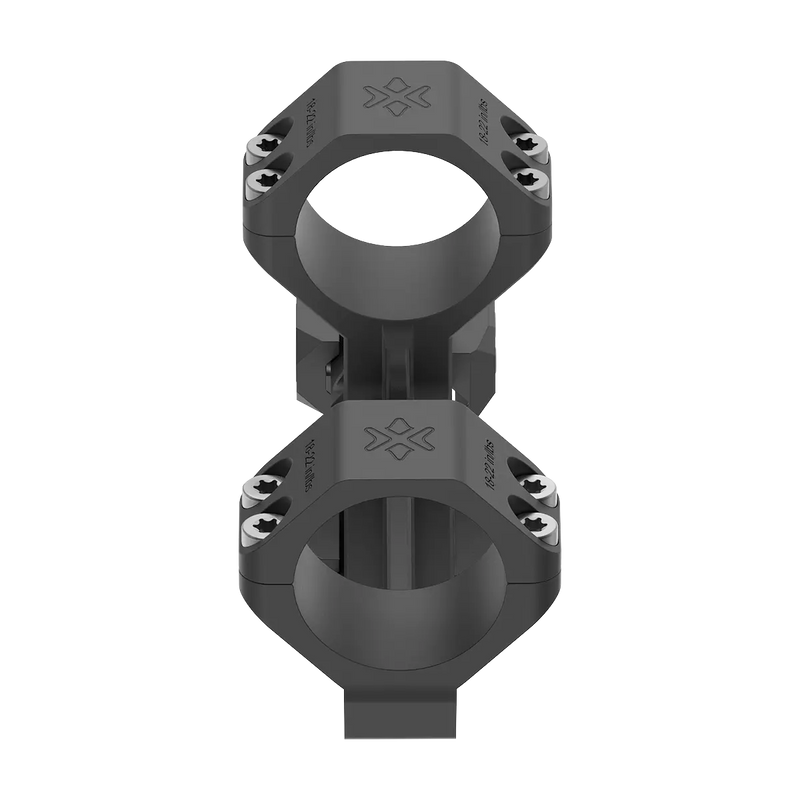

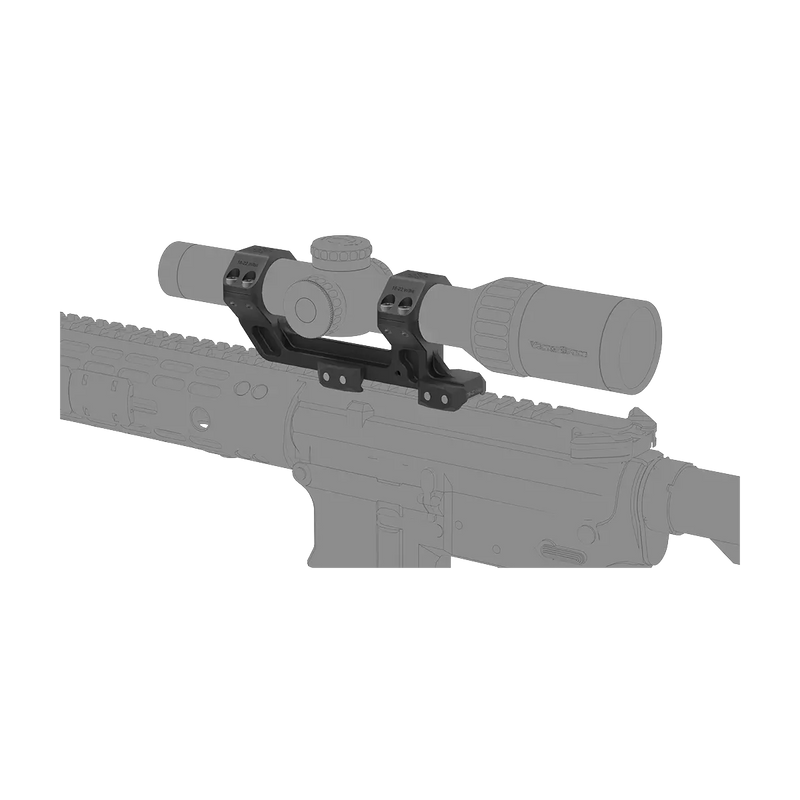

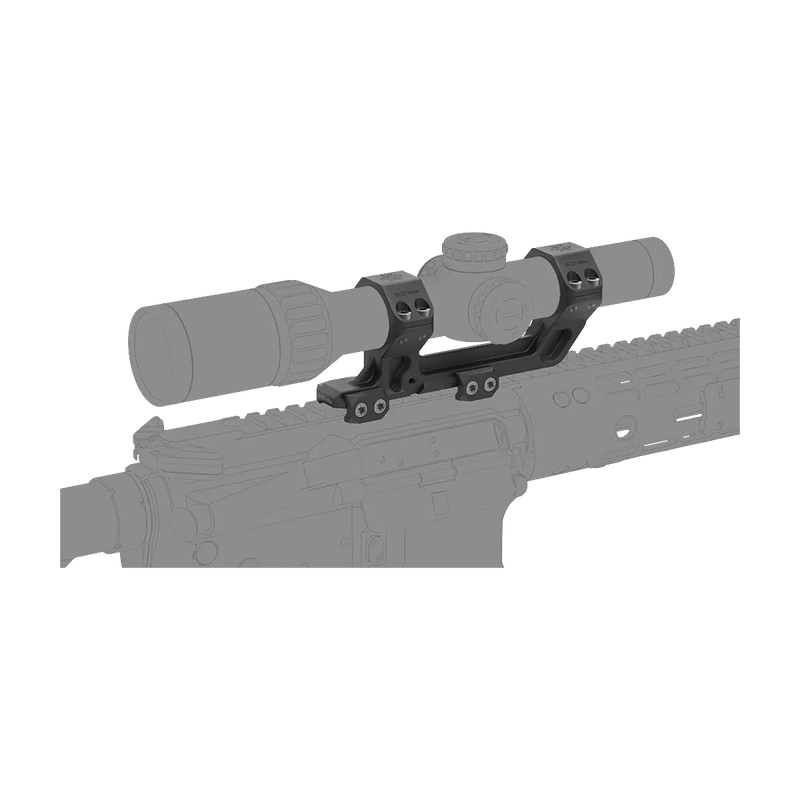

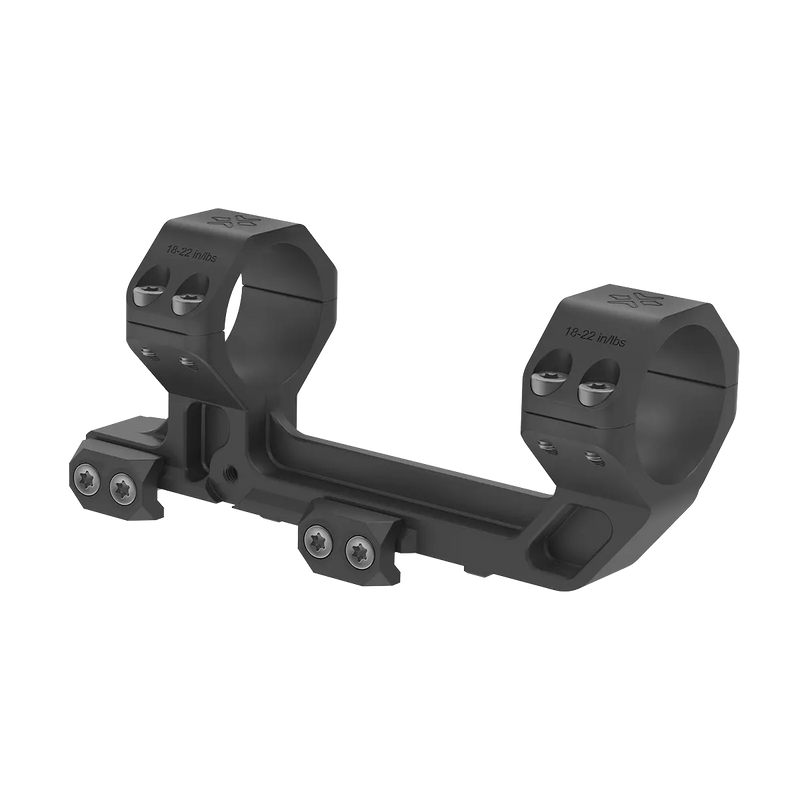

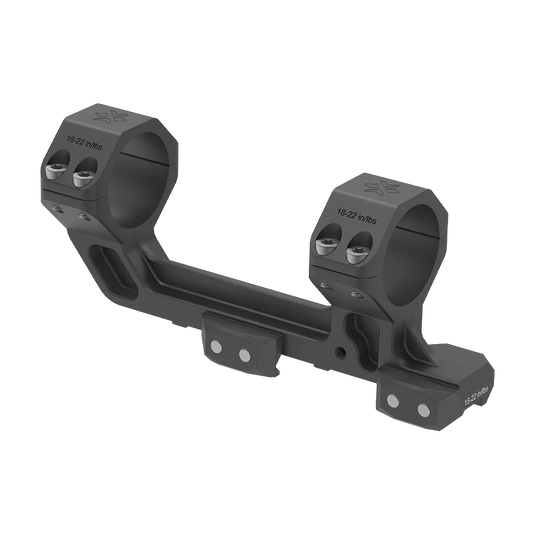

· 0 MOA Type, AR Platform Tactical Picatinny Mount, Four Screws Per Ring
· 38 mm / 1.5 in Bottom to Ring Center, Accurate w/ Full CNC Machined

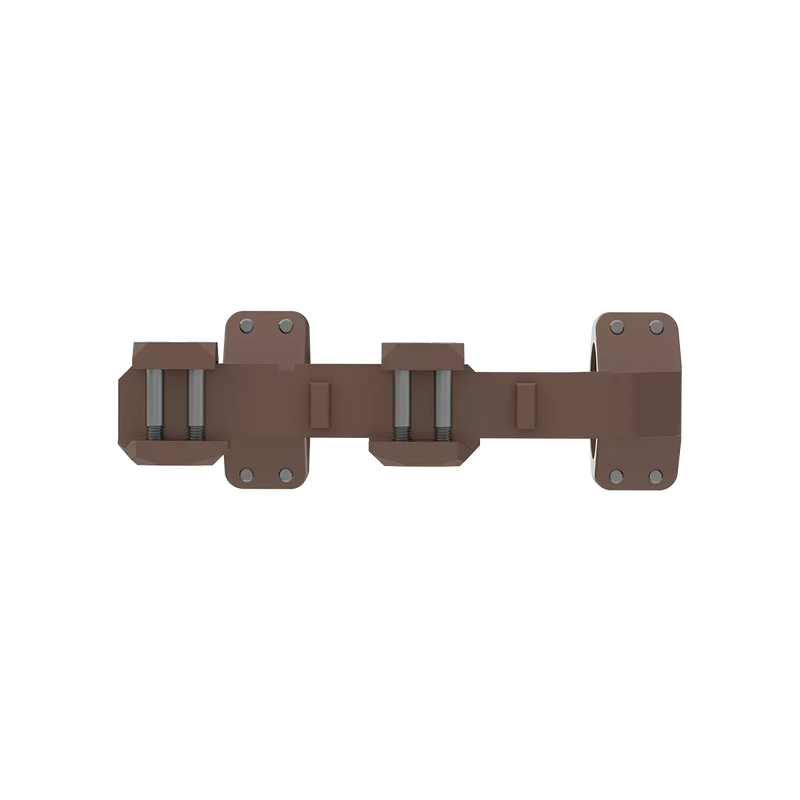

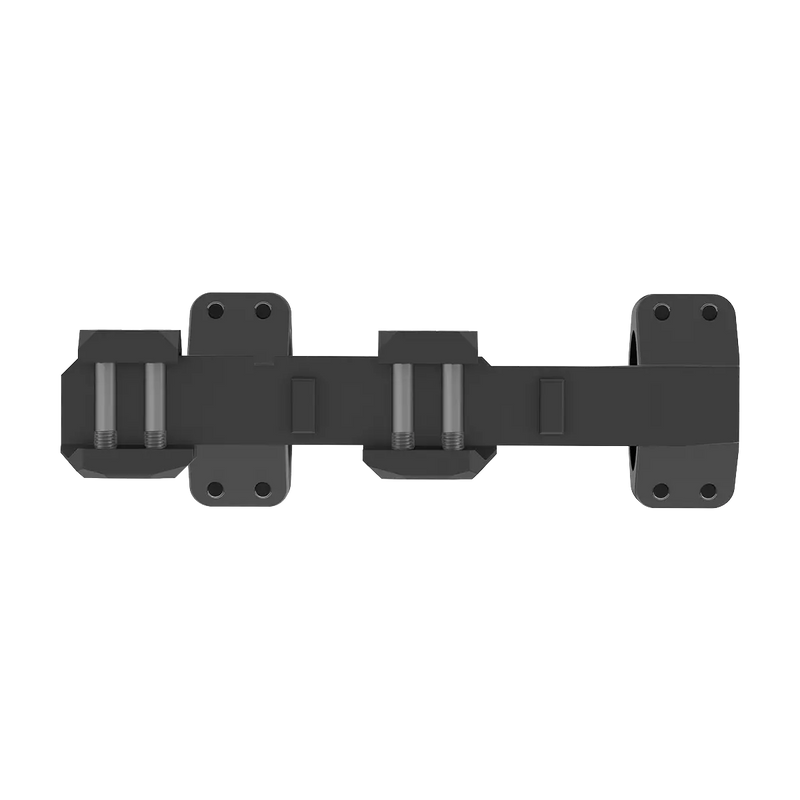

· Light Weight, 21 mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar
What are 0 MOA and 20 MOA?
0 MOA: A 0 MOA mount does not have any built-in elevation. When a scope is mounted on a 0 MOA mount, the optical axis of the scope remains parallel to the barrel of the firearm. This means that the scope's reticle is aligned with the bore axis, and no additional upward or downward adjustment is introduced.
20 MOA: A 20 MOA mount, on the other hand, has a built-in upward cant or angle of 20 MOA. When a scope is mounted on a 20 MOA mount, the optical axis of the scope is angled slightly upward relative to the bore axis. This introduces additional elevation in the scope's point of impact. The purpose of a 20 MOA mount is to provide increased elevation adjustment capability for long-range shooting or compensating for bullet drop at extended distances.
Size
Specifications
| Specification | Details |
|---|---|
| Ring Dia: | 30 mm |
| Height: | 62 mm / 2.4 in |
| Central Height: | 38 mm / 1.5 in (Bottom to Center) |
| Length: | 139 mm / 5.5 in |
| Material: | 6061 - T6 Aluminum Alloy |
| Weight: | 155 g / 5.5 oz |
| Mount: | Picatinny |

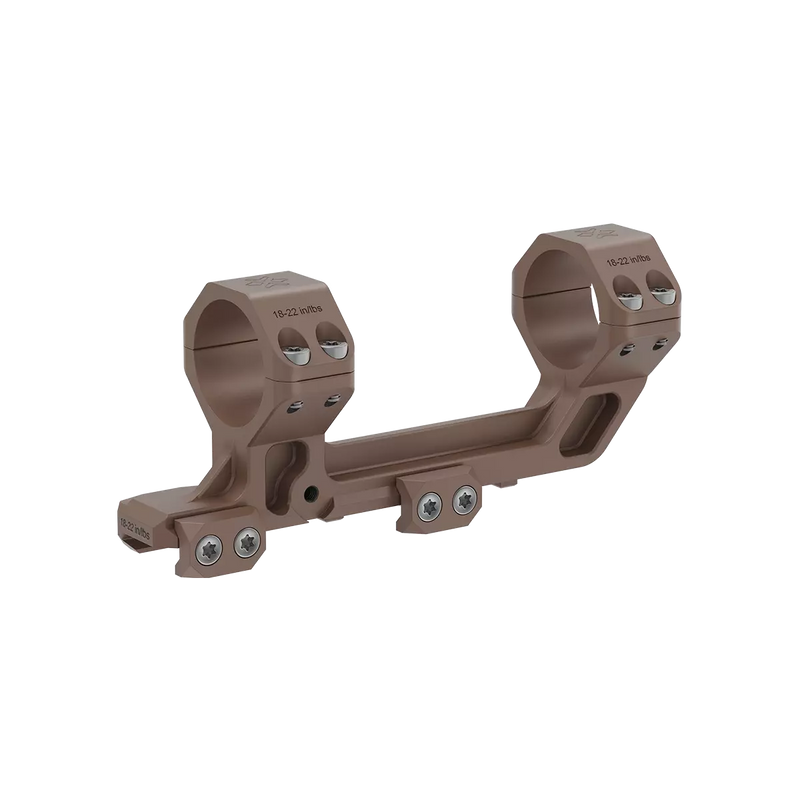

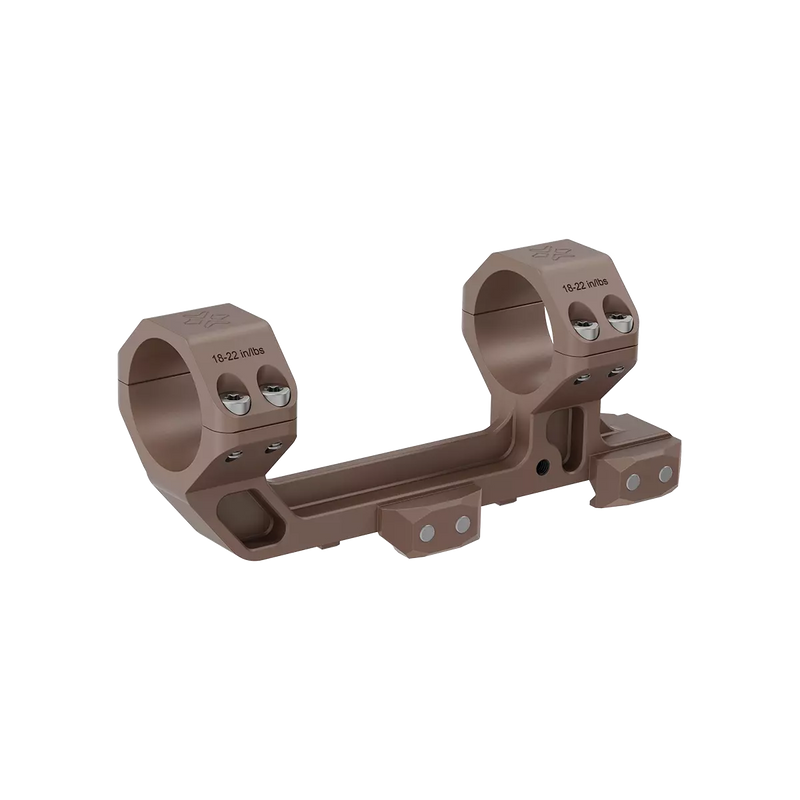

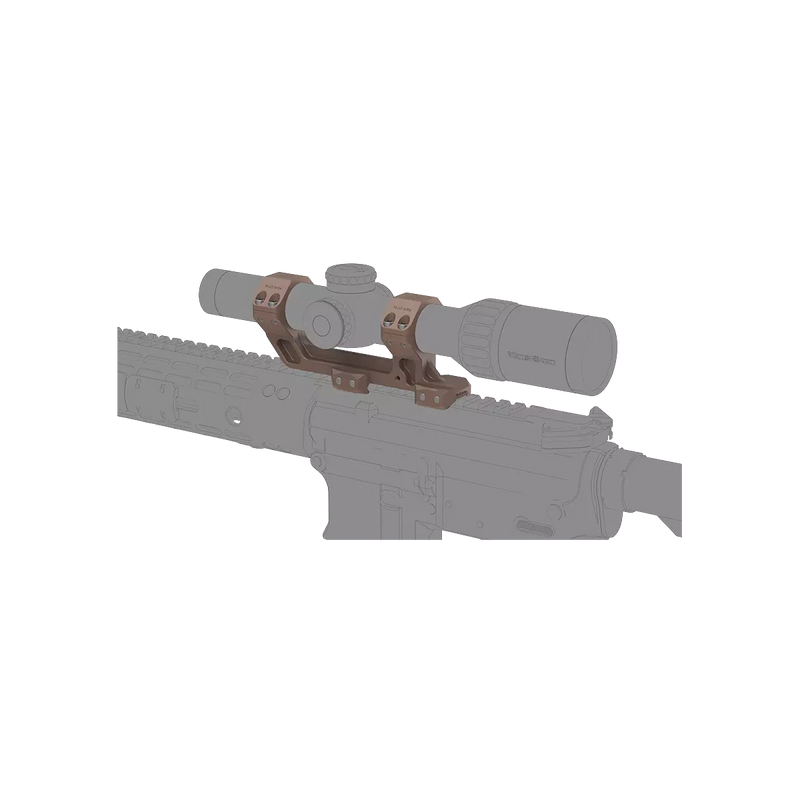

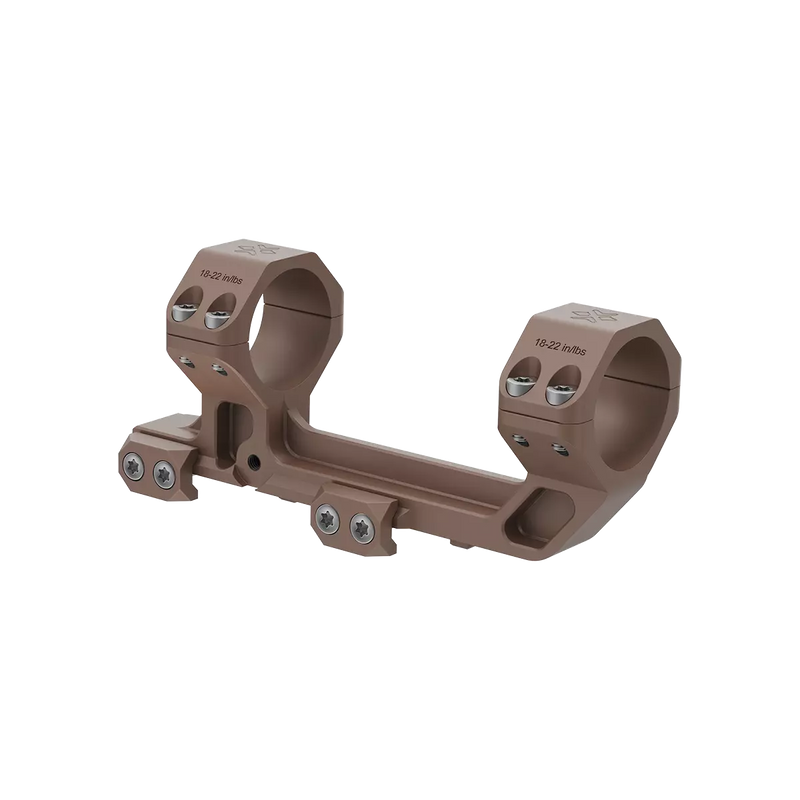

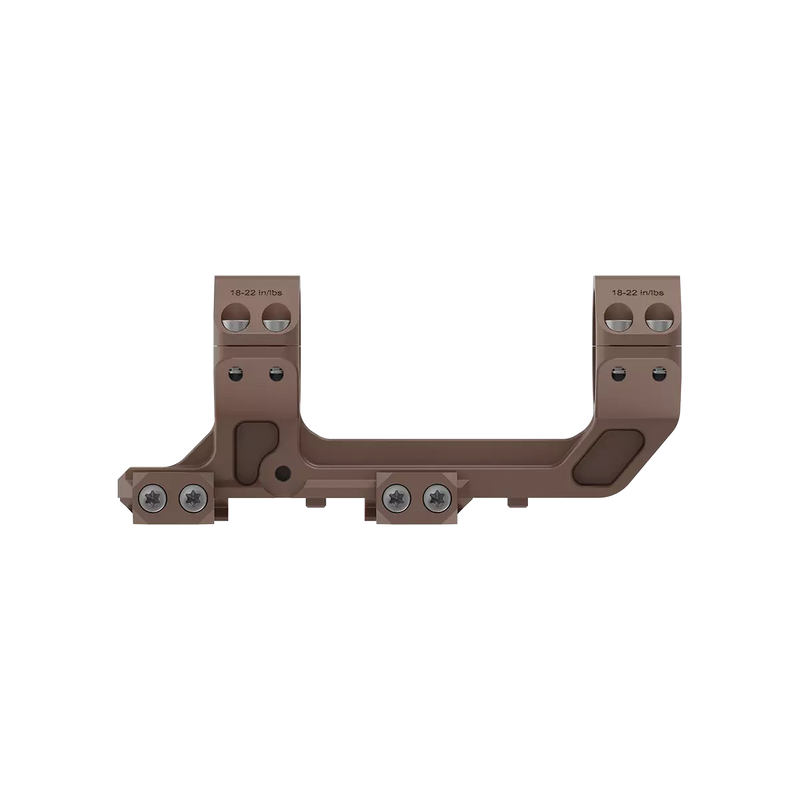

| Finish: | Black Matte / Coyote FDE |
| Items in the Package: | T15 Torx Wrench, Retail Package |
Questions & Answers
Have a Question?
-
Is it available in 1 " ?
Sorry, No. It cannot be used on 1"
-
Does this work with victoptics s6 lpvo?
Hi, sorry for the late reply. Yes, it fits for S6 perfectly.
-
25 in-LBS or 30 in-LBS ?
No more than 18 in/lbs for the 8 screws to tighten the scope.
Whereas 45 in/lbs maximum (25 in/lbs suggested) for the 2 screws tightening Picatinny rail. -
Can it be use in the VICTOPTICS S6 1-6X24 SFP LPVO
Yes, it fits the S6 perfectly.
-
What is the difference between the Black version and the Black - 20 MOA version?
Hi,
The 20 MOA approximately equals 0.333 degrees, which will slightly tilt the scope mounted to physically increase the adjustment range.
