Feature

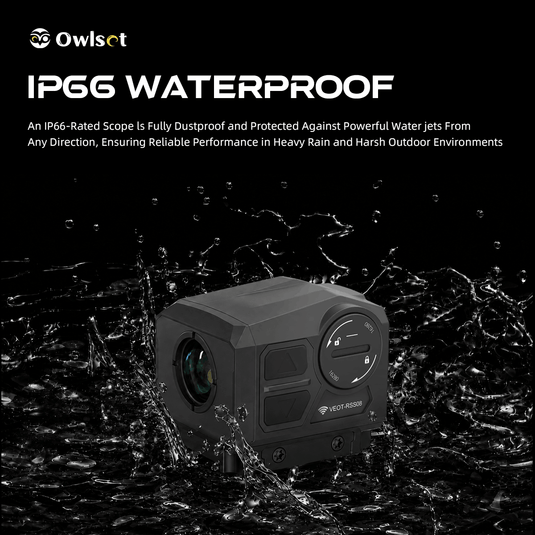

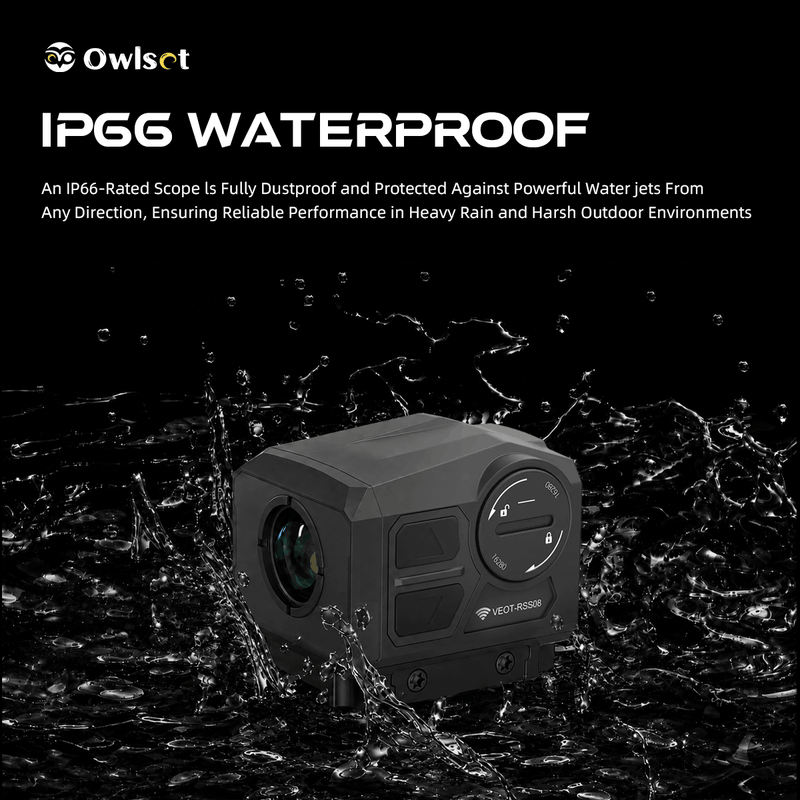

• Built for Harsh Conditions: 1000G Shockproof & IP66 Waterproof Deliver Reliable Performance in Recoil, Rain and Tough Field Conditions
• Clear Thermal Detection: 256×192 Sensor, 12 μm Pixel Pitch, 50 Hz Refresh Rate and 19mm Lens Deliver Smooth Thermal Imaging
• Faster Heat Tracking: Real-Time Hot Spot Tracking Automatically Detects and Follows the Hottest Target at Night

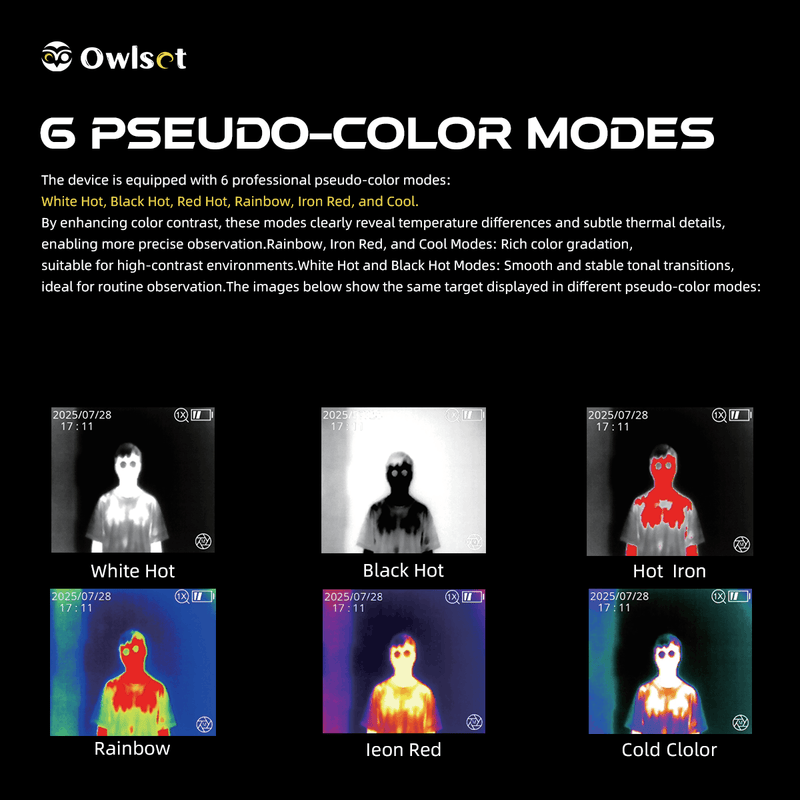

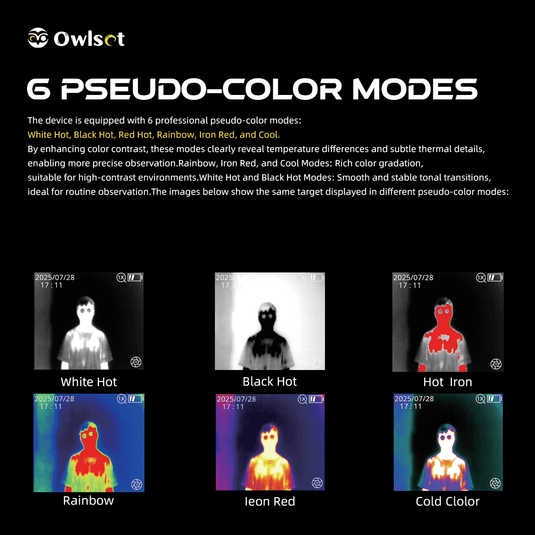

• Better Target Recognition: Six Pseudo-Color Modes Improve Thermal Contrast for Easier Target Identification at Night
• Lightweight & Easy to Mount: Compact 123g / 4.34oz Body Supports Pistol, AR-15 and LPVO Top Mounting for Flexible Nighttime Setups
• Easy Wireless Control: Built-In Wi-Fi with On-Device Controls Makes Connection Management Simple with Clear Wi-Fi Status Display

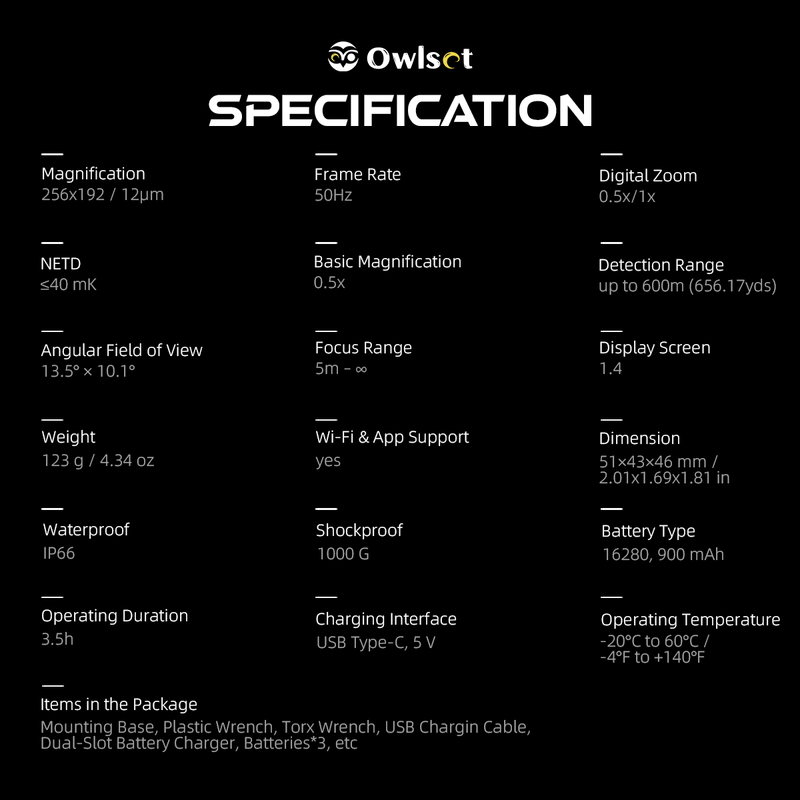

Specification
| Specification | Details |
|---|---|
| Infrared Resolution: | 256x192 / 12μm |
| Frame Rate: | 50Hz |
| Basic Magnification: | 0.5x |
| Digital Zoom: | 1x/2x |
| NETD: | ≤40 mK |
| Detection Range: | up to 600m (656.17yds) |
| Recognition Range: | up to 150m (164.04yds) |
| Angular Field of View: | 13.5° × 10.1° |
| Focus Range: | 5m – ∞ |
| Display Screen: | 1.4 |
| Pseudo-Color Modes: | White Hot, Black Hot, Hot Iron, Rainbow, Iron Red, Cold Color |
| Reticle: | 10 Reticle Options with 5 Color Modes (Black / White / Red / Green / Yellow) |
| Weight: | 123 g / 4.34 oz |
| Dimension: | 51×43×46 mm / 2.01x1.69x1.81 in |
| Wi-Fi & App Support: | Yes |
| Waterproof: | IP66 |
| Shockproof: | 1000 G |
| Battery Type (Not Include): | 16280, 900 mAh |
| Operating Duration: | 3.5h |
| Charging Interface: | USB Type-C, 5 V |
| Operating Temperature: | -20°C to 60°C / -4°F to +140°F |
| Items in the Package: | Mounting Base, Plastic Wrench, Torx Wrench, USB Chargin Cable, Dual-Slot Battery Charger, Batteries*3, etc. |
Size
Reticle

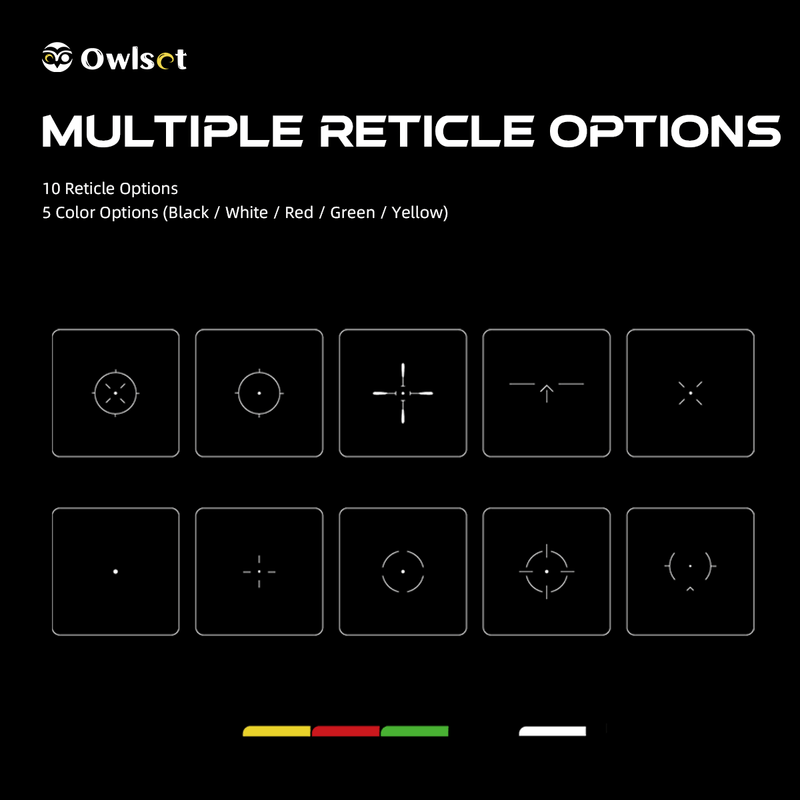

MULTI-RETICLE OPTIONS
10 Reticle Options
5 Color Modes (Black / White / Red / Green / Yellow)
Download
VEOT-RS08 & RSS08 Owlset HEIM ES X-NANO Mini Thermal Sight User Manual
HEIM ES X-NANO Thermal Sight Flyer (VEOT-RS08 & RSS08)
Video
Review
"I really like the app that comes with the WiFi version, where you get a live view of the optic on your phone screen. You can change settings from the app, but the optic comes with a touch screen as well, so you get to make changes quickly, also straight from the screen."
— Owlset HEIM ES X-Nano XPD Mini Thermal Sight Wi-Fi (VEOT-RSS08) Review by Jani Nordman
"The Owlset RSS08 packs a ton of features into a small thermal package and in my opinion is a great starting point and absolutely a force-multiplier that everyone should have in their equipment and if you're looking at the Infitac Mini line this unit is a welcome addition to the space."
— Owlset HEIM ES X-Nano XPD Mini Thermal Sight Wi-Fi (VEOT-RSS08) Review by the-answer-is-42
Beyond the Dark
🌙 See what the darkness hides! Discover compact thermal vision for modern shooting setups.
👉Owlset HEIM ES X-Nano Mini Thermal Sight — Compact Thermal Vision for Pistols and AR/M Platforms
Want thermal vision without bulky gear? See how the Owlset HEIM ES X-Nano brings lightweight thermal detection to pistols and AR platforms, helping you spot heat signatures faster in dark and low-visibility environments.
The touchscreen is very responsive and the reticles with different colors help personalize your view. The real-time thermal imaging makes it easy to find wildlife or objects even in total darkness.
Setup was painless and this mini thermal delivered right out of the box. The compact size and weight make it ideal for quick detach / reattach, and the heat detection is surprisingly responsive. Whether I’m scanning brush or tracking movement in the dark, this little sight holds its own.
This tiny thermal sight surprised me! I can scan close objects easily and spot heat sources fast at night. The Wi-Fi feature lets me stream video to my phone
Absolutely love how lightweight this thermal unit is — it doesn’t throw off balance on my rifle. The hotspot tracking works incredibly well, automatically highlighting the hottest targets in the field. Battery life lasts long enough for extended sessions and the touchscreen display makes menu navigation super easy even in the dark.
Works well
Cool product!! Time will tell on longevity. Shipped quickly. I would say 50-75 yards would be max on shooting range. Deer size animals I could make out at 200 yards. Nice it comes with 3 batteries and charger. Will be going on my 10/22 for pest control.
