DESCRIPTION
Note
For use with the Maverick-III Red Dot Sight (SCRD-38/39), you will need to purchase the 0.83" Riser Mount to adapt it, click on the image to purchase.
PRODUCT FEATURES
· Rubber Armed, Adjustable Windage & Elevation
· Crystal Clear, 2.7" Long Eye Relief
· With SCTM-17 Flip Side Picatinny Mount 36mm 1.4" From Bottom to Ring Center
SPECIFICATIONS
Magnification: 3x
Objective Lens Dia: 22mm
Exit Pupil: 7.0mm / 0.3in
Length: 103mm (4.1 inch)
Height: 36mm (1.4 inch, from the base to the ring center)
Weight (net):290g (10.2oz, with mount)
Eye Relief: 69mm (2.7 Inch)
Field of View (ft@100yds):49 feet
Optics Coating: Fully multi coated
Shock proof that is designed for real fire caliber
Windage and elevation can be adjust
Aluminum alloy 6061-T6 in black matte body covered with rubber
With SCTM-17 30mm flip to side picatinny mount
Fast focus eyepiece at ocular lens adjustment
With 30mm flip side mount, instruction, cleaning cloth and hex keys etc
PAIRING
Red Dot & Magnifier Compatibility — SCMF-32 (1.40 in / 35.6 mm)
|
Brand |
Model |
Center Height |
Compatibility |
|
Holosun |
HS510C |
1.41 in / 35.8 mm |
Direct Fit |
|
HS512C |
1.41 in / 35.8 mm |
Direct Fit |
|
|
HM3X |
1.41 in / 35.8 mm |
Direct Fit |
|
|
HM3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG SAUER |
ROMEO5™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
ROMEO4T™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG JULIET3 |
1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG JULIET3 Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
Vortex |
Micro3X |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
Primary Arms |
SLx 3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
PRODUCT DOWNLOADS

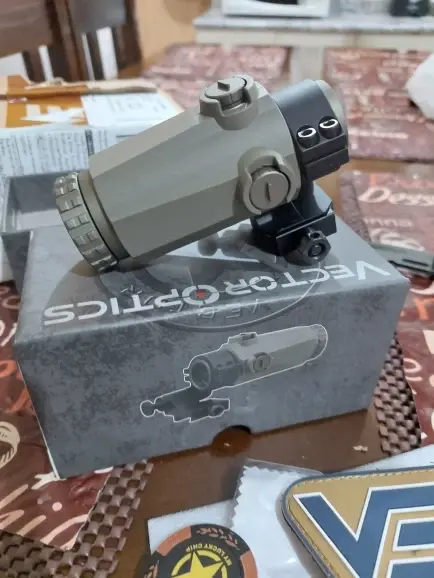

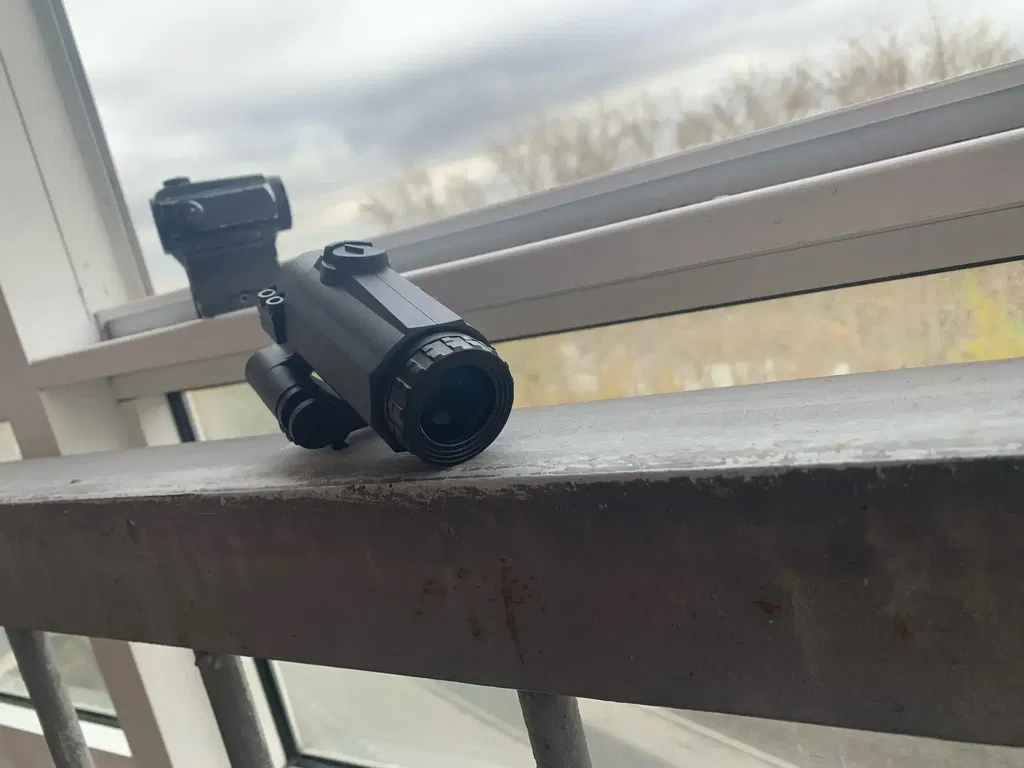

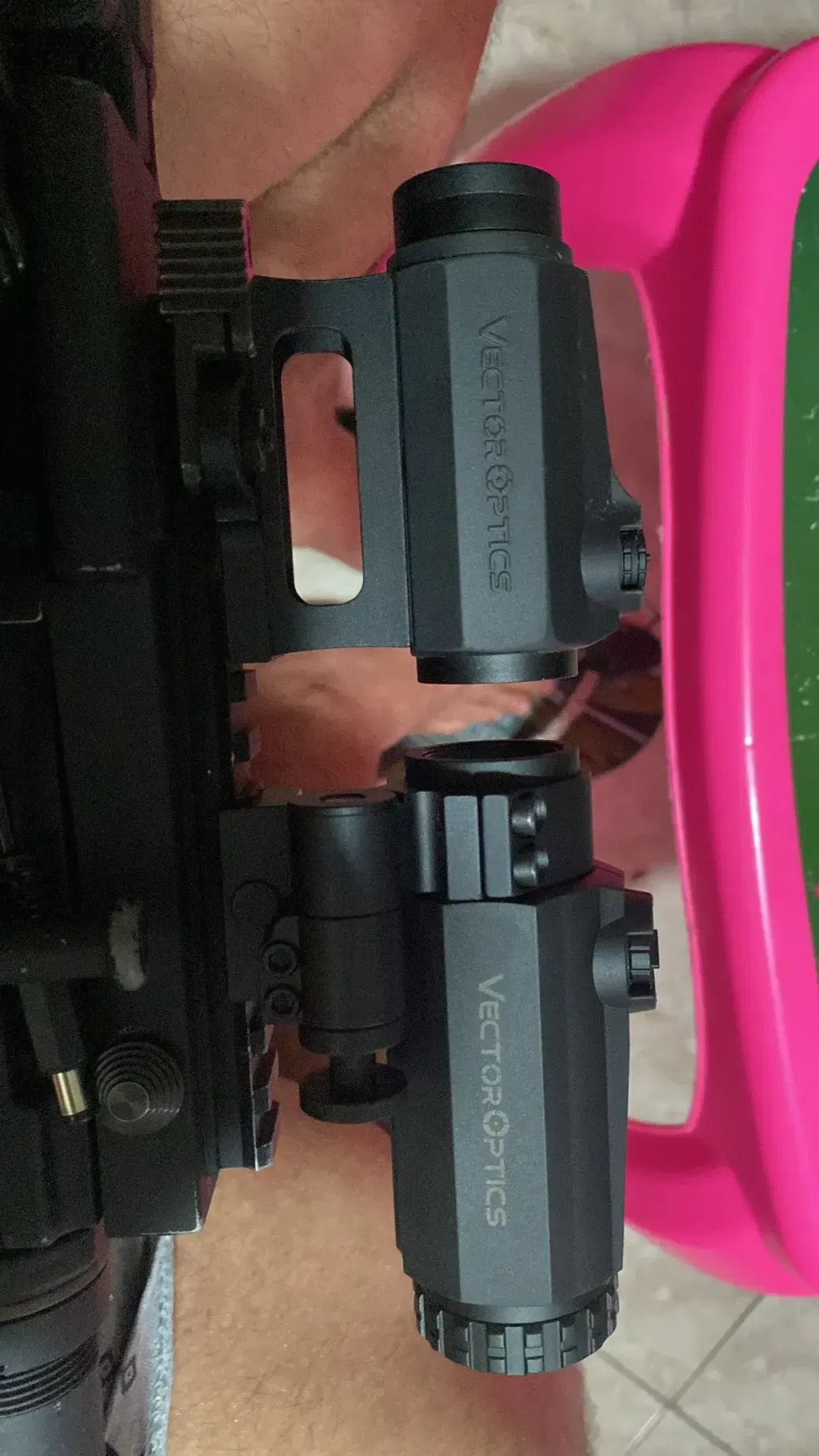

The order came days for 10, the goods are good, the case is rubberized, the image is clear, the point does not wash, the Mount is also OK, with a holoon (you can take the leg vector at 0,83 inch, then everything will be super, but due to the fact that the lens is more by 2mm, the image is the same, so there there there for your money, the goods are super!
Product quality
Color: SCMF-32

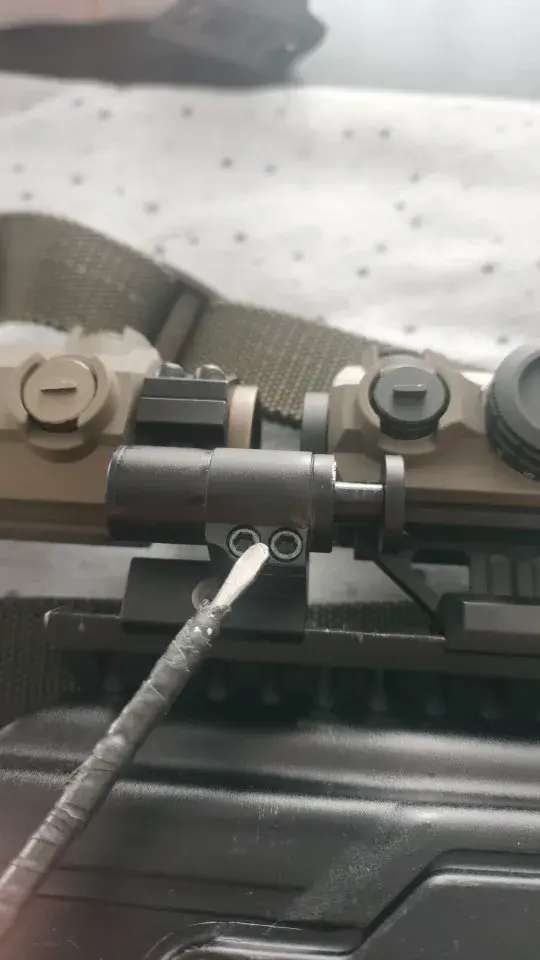

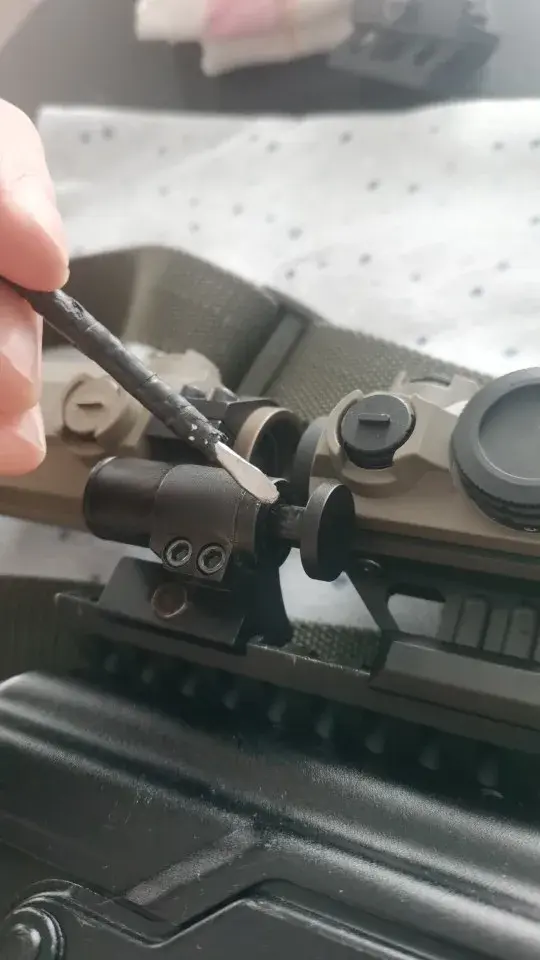

Everyone who has problems with the inconsistency of the device and callimator-it is necessary to loosen two screws clamping the folding mechanism. After that, you can shift the combat position of the magnet and trace it to the sight. Also, in the front of the folding mechanism, on the side of the button, there is a nut without faces. It is threaded and tightens the mechanism. I did not have it tightened and because of this the magnet was hanging on the Mount and sagging, because of this there was an optical axis. After tightening this nut, Luft left, and the device was set exactly on the axis. I recommend immediately disassemble and lubricate the mechanism with good oil, there is little from the lubrication plant. The magnet itself is made qualitatively, the image is clear, the point does not wash, the adjustments are correctly clicked. Support is responsive, they told me how to adjust the position of the magnet.
Color: SCMF-31

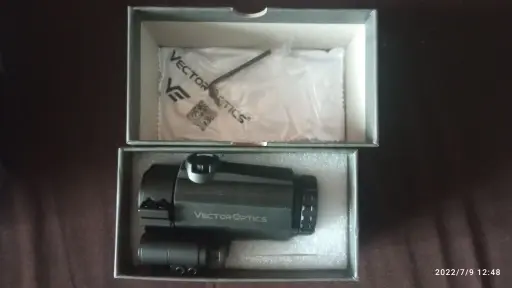

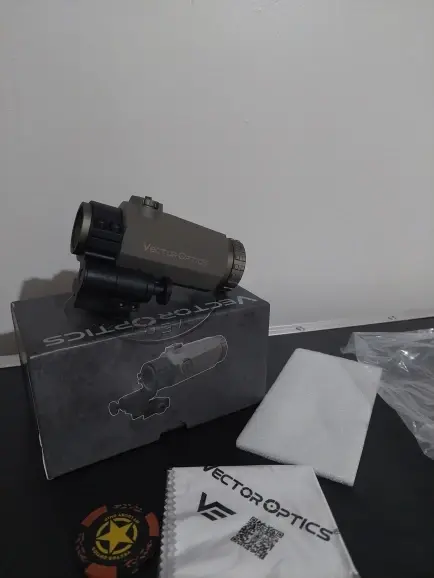

Fast shipping. Goods arrived after ca. 3 days of order. Now assembly and test. Quality OK.
the magnifier came very fast, from poland to France in 3 day or so.
the view is clear and nothing move the point is Alway where I want it to be
Everything is fine! Thank you delivery fast
Color: SCMF-31
Color: SCMF-32
Color: SCMF-31
Color: SCMF-31
Color: SCMF-32
Color: SCMF-31
Looking quality, we will check in the case
Color: SCMF-31
One of the bolts of fastening the magnet was torn. Now you have to order a new bracket.
Vector optics is as bad as possible in the last months! Have stopped sending to Ukraine, ochkoshniki! I order already 2 magnets and 2 does not reach me! Written delivery for 5 days or Poland in Poland in the end sold the month so nothing and did not receive! I do not recommend!
Color: SCMF-32
Product great quality Recommend buying
Good quality, by the way much better than the quality of the maverick sight itself) I do not know why but it's true so
Color: SCMF-31
Color: SCMF-31
Color: SCMF-31
Top
Color: SCMF-32
Color: SCMF-31
