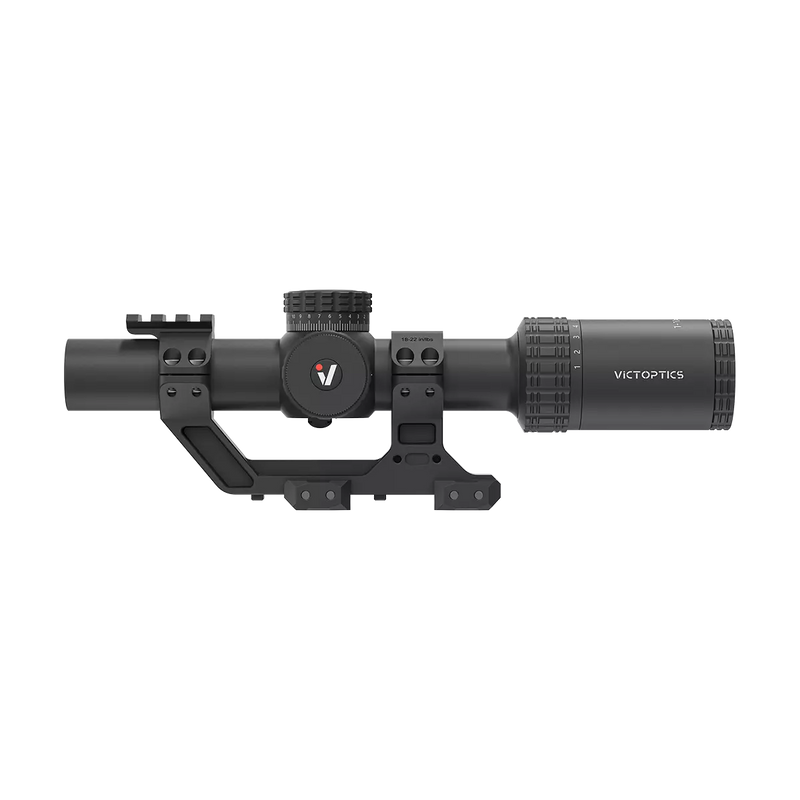

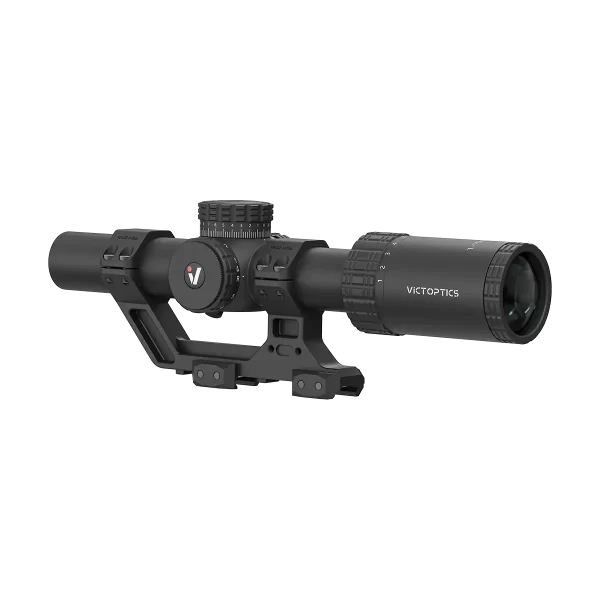

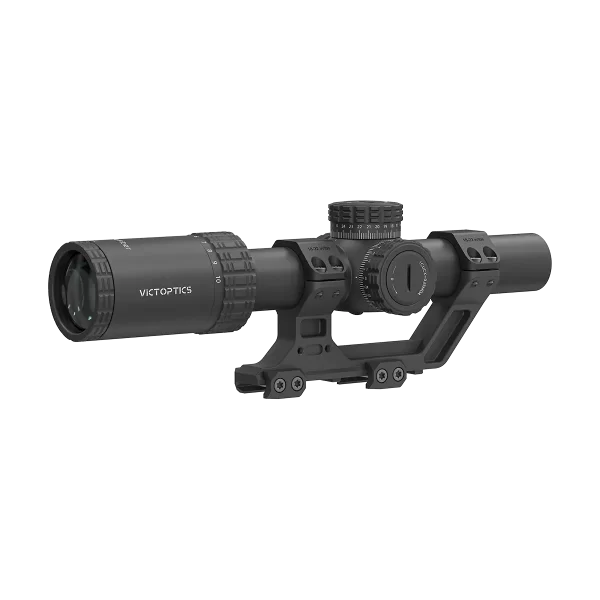

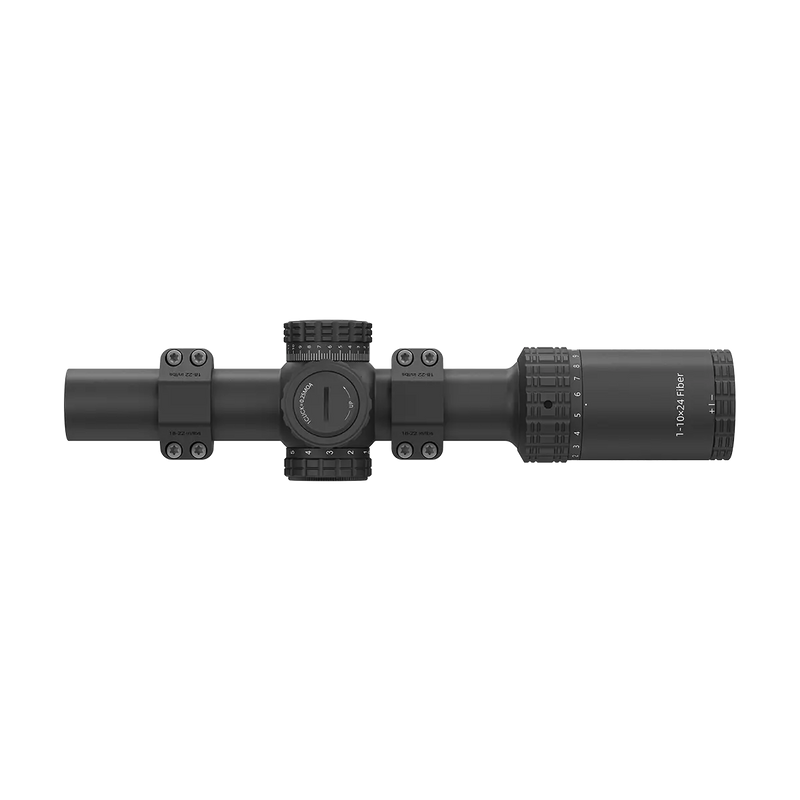

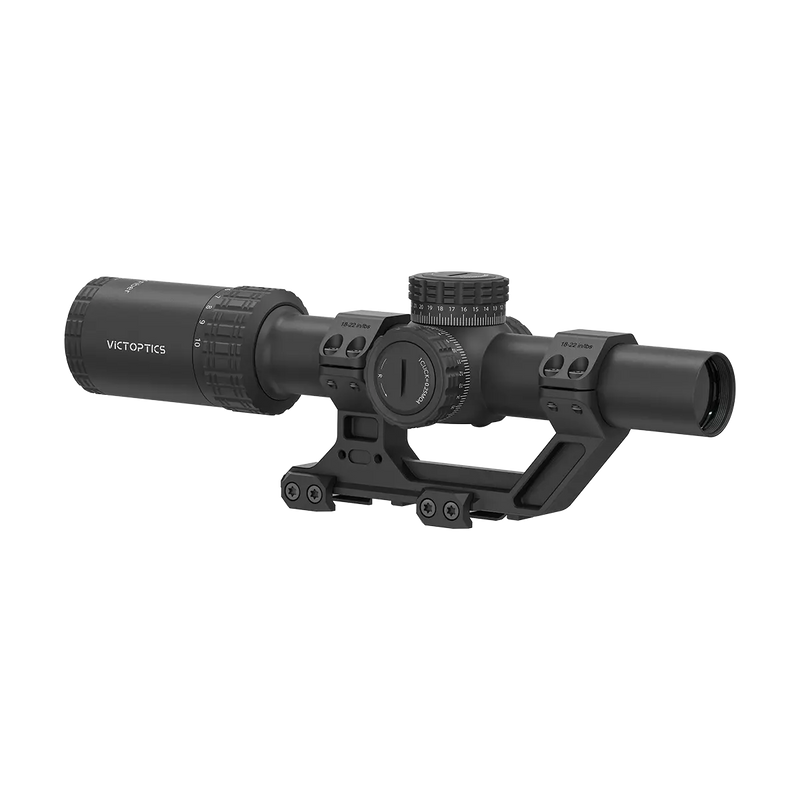

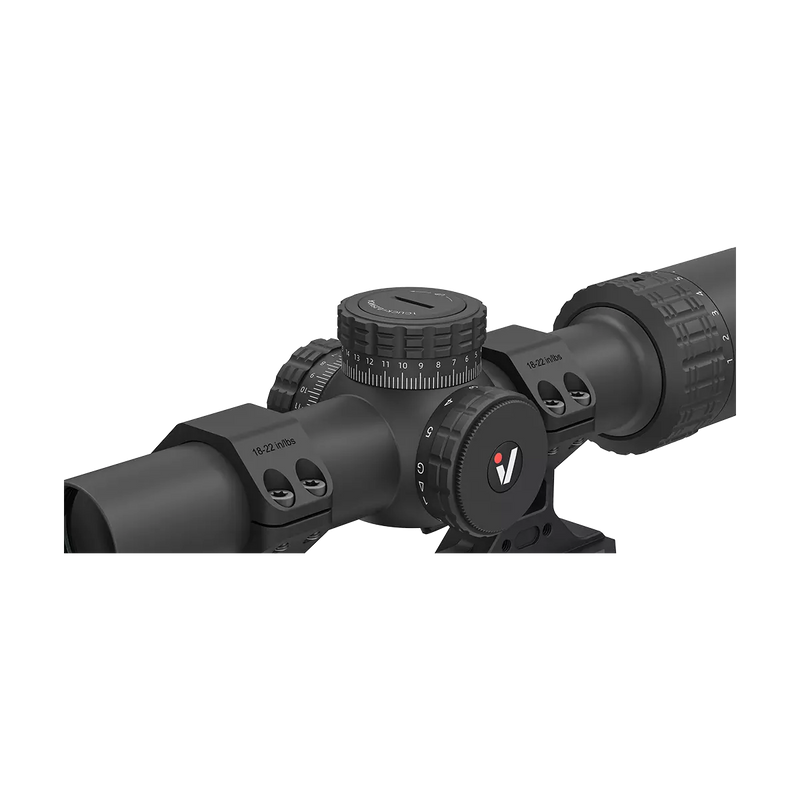

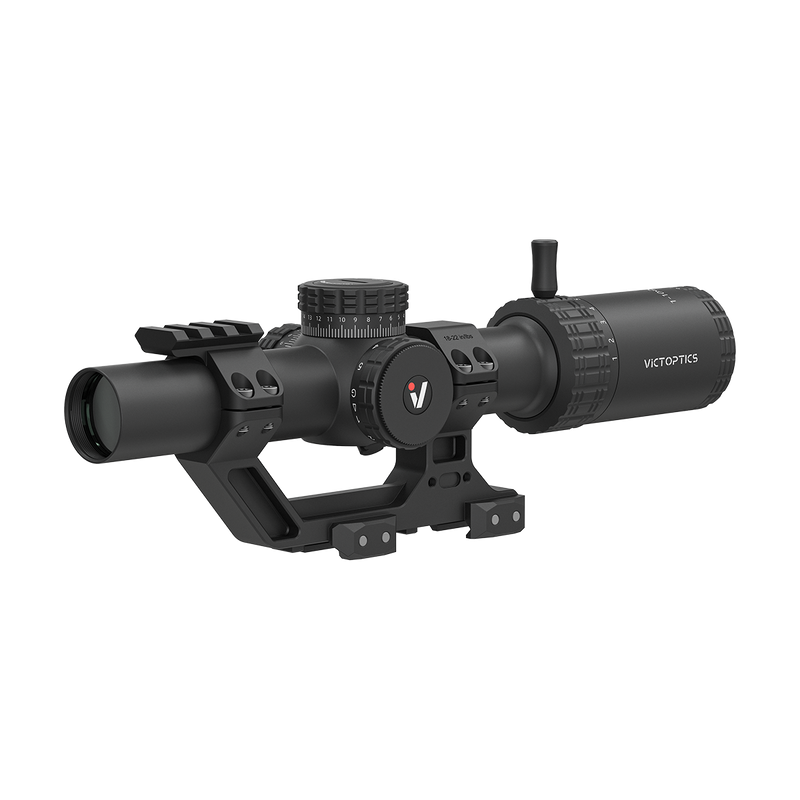

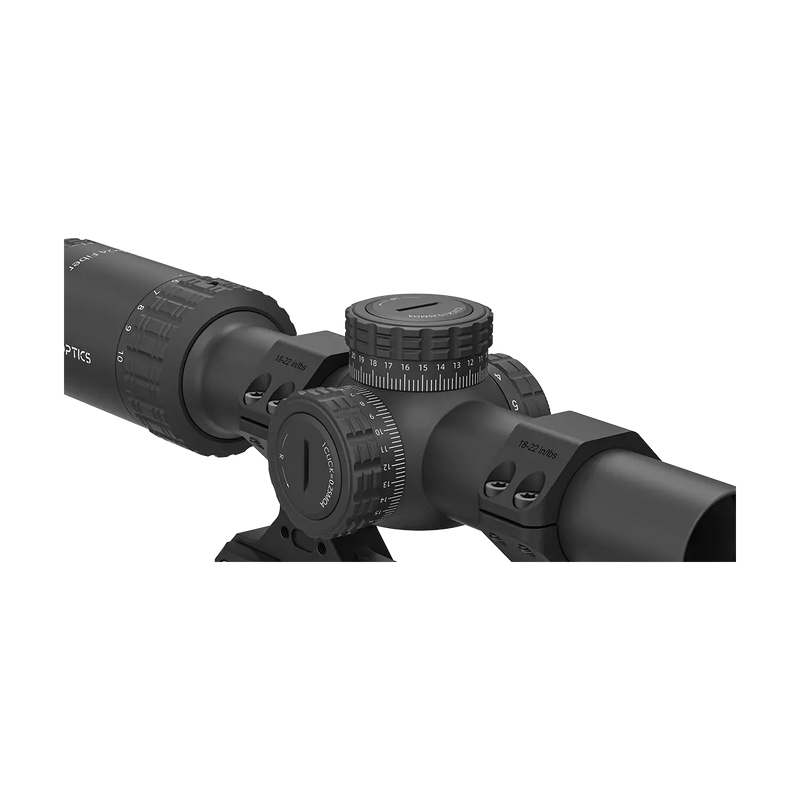

OPSL139 S10 1-10x24i LPVO Fiber SFP Rifle Scope w/ 1-Piece Extreme High Picatinny AR Mount Kit
- A Kit Includes S10 1-10×24i LPVO SFP Scope & 1-Piece Picatinny Mount, w/ 1.93 in (49 mm) Center Height for AR Shooting Position

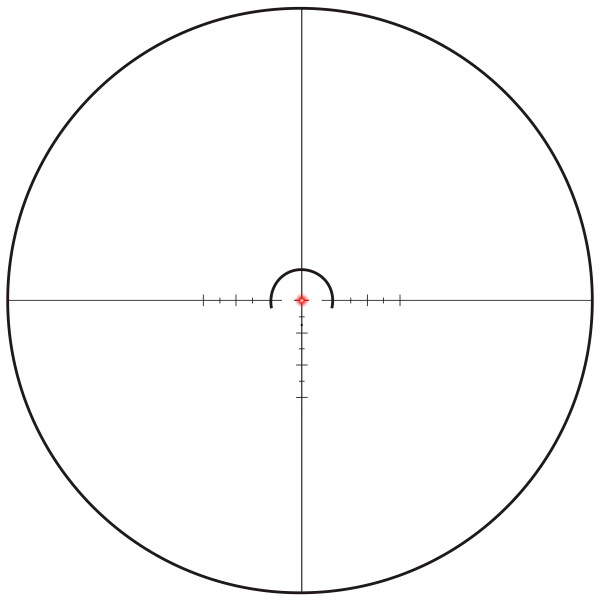

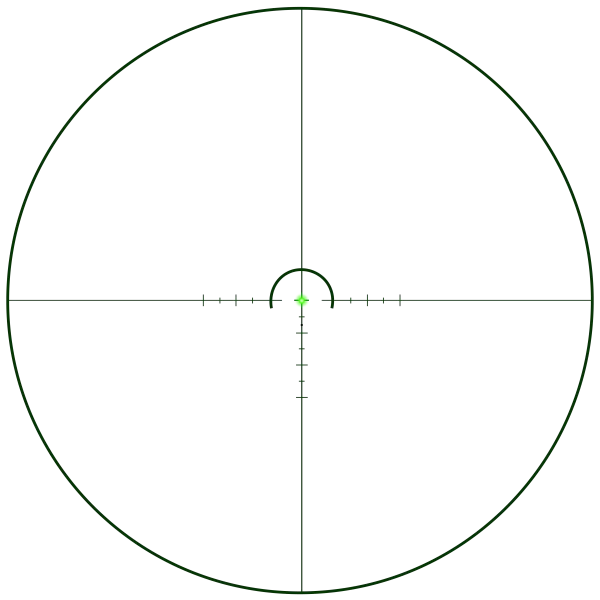

- Fiber Optic Reticle w/ Bright Center Dot for Clear Aiming in Bright Light, Ensuring Precise Targeting During Daytime Shooting
- Extensive Elevation Range of over 120 MOA w/ Precise 1/4 MOA Click Value, Supports Flexible Zeroing Across Different Setups
- Fully Multi-Coated Lens Delivers Bright, Crisp Imaging with Consistent Edge-to-Edge Clarity Across the Entire Field of View
- Comes with an Extra Interchangeable Ring Cap, Offering More Options for DIY Customization and a Personalized Mounting Style
Specification
Optical Parameter
| Specification | Details |
|---|---|
| Magnification: | 1-10x |
| Objective Lens Dia: | 24 mm |
| Focal Plane: | Second Focal Plane |
| Eye Relief: | 101 mm / 4.0 in |
| Lens Coating: | Fully multi-coated |
| Linear Field of View @ 100 yd: | 111-11.1 ft @ 100 yards |
| Linear Field of View @ 100 m: | 37-3.7 m @ 100 meters |
| Angular Field of View: | 21.2-2.1 ° |
| Reticle: | VS10-2 MOA |
Mechanical Parameter
| Specification | Details |
|---|---|
| Tube Dia: | 30 mm |
| Parallax Setting: | 100 yards |
| Click Value: | 1/4 MOA |
| Turret Function: | Turret Lock |
| Elevation Adjustment Range: | >120 MOA |
| Windage Adjustment Range: | >120 MOA |
| Diopter Compensation: | -2 to +2 |
| Illumination: | 5 Gears Red and Green Illumination, On/off Switch |
| Battery Type (Not Include): | CR2032 |
| Waterproof: | IPX5 |
| Fogproof: | Nitrogen Filled |
| Shockproof: | 750 G |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Length: | 274.0 mm / 10.79 in |
| Weight (Net): | 597 g / 21.1 oz |

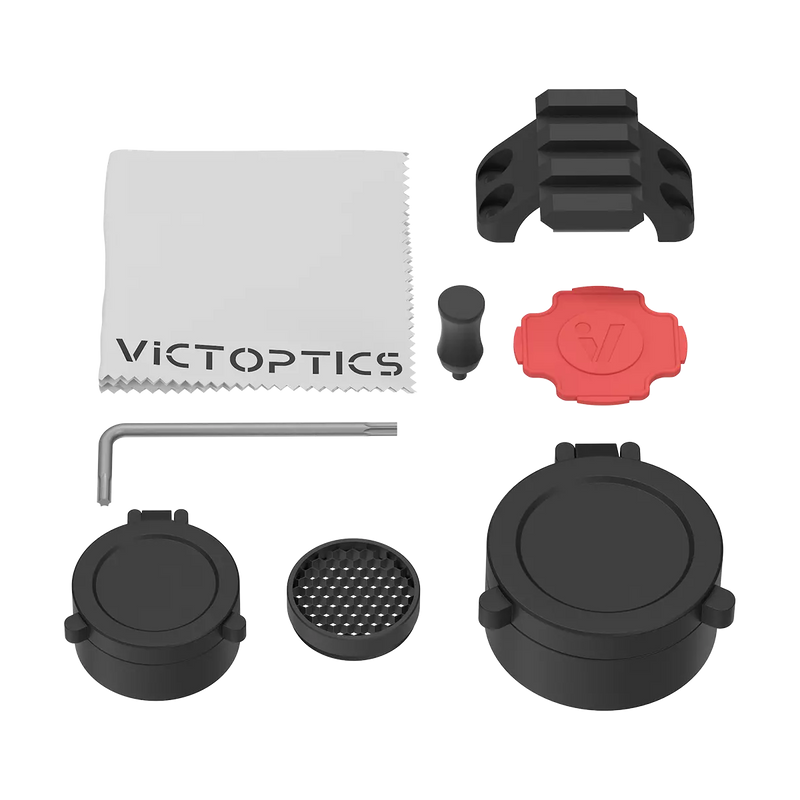

| Items in the Package (Complete Kit): | honeycomb sunshade, extra Picatinny-style ring caps, hex key, plastic wrench, power throw lever, flip-up caps, cleaning cloth, etc. |
Picatinny AR Mount Parameter
| Specification | Details |
|---|---|
| Ring Dia: | 30 mm |
| Height: | 72 mm / 2.83 in |
| Center Height: | 49 mm / 1.93 in (Bottom to Center) |
| Length: | 140 mm / 5.51 in |
| Materia: | 6061-T6 Aluminum Alloy |
| Weight: | 161 g / 5.68 oz |
| Mount: | Picatinny |
| Finish: | Matte Black |
