Feature

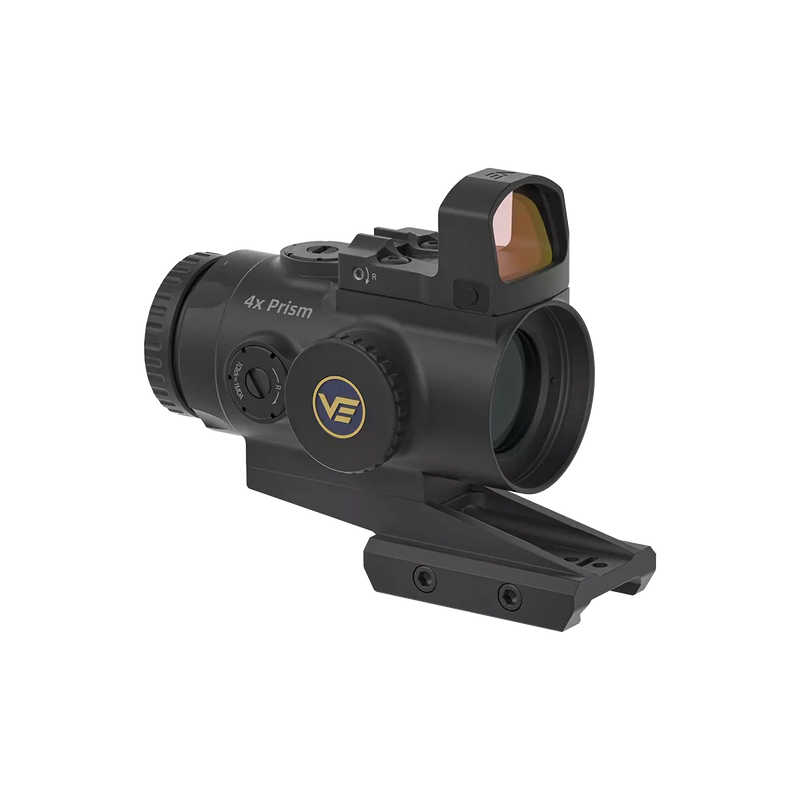

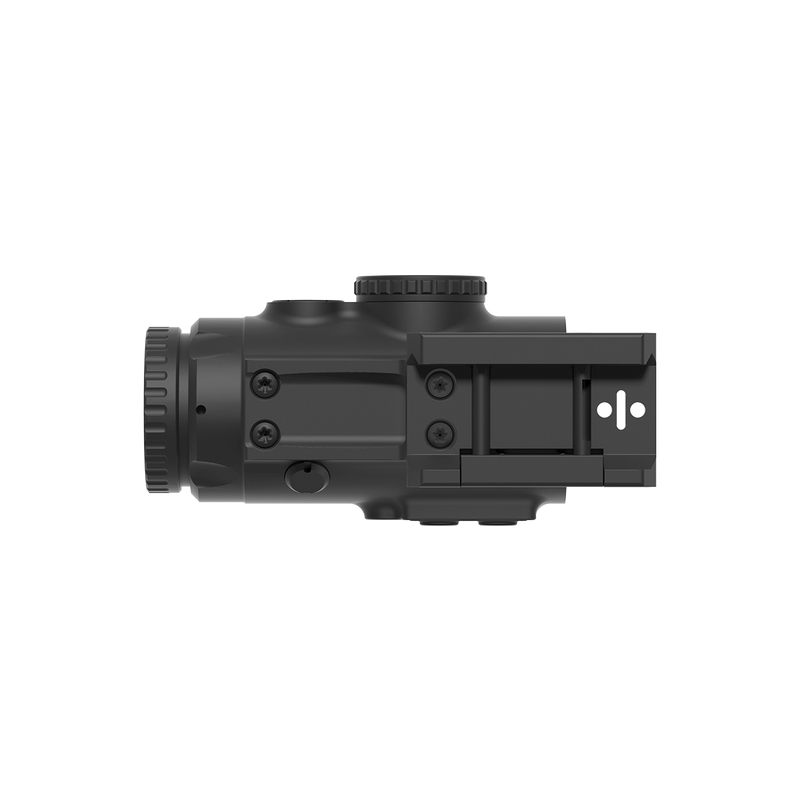

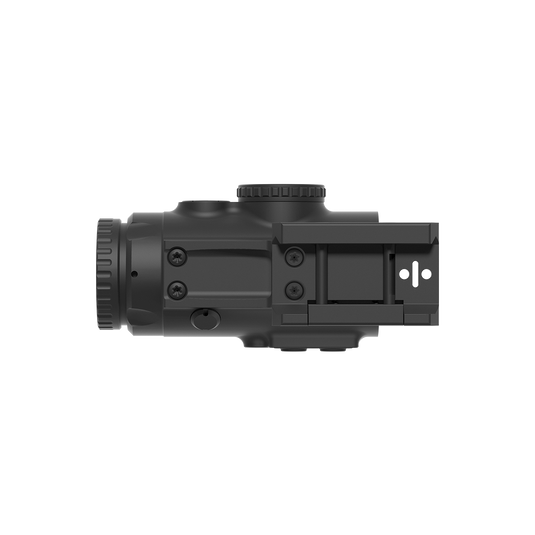

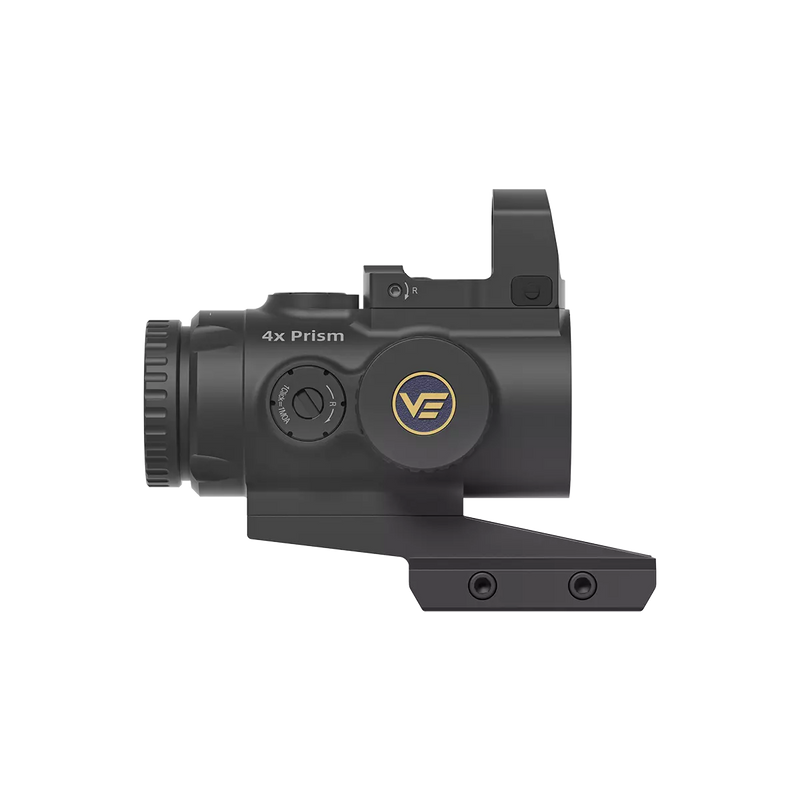

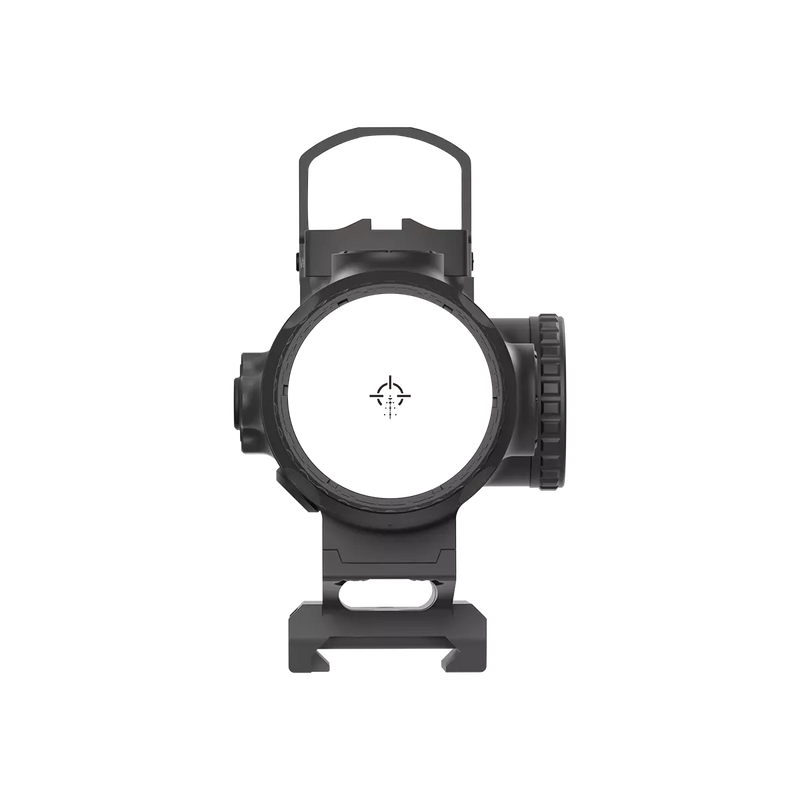

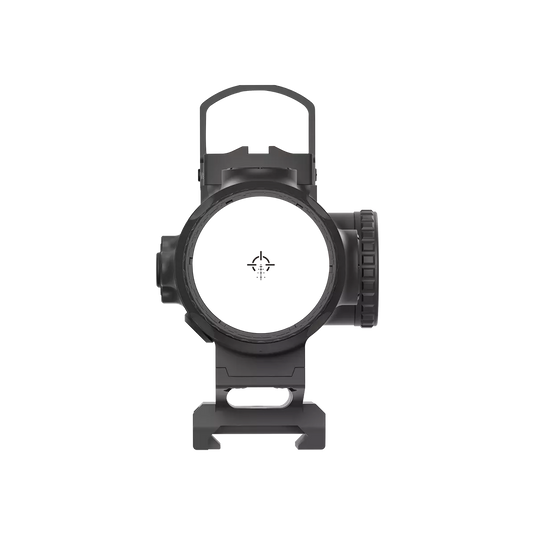

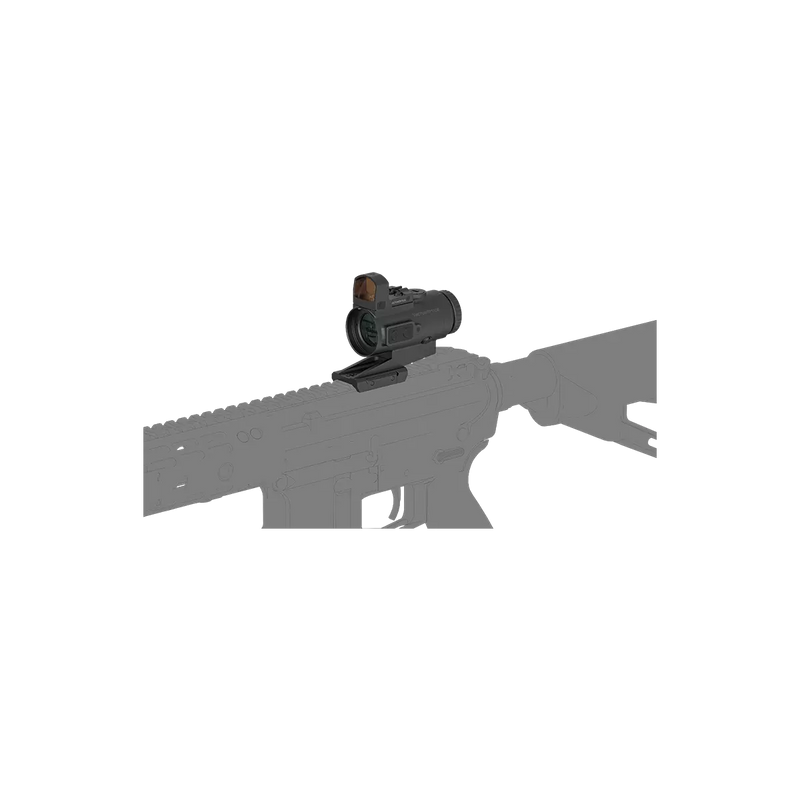

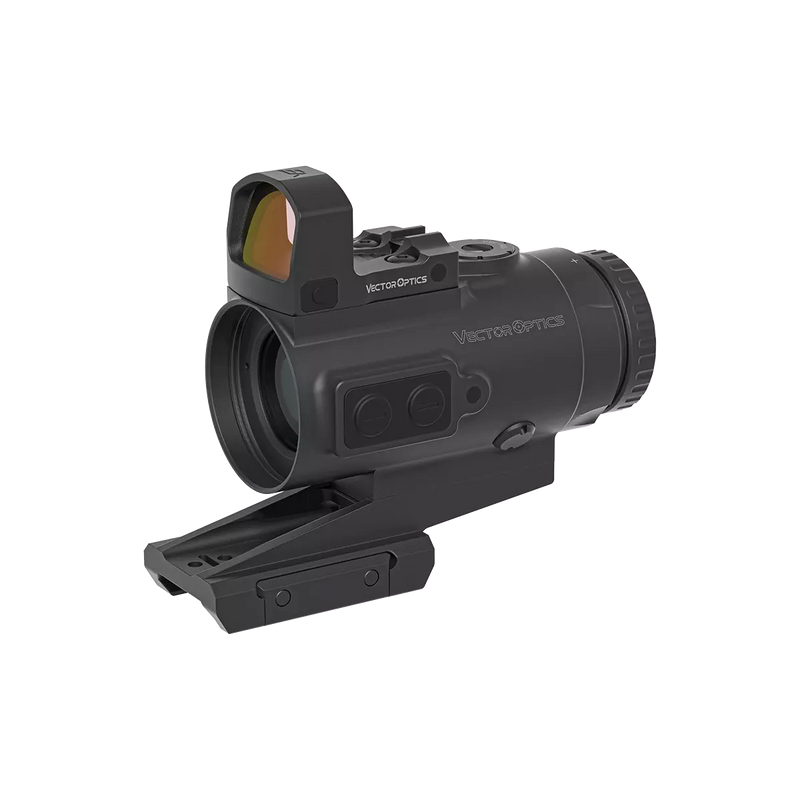

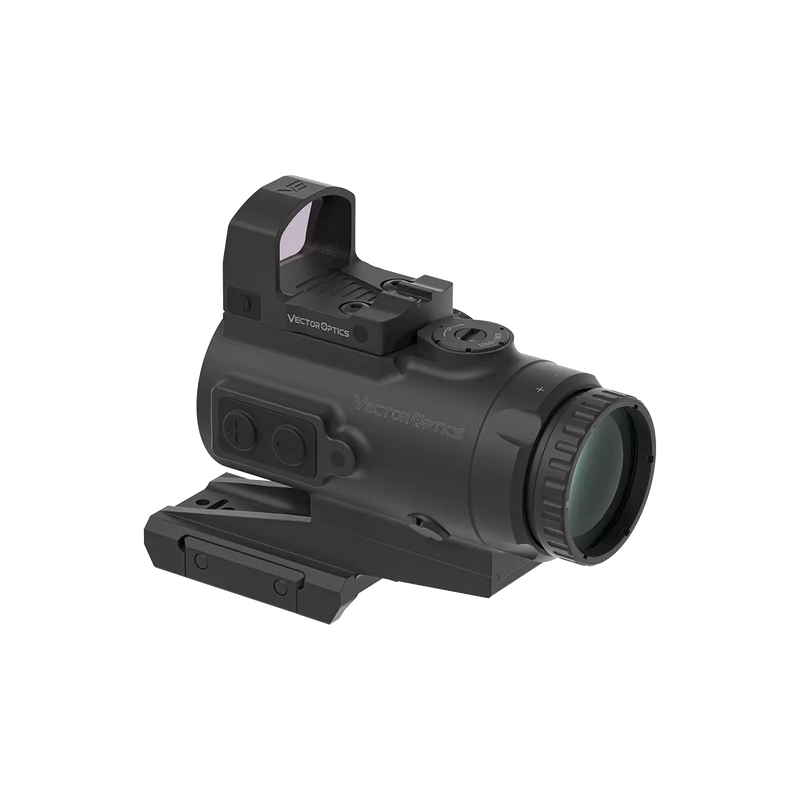

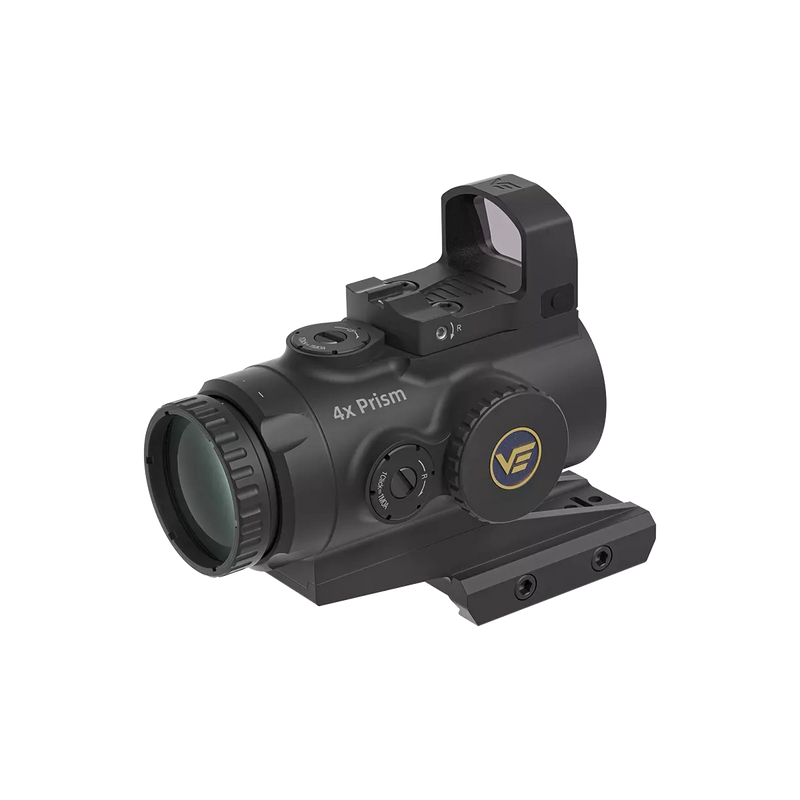

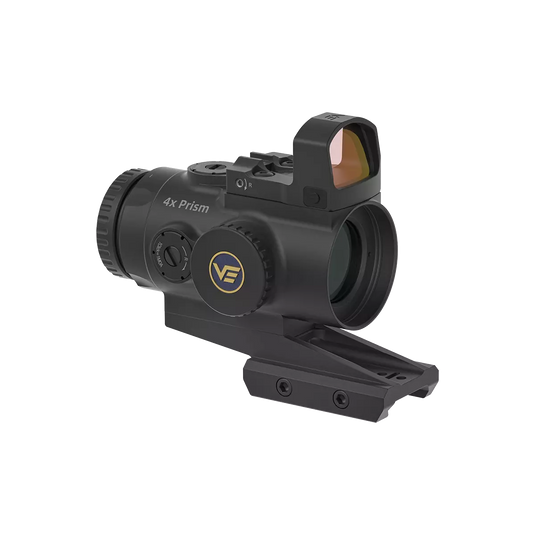

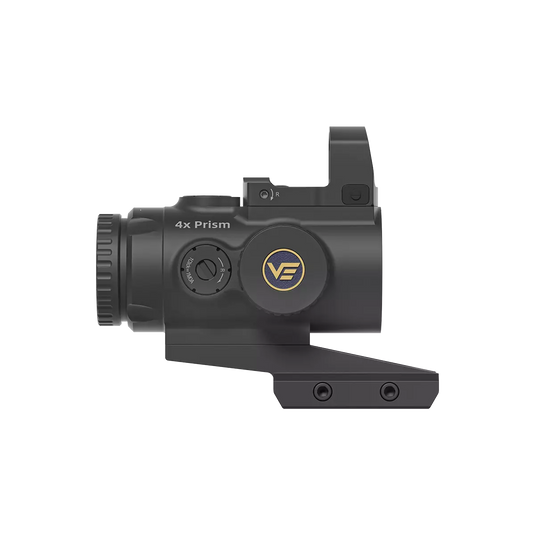

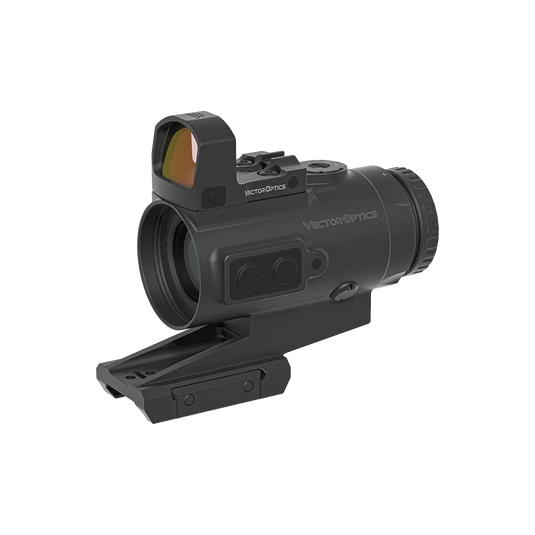

VOGP-01 Paragon 4x24 Mini Prism & Frenzy 1x17x24 Green Dot Kit | Cantilever Picatinny Mount
- Complete Kit Includes Paragon 4x24 Mini Prism Scope, Frenzy 1x17x24 Green Dot Sight and Cantilever Picatinny Riser Mount
- 4x Prism w/ 10-Gear Illumination Delivers Crisp Mid-Range Accuracy, w/ MGT Platform Allowing Green Dot Sight Atop for Fast CQB Shift
- 5MOA Green Dot, Astigmatism-Friendly and 18.4g (0.65oz) Lightweight, Offers Fast Target Acquisition, Ideal for Close-Quarter Backup

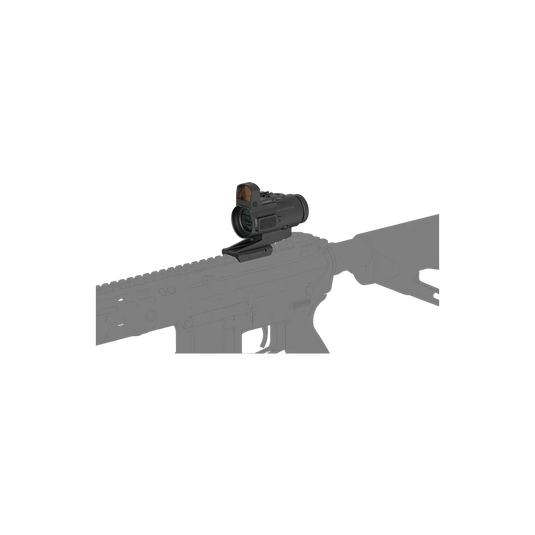

- Cantilever Riser Ensures Proper Alignment, w/ Center Heights of 1.38in (35mm) for the Prism and 2.68in (68mm) for the Green Dot
Specification

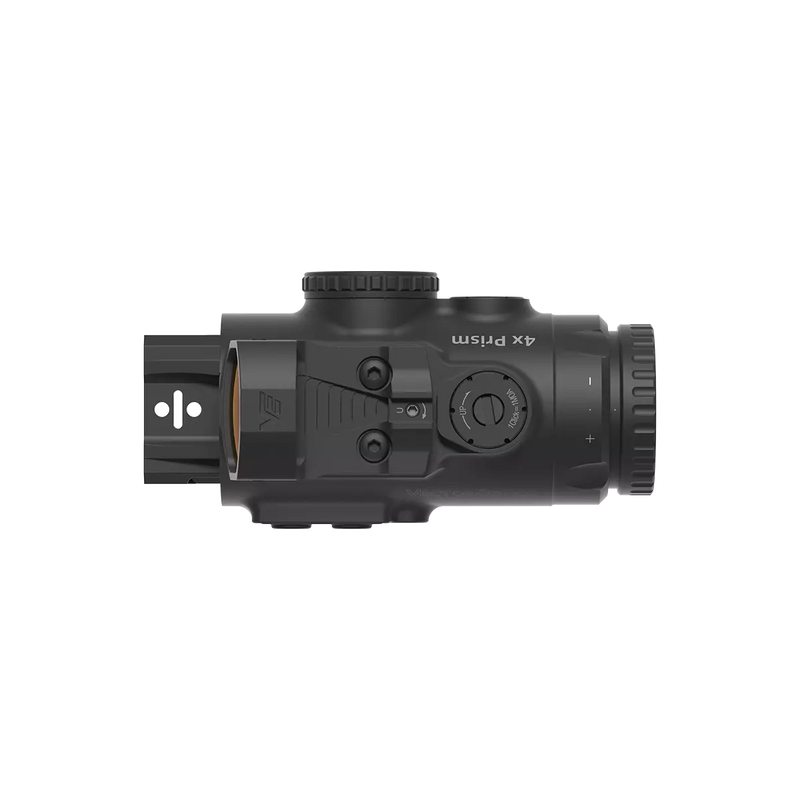

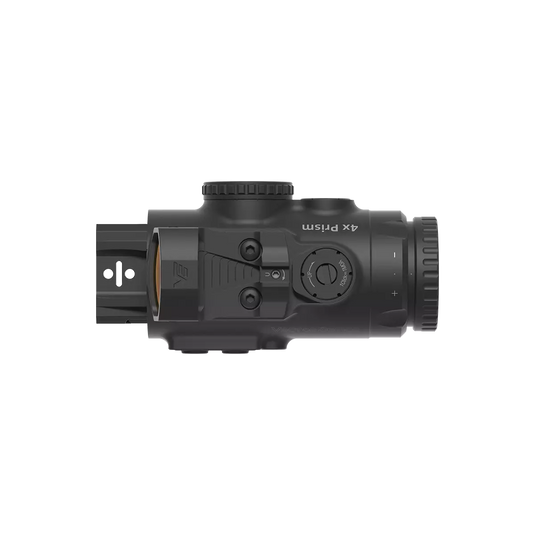

Paragon 4x24 Mini Prism Scope
| Specification | Details |
|---|---|
| Magnification: | 4x |
| Objective Lens Dia: | 24 mm |
| Focal Plane: | N/A |
| Eye Relief: | 67.5 mm / 2.65 in |
| Lens Coating: | Fully Multi-Coated |
| Linear Field of View @ 100 yd: | 28.8 ft @ 100 yards |
| Linear Field of View @ 100 m: | 9.6 m @ 100 meters |
| Reticle: | VEPS-MBR, Etched |
| Parallax Setting: | 100 yards |
| Tube Dia: | N/A |
| Click Value: | 1 MOA |
| Turret Function: | N/A |
| Elevation Adjustment Range: | >40 MOA |
| Windage Adjustment Range: | >40 MOA |
| Diopter Compensation: | -2 to +2 |
| Illumination Setting: | 10 Levels Red |
| Battery Type (Not Include): | CR2032 |
| Waterproof: | IP67 |
| Fogproof: | Filled Nitrogen |
| Shockproof: | 1000 G |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Length: | 81 mm / 3.2 in |
| Weight (Without Mount): | 250 g / 8.8 oz |
| Center Height (From Base to Prism Scope): | 35 mm / 1.38 in |

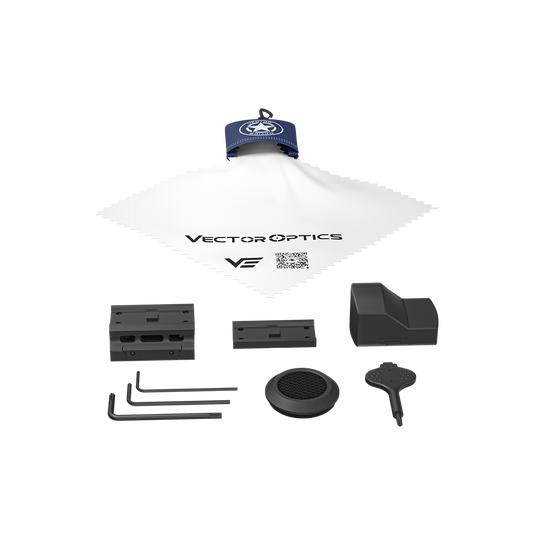

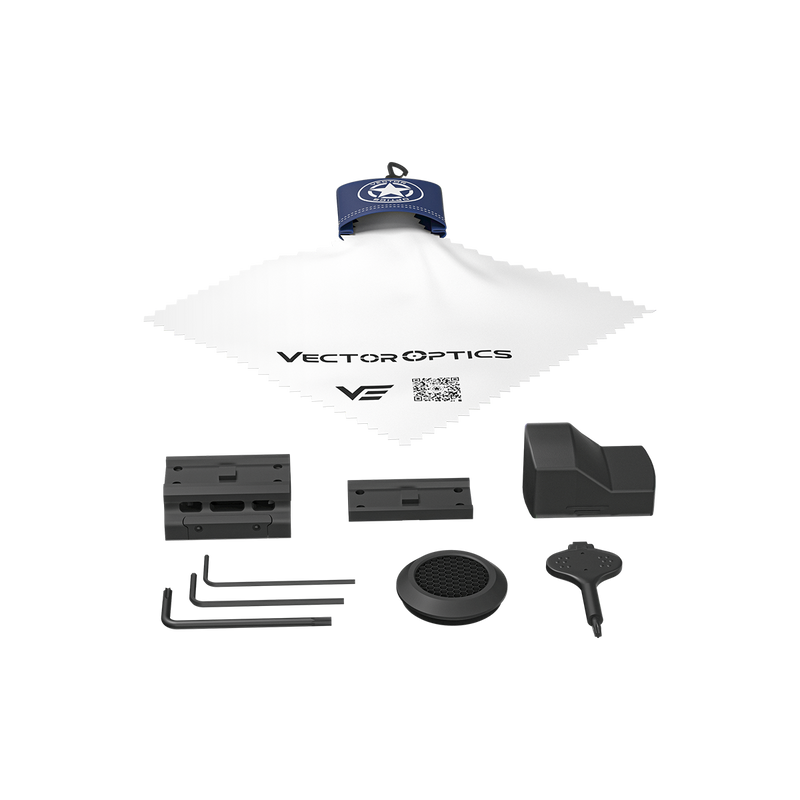

| Items in the Package (Complete Kit): | Plastic Adjustment Wrench, Honeycomb Sunshade, Riser Mount, Riser Section, Hex Keys, Cleaning Cloth, etc. |
Frenzy 1x17x24 Green Dot Sight
| Specification | Details |
|---|---|
| Magnification: | N/A |
| Window Lens Size: | 17x24 mm / 0.7x0.9 in |
| Parallax: | Free (<2MOA) |
| Parallax Setting: | 25 yards |
| Dot Size: | 5 MOA |
| Reticle Color: | Green |
| Sensor: | Motion Sensor |
| Click Value: | 1 MOA |
| Elevation Adjustment Range: | >45 MOA |
| Windage Adjustment Range: | >45 MOA |
| Footprint: | MGT |
| llumination Setting: | 8 Daytime & 2 Night Vision |
| Battery Type (Not Include): | CR2032 |
| Battery Life: | Up to 50,000 hours |
| Battery Placement: | Bottom |
| Waterproof: | IPX6 |
| Shockproof: | 1000 G |
| Working Temperature: | -20~+55° C |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Mount Material: | 6061-T6 Aluminum Alloy |
| Weight (Without Mount): | 18.4 g / 0.65 oz |
| Center Height (From Base to Green Dot): | 68 mm / 2.68 in |
| Finish: | Matte Black |
Cantilever Picatinny Riser Mount
| Specification | Details |
|---|---|
| Height: | 11 mm / 0.45 in |
| Length: | 43.5 mm / 1.7 in |
| Material: | 6063-T6 Aluminum Alloy |
| Mount: | Picatinny |
| Weight: | 35 g / 1.2 oz |
| Finish: | Matte Black |
Size
Reticle
VEPS-MBR
Prism scope reticle VEPS-MBR could be used for CQB Best for close to mid-range shooting
VEPS-MBR Subtension
.223 BDC for fast target acquisition 1MOA center dot for close-range precise aiming Red center ring with 10 gear illuminations for fast target acquisition
5 MOA Green Dot
Ideal for fast target acquisition or matching personal shooting preferences User-friendly for astigmatism, reducing center dot starburst effects
Footprint
Download
User Manual Frenzy Red Dot Sight
