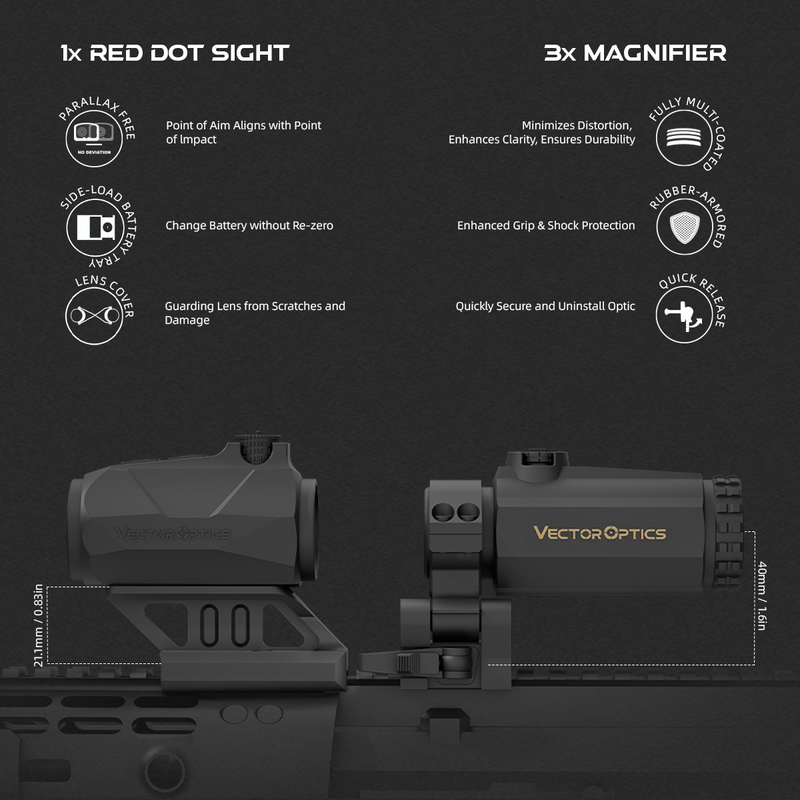

FEATURE
Maverick-IV 1x20 Mini Rubber Armored Reflex Sight MIL (SOP)

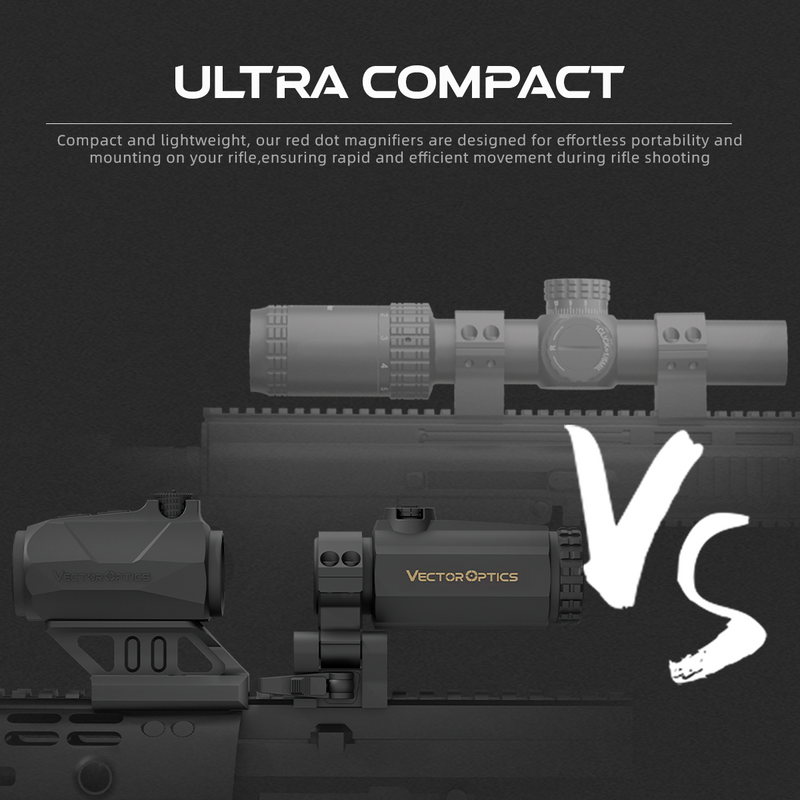

· Extreme Compact Size Only 68mm 2.7in Length, Combining Solid and Lightweight
· 3 MOA Dot Size, Audible 1 MOA Click Value for Precise and Effortless Adjustments
· Lower 1/3 Co-Witness Design: 41mm /1.6in Height from Base to Red Dot Center
· Rubber Armored Material Black/FDE Finish Ensures a Scratch-Free and Robust Surface
· Unlimited Eye Relief, Parallax Less Than 3MOA at 50 Yards for Precise Shooting
SPECIFICATIONS
Maverick-IV 1x20 Mini Rubber Armored Reflex Sight MIL (SOP)
| Specification | Details |
|---|---|
| Magnification: | N/A |
| Objective Lens Dia: | 20 mm |
| Parallax: | Free (<3 MOA) |
| Parallax Setting: | 50 yards |
| Dot Size/ Reticle: | 3 MOA |
| Dot/ Reticle Color: | Red |
| Sensor: | N/A |
| Click Value: | 1 MOA |
| Elevation Adjustment Range: | >45 MOA |
| Windage Adjustment Range: | >45 MOA |
| Footprint: | N/A |
| Mounting Rail: | Weaver |
| Illumination Setting: | 10 Levels |
| Battery Type (Not Include): | CR2032 |
| Battery Placement: | Side-Loading |
| Waterproof: | IP56 |
| Shockproof: | N/A |
| Working Temperature: | -20~+55° C |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Mount Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black/FDE |
| Weight (Net): | 140 g / 4.9 oz ( Without Mount ) |
| Items in the Package: | Honeycomb Sunshade, QD Cantilever Weaver Mount, Low Weaver Mount, Flip-up Caps, Cleaning Cloth, etc. |
MAVERICK-III 3X22 MAGNIFIER MIL
| Specification | Details |
|---|---|
| Magnification: | 3x |
| Objective Lens Dia: | 22mm |
| Exit Pupil: | 7.0mm / 0.3in |
| Length: | 103mm (4.1 inch) |
| Height: | 36mm / 1.4 inch (Base to Center) |
| Weight (net): | 290g / 10.2oz (with Mount) |
| Eye Relief: | 69mm / 2.7 Inch |
| Field of View (ft@100yds): | 49 feet |
| Optics Coating: | Fully Multi-Coated |
| Shockproof: | 750 G |
| Windage and Elevation: | ≥ 90 MOA |
| Material: | 6061-T6 Aluminum Alloy |
| Housing Material: | Armored Rubber |
| Finish: | Matte Black |
| Mounting Rail: | Picatinny |
| Items in the Package: | 30mm Flip Side Mount, Instruction, Cleaning Cloth, Hex Keys, etc. |
RED DOT COMPATIBILITY
Maverick-III 3X22 Magnifier MIL（SCMF-31&32）
| Red Dot Series | Product Name | SKU | Mounting | |
| Direct Fit | Requires Riser | |||
| Scrapper | Scrapper 1x22 Red Dot Sight | SCRD-45 | √ | |
| Scrapper 1x22 Solar Power Multi Reticle Red Dot Sight | SCRD-SM45 | |||
| Scrapper 1x25 Red Dot Sight | SCRD-46 | √ | ||
| Scrapper 1x25 Solar Power Multi Reticle Red Dot Sight | SCRD-SM46 | |||
| Scrapper 1x29 Red Dot Scope | SCRD-47 | √ | ||
| Scrapper 1x20 Nano Red Dot Sight | SCRD-69 | √ | ||
| Scrapper 1x25 Nano Enclosed Red Dot Sight | SCRD-74 | √ | ||
| Frenzy Plus | Frenzy Plus F3 1x18x20 Enclosed Reflex Sight | SCRD-63 | +SCFRM-15 | |
| Frenzy Plus F3 1x18x20 Enclosed Sight Solar Power Multi-Reticle | SCRD-SM63 | |||
| Frenzy Plus 1x18x20 Enclosed Reflex Sight Coyote FDE | SCRD-F63 | |||
| Frenzy Plus 1x31x26 Red Dot Sight | SCRD-67 | √ | ||
| Frenzy Plus 1x31x26 Multi-Reticle Red Dot Sight | SCRD-M67 | |||
| Frenzy Plus 1x31x26 Solar Red Dot Sight | SCRD-S67 | |||
| Maverick 1x22 Red Dot Sight S-MIL | SCRD-41 | +MAV-P08 | ||
| Maverick 1x22 S-SOP Red Dot Sight | SCRD-42 | |||
| Maverick 1x22 Rubber Cover Red Dot Sight | SCRD-38 | +MAV-P08 | ||
| Maverick 1x22 Flat Dark Earth Rubber Cover | SCRD-39 | |||
| Maverick-IV 1x20 Mini Rubber Armored Reflex Sight MIL | SCRD-60 | +MAV-P08 | ||
| Maverick-IV 1x20 Mini Rubber Armored Reflex Sight SOP | SCRD-61 | |||
| Nautilus | Nautilus Quick Release 1x30 Red Dot Scope | SCRD-26II | √ | |
| Nautilus 1x30 Red Dot Scope Double Reticle | SCRD-D26 | √ | ||
| Centurion | Centurion 1x20 Red Dot Sight | SCRD-33 | √ | |
| VictOptics SRD | VictOptics SRD 1x20 Reflex Sight Graphite Finish Red Dot | RDSL27 | √ | |
| VictOptics SRD 1x20 Red Dot Reflex Sight | RDSL28 | |||
MAGNIFIER COMPATIBILITY
Required Mount Setup: VAS™ Red Dot Sight Picatinny Low Mount (SCRA-75) + VAS™ RUM Footprint Adapter (SCRA-RUM1)
Remove the original mount first, then install the setup above.
|
Center Height |
Compatible Magnifier |
SKU |
|
1.41 in / 35.8 mm |
Maverick-III 3x22 MIL Magnifier |
SCMF-31 |
|
Maverick-III 3x22 Magnifier SOP |
SCMF-32 |
|
|
Paragon 3x18 Mini Magnifier |
SCMF-33 |
|
|
Paragon 5x30 Mini Magnifier |
SCMF-34 |
|
Center Height |
Compatible Magnifier |
SKU |
|
1.57 in / 39.9 mm |
Maverick 3x22 Magnifier |
SCMF-16 |
|
Paragon 3x18 Mini Magnifier (with 4 mm Riser) |
SCMF-33 |
|
|
Paragon 5x30 Mini Magnifier (with 4 mm Riser) |
SCMF-34 |
|
|
Maverick-IV 3x22 Rubber-Armored Mini Magnifier |
SCMF-35 |
|
|
Maverick 5x22 Magnifier |
SCMF-36 |
|
|
Maverick-III 3x22 Magnifier |
SCMF-37 |
|
|
Maverick-III 3x22 FDE Magnifier |
SCMF-38 |
|
|
Maverick-IV 3x22 Mini Metal Magnifier |
SCMF-41 |
|
|
SOM 3x Magnifier |
VIMF-01 |
PAIRING
Red Dot & Magnifier Compatibility — SCMF-31 (1.60 in / 40 mm)
|
Brand |
Model |
Center Height |
Compatibility |
|
Holosun |
AEMS (Advanced Enclosed Micro Sight) |
1.63 in / 41.4 mm |
Direct Fit |
|
HS403 / HS503G |
1.63 in / 41.4 mm |
Direct Fit |
|
|
ARO CORE / ARO EVO |
1.63 in / 41.4 mm |
Direct Fit |
|
|
Trijicon |
MRO@ (Miniature Rifle Optic) |
Lower 1/3 Co-Witness: 1.66 in / 42 mm |
Direct Fit |
|
EOTech |
XPS2 / XPS3 |
1.50 in / 38 mm |
Direct Fit |
|
G33 |
1.50 in / 38 mm |
Direct Fit |
|
|
G34 |
1.50 in / 38 mm |
Direct Fit |
|
|
Aimpoint |
PRO® (Patrol Rifle Optic) |
1.50 in / 38 mm |
Direct Fit |
|
Micro T-2 / H-2 |
1.50 in / 38 mm |
Direct Fit |
|
|
Duty RDS |
1.50 in / 38 mm |
Direct Fit |
|
|
3XMag-1 / 3X-P |
1.50 in / 38 mm |
Direct Fit |
|
|
SIG SAUER |
ROMEO4T™ |
Lower 1/3 Co-Witness: 1.63 in / 41.4 mm |
Direct Fit |
|
Vortex |
Micro3X |
Lower 1/3 Co-Witness: 1.63 in / 41.4 mm |
Direct Fit |
|
Triumph 2 |
Lower 1/3 Co-Witness: 1.57 in / 40 mm |
Direct Fit |
|
|
AMG UH-1 Gen II |
Lower 1/3 Co-Witness: 1.57 in / 40 mm |
Direct Fit |
Red Dot & Magnifier Compatibility — SCMF-32 (1.40 in / 35.6 mm)
|
Brand |
Model |
Center Height |
Compatibility |
|
Holosun |
HS510C |
1.41 in / 35.8 mm |
Direct Fit |
|
HS512C |
1.41 in / 35.8 mm |
Direct Fit |
|
|
HM3X |
1.41 in / 35.8 mm |
Direct Fit |
|
|
HM3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG SAUER |
ROMEO5™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
ROMEO4T™ |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG JULIET3 |
1.41 in / 35.8 mm |
Direct Fit |
|
|
SIG JULIET3 Micro |
1.41 in / 35.8 mm |
Direct Fit |
|
|
Vortex |
Micro3X |
Absolute Co-Witness: 1.41 in / 35.8 mm |
Direct Fit |
|
Primary Arms |
SLx 3X Micro |
1.41 in / 35.8 mm |
Direct Fit |
VIDEOS
DOWNLOAD
Paragon & Maverick Magnifier User Manual
