SKU: SCACD-23

30mm One Piece ACD Mount

SHIPS FROM
US
Style
4 items left

Features

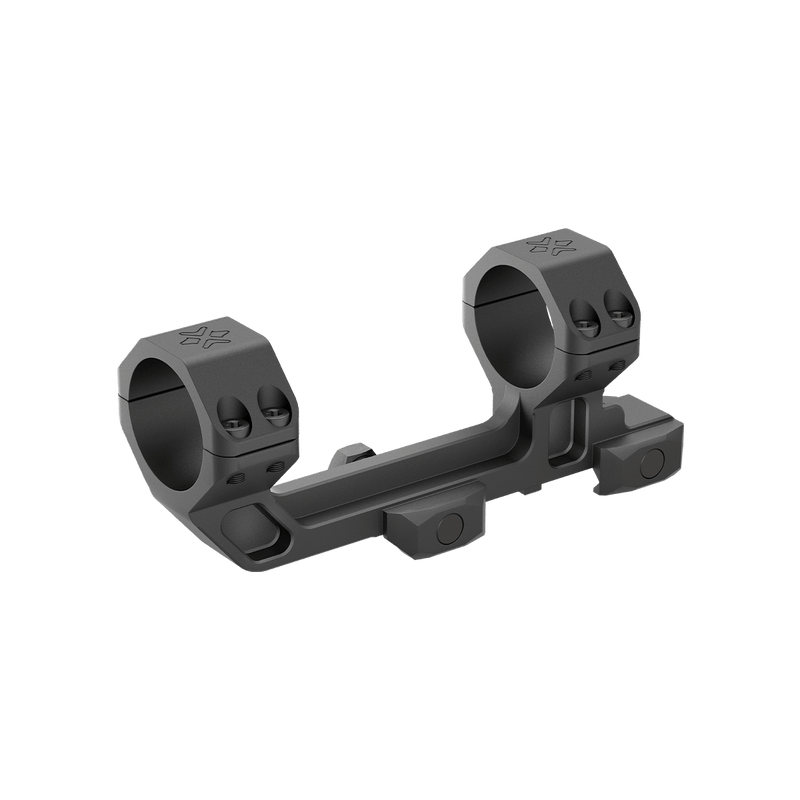

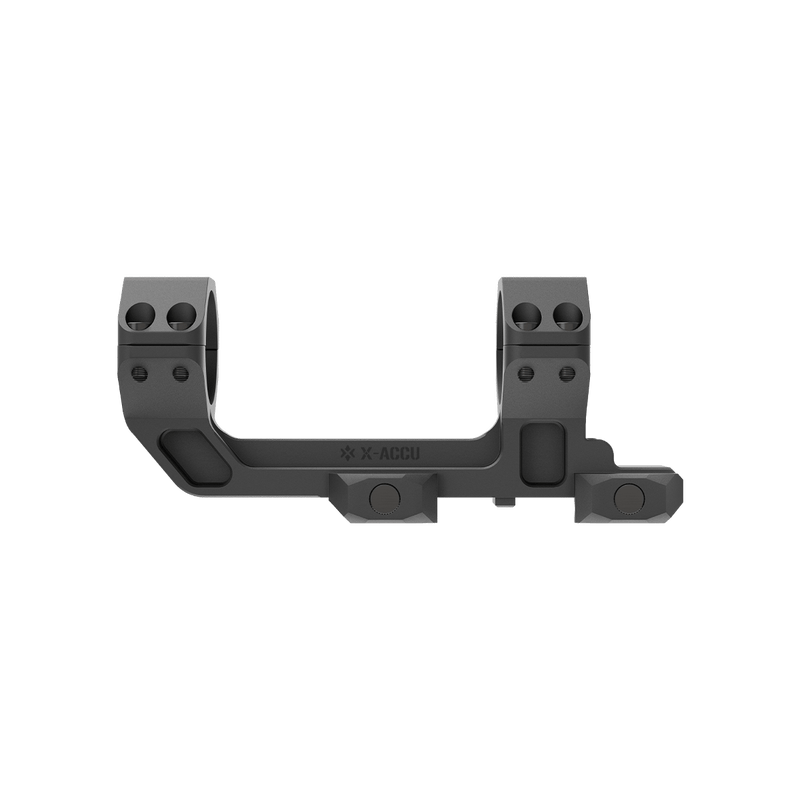

SCACD-23

  • 38mm 1.5in Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined.
  • Four Screws per Ring, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar.
  • With Air Bubble Level Indicating the Level Condition.

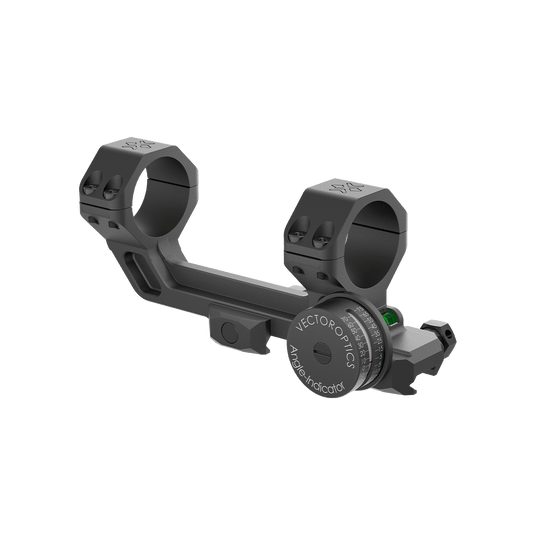

    SCACD-24

    • 38mm 1.5in Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined.
    • Four Screws per Ring, 21mm Picatinny Mount with Two Crossing Bolts & Anti-Retreat Bar.
    • Angle Indicator and Scope Level Help You Shoot with Precision at Long Range.

      SCACD-25

      • 38mm 1.5in Bottom to Ring Center, Extremely Accurate w/ Full CNC Machined.
      • Four Screws per Ring, 11mm Dovetail Mount with Anti-Retreat Pin.
      • Cantilever Dual Ring Scope Base Mount w/ Air Bubble Level, Helps You Shoot with Precision at Long Range.

        Specification

        SCACD-23

        • Ring Diameter: 30mm
        • Overall Length: 138mm / 5.4in
        • Overall Height: 40mm / 1.6in
        • Mount Length: 120mm / 4.7in
        • Ring Width: 45mm / 1.8in
        • Central Height: 38mm / 1.5in, bottom to center
        • Gap Length: 73mm / 2.9in
        • Material: 6061-T6 aluminum alloy
        • Weight: 152g / 5.36oz
        • Mount: 1913 Picatinny
        • Finish: Black matte
        • Screws per ring: 4
        • High-durability aluminum alloy in black matte
        • Do not use over 18 inch / pounds of torque on the scope rings' screws
        • Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the picatinny rail
        • Cantilever scope mount with anti cant device buble lever designed for hard and rigorous use.
        • With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts.

        SCACD-24

        • Ring Diameter: 30mm
        • Length: 140mm / 5.5in
        • Height: 58mm / 2.2in
        • Central Height: 38mm / 1.5in, bottom to center
        • Material: 6061-T6 aluminum alloy
        • Weight: 130g / 4.6oz
        • Mount: 11mm Dovetail
        • Finish: Black matte
        • Screws per ring: 4
        • High-durability aluminum alloy in black matte
        • Do not use over 18 inch / pounds of torque on the scope rings' screws
        • Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the Dovetail rail.
        • Cantilever scope mount with anti cant device buble lever designed for hard and rigorous use.
        • With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts.

          SCACD-25

          • Ring Diameter: 30mm
          • Length: 140mm / 5.5in
          • Height: 58mm / 2.2in
          • Central Height: 38mm / 1.5in, bottom to center
          • Material: 6061-T6 aluminum alloy
          • Weight: 130g / 4.6oz
          • Mount: 11mm Dovetail
          • Finish: Black matte
          • Screws per ring: 4
          • High-durability aluminum alloy in black matte
          • Do not use over 18 inch / pounds of torque on the scope rings' screws
          • Suggest 25 inch / pounds (Can Accept Max 45 Inch / Pounds) torque force for big nuts when installing the mount on the Dovetail rail.
          • Cantilever scope mount with anti cant device buble lever designed for hard and rigorous use.
          • With T15 torx wrench and retail package, the T15 torx wrench can be used to fasten the clamp nuts
