Red Dot Installation Instruction Chart for Pistol

by Zejun Wu

To install the red dot, you need to figure out the following questions.

Does the pistol have optics-ready system?

What is your red dot footprint?

Does the footprint match with the pistol slide cut?

Do you need a mount plate of which the bottom side match the pistol and the upper side match the red dot?

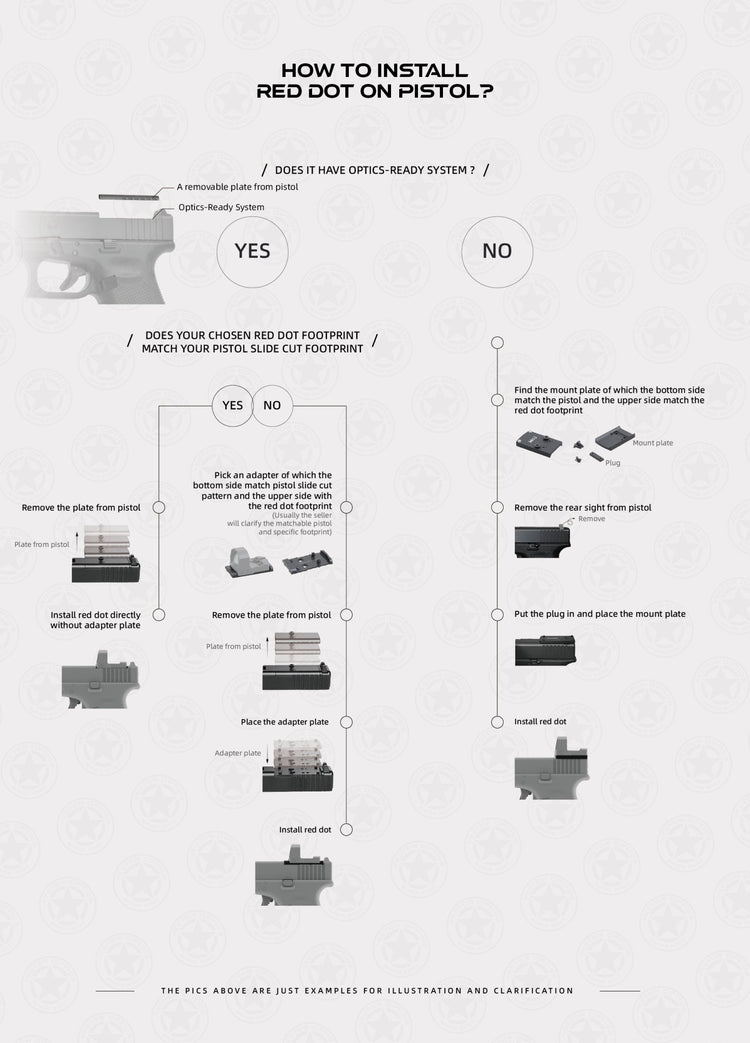

Check out the guide below!

by Zejun Wu
