Do you know how to “set zero of a scope”?

September 27, 2021 2 min read

Welcome to visit this blog of Vector Optics Online Store.

As we know, when we start to use a new scope for shooting, you must know we need to set it zero. But we often are asked how to set by our customers

Today let us introduce this particularly.

Before we set zero, we need to zero it firstly.

(The item in the picture above is our Continental 4-24x56 FFP Riflescope

What is “zeroing a scope?



Zeroing a scope is to align the POA ("point of aim") and the POI ("point of impact") at a specific distance when you use it first time. So that you are able to hit accurately where you're aiming at.

How to zero?



1. Shoot in 50m or 100m or other distance you want.

2. Adjust the elevation and windage



3. Shoot again

4. Back to the stage 2 several times until the POA is aligned with the POI

5. Done

In many cases, you will find when the scope was at “zero”, the turret cap maybe isn’t at the position of the marked “0”.

So, in order to facilitate our shooting, we need to “reset zero”.

How to reset zero?



For different turret caps, reset zero is done differently. Here we take two turret caps from Vector Optics as an example.

① Loosen the center screw with the wrench and take it off.

② Take off the turret cap.

③ Align the mark ‘0’ on the turret cap with the click marker on the scope.

④ Tighten the center screw with the wrench; Done.

① Loosen the 3 screws on the side of the turret cap with the hex key.

② Take off the turret cap; keep the crews carefully.

③ Align the mark ‘0’ on the turret cap with the click marker on the scope.

④ Tighten all the 3 screws with the hex key; Done.

In addition, in these cases, please don’t forget that you also need to zero and reset the scope again.



1. If you change another gun or scope and re-install the scope.





2. Before you want to use the scope with "zero-stop" function.

(1) Continental 34mm FFP Riflecope series





(The item in the picture above is our Continental 4-24x56 FFP Riflescope

(2) Tourex FFP Riflecope series





(The item in the picture above is our Tourex 6-24x50 FFP Riflescope

(3) Minotaur GenII SFP Riflescope series





 (The item in the picture above is our Minotaur GenII12-60x60 SFP Riflescope

Now there must be many customers want to know more about zero-stop and want to use the scope with this function.

We will introduce this in detail in our next blog.

If you have any questions, welcome to contact us by the e-mail address below. <retail@vectoroptics.com>

Welcome visit our website (www.vector2007.com) to follow us persistently (enter our homepage → find “RESOURCES” → Blogs)!


Leave a comment

Comments will be approved before showing up.


Also in Blogs

When you practice dry fire, do you remember to use snap caps?
When you practice dry fire, do you remember to use snap caps?

September 28, 2021 4 min read 1 Comment

Dummy round and snap caps often appear at the same time and they can use interchangeably. Both of them belong to training ammunition. So when the shooters train by using these, this will be safe.

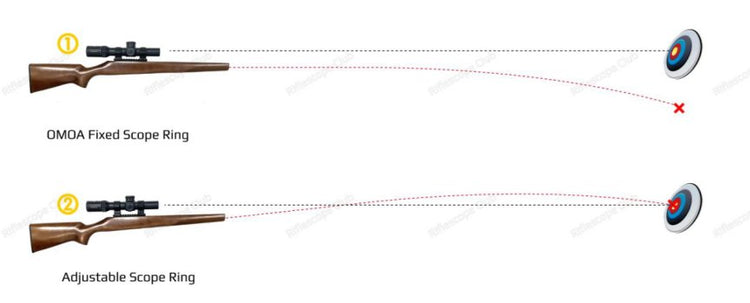

How to Resolve Scope Elevation Not Enough for Your .22 LR or Airgun? Try The Adjustable Scope Ring.
