Feature
• Optimized for Long-Range Shooting: MPX1 Reticle with 0.1 MIL Center Dot & BDC for Precise Aiming, Ideal for Varmint Hunting
• Enhanced Adjustment Range: 30mm Tube Diameter Provides 17.5 MIL Elevation with 1/10 MIL Clicks for Precise Control
• Clear Imaging: 56mm Objective Lens with Fully Multi-Coated (FMC) Lenses Maximizes Light Transmission for Clear Imaging

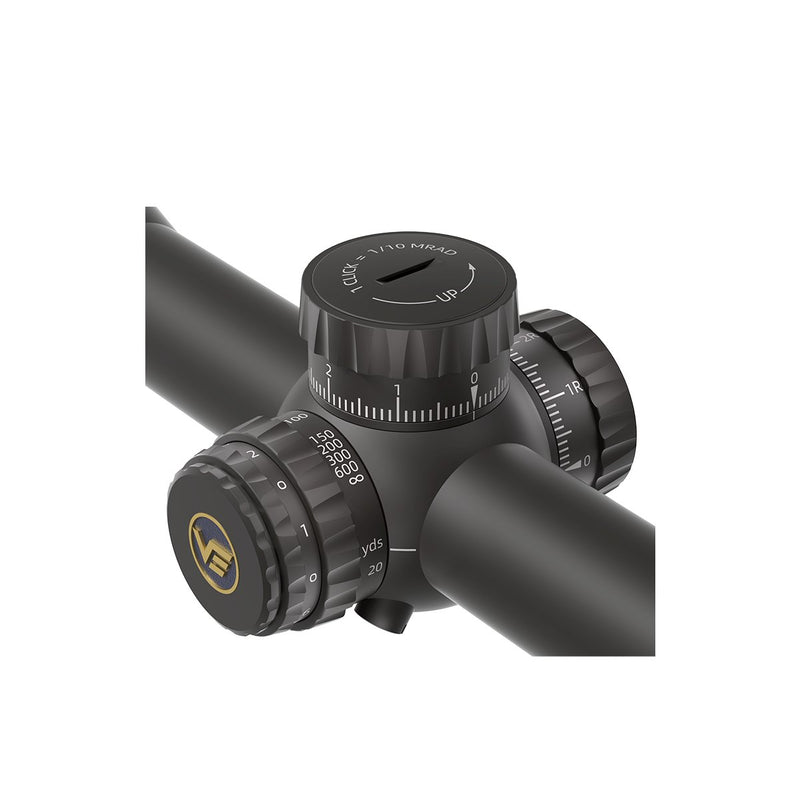

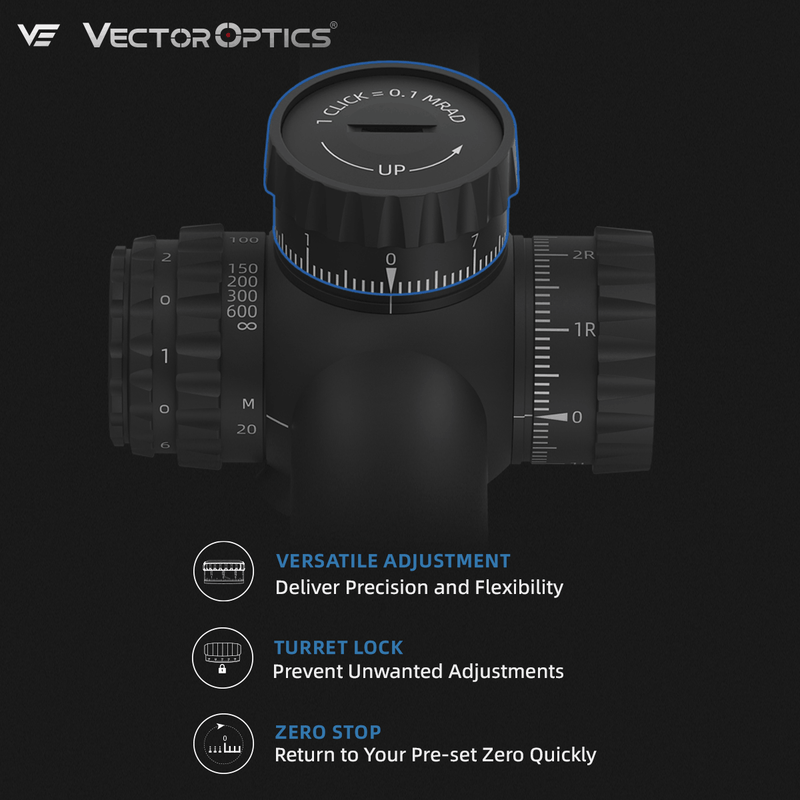

• Zero Stop and Turret Lock: Effortless Return to Pre-Set Zero and Prevention of Unwanted Adjustments for Consistent Accuracy
• 6-Level Red Illumination: Adjustable Brightness for Clear Targeting in Various Light Conditions from Dawn to Dusk

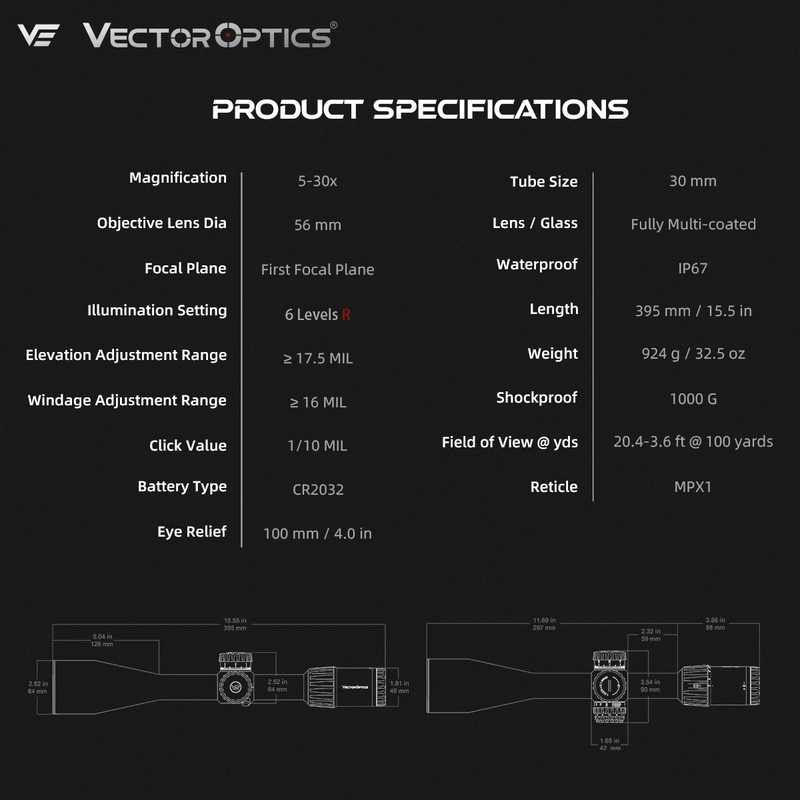

Specification
| Specification | Details |
|---|---|
| Magnification: | 5-30x |
| Objective Lens Dia: | 56 mm |
| Focal Plane: | First Focal Plane |
| Eye Relief: | 95 mm / 3.74 in |
| Lens Coating: | Fully Multi-coated |
| Linear Field of View @ 100 yd: | 20.4-3.6 ft @ 100 yards |
| Linear Field of View @ 100 m: | 6.8-1.2 m @ 100 meters |
| Angular Field of View: | 3.89-0.68 ° |
| Reticle: | MPX1 |
| Tube Dia: | 30 mm |
| Side Focus: | 20 yards to Infinity |
| Click Value: | 1/10 MIL |
| Turret Function: | Zero Stop, Turret Lock |
| Elevation Adjustment Range: | >17.5 MIL |
| Windage Adjustment Range: | >16 MIL |
| Diopter Compensation: | -2 to +2 |
| Illumination Setting: | 6 Gears, On/Off Switch |
| Battery Type (Not Include): | CR2032 (not include) |
| Battery Life: | N/A |
| Waterproof: | IP67 |
| Fogproof: | Nitrogen Filled |
| Shockproof: | 1000 G |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Length: | 394.5 mm / 15.53 in |
| Weight: | 924 g / 32.5 oz |
| Items in the Package: | User Manual, Cleaning Cloth, Plastic Wrench, Rubber Lens Cover, Sunshade, Power Throw Lever, Hex Keys, etc. |
Video

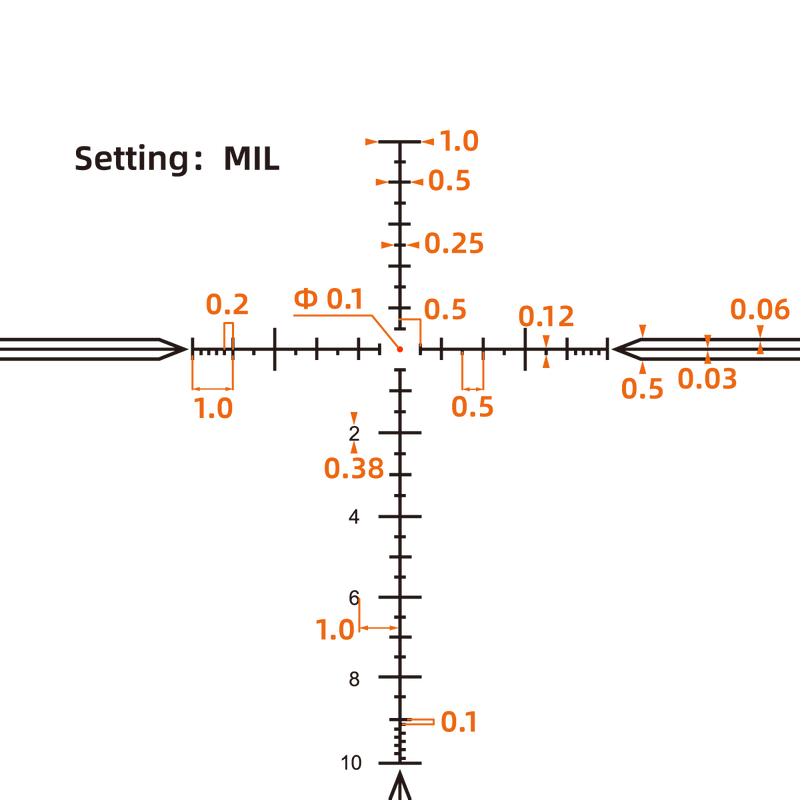

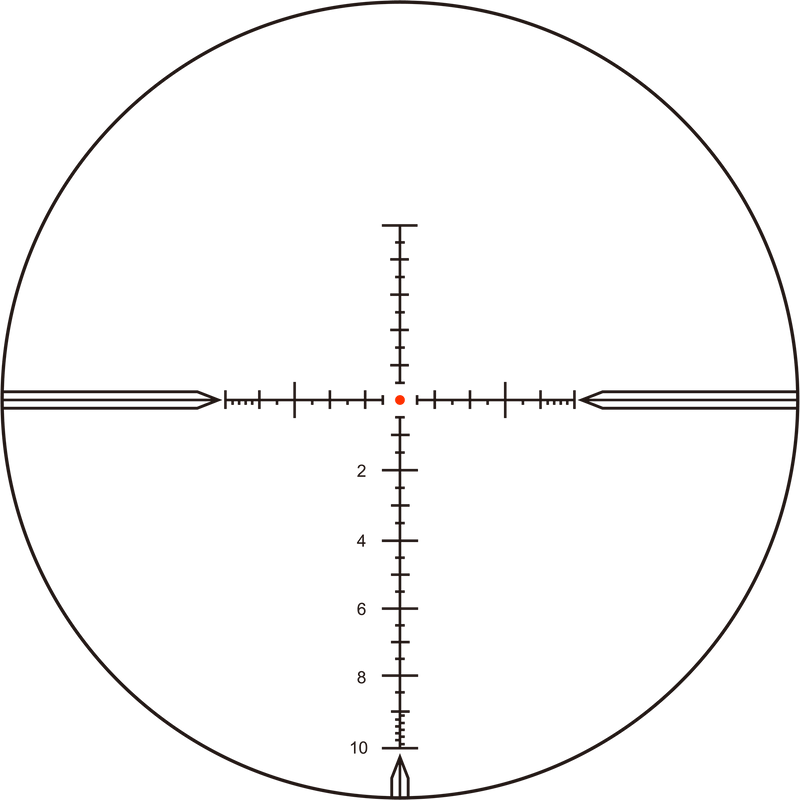

Reticle

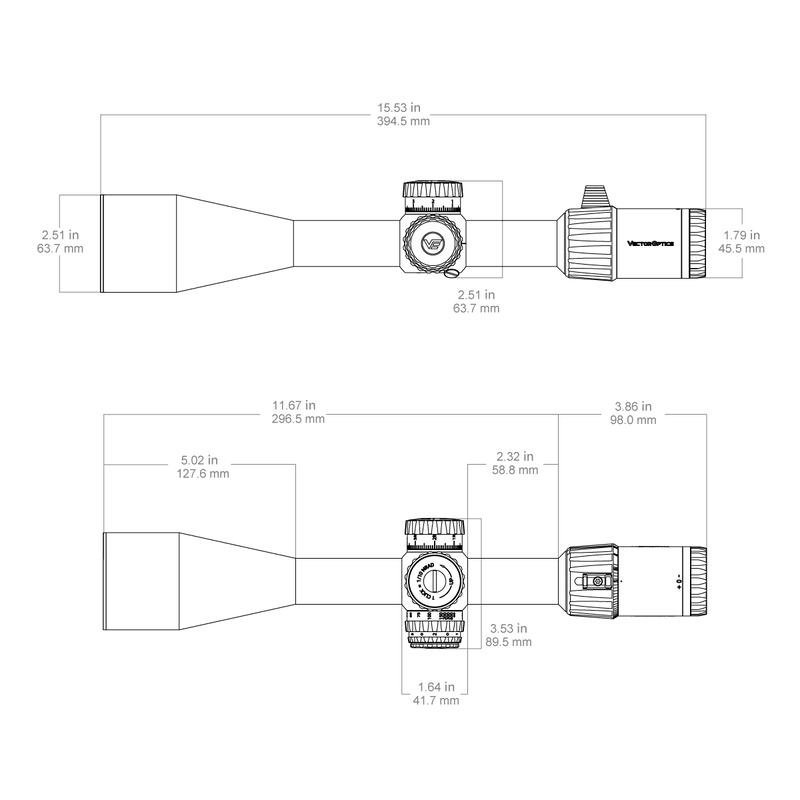

Size
Compatible Gun Type
For Long-Range Shooting: Tikka T1x / T3 / T3x (.22LR / .308), Remington 700 / 783 (.223), Sako, Anschutz, Howa, FX Impact M3 / MKII, AirForce Texan, CZ 457, Accuracy International, Cadex, Sako TRG, Steyr, etc.
